Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .

Fig 1: Opening Rear Door Scuff Plate Cover
Courtesy of MAZDA MOTORS CORP.
Open the rear door scuff plate cover.

Fig 2: Removing Rear Door Scuff Plate
Courtesy of MAZDA MOTORS CORP.
Remove the rear door scuff plate.
1. Remove the two pin-type retainers.
2. Remove the scuff plate.
If equipped, remove the retractable cargo cover.

Fig 3: Removing Liftgate Trim Panel
Courtesy of MAZDA MOTORS CORP.
Remove the pin-type retainers and the liftgate (scuff plate) trim panel.
Position the liftgate weatherstrip aside.

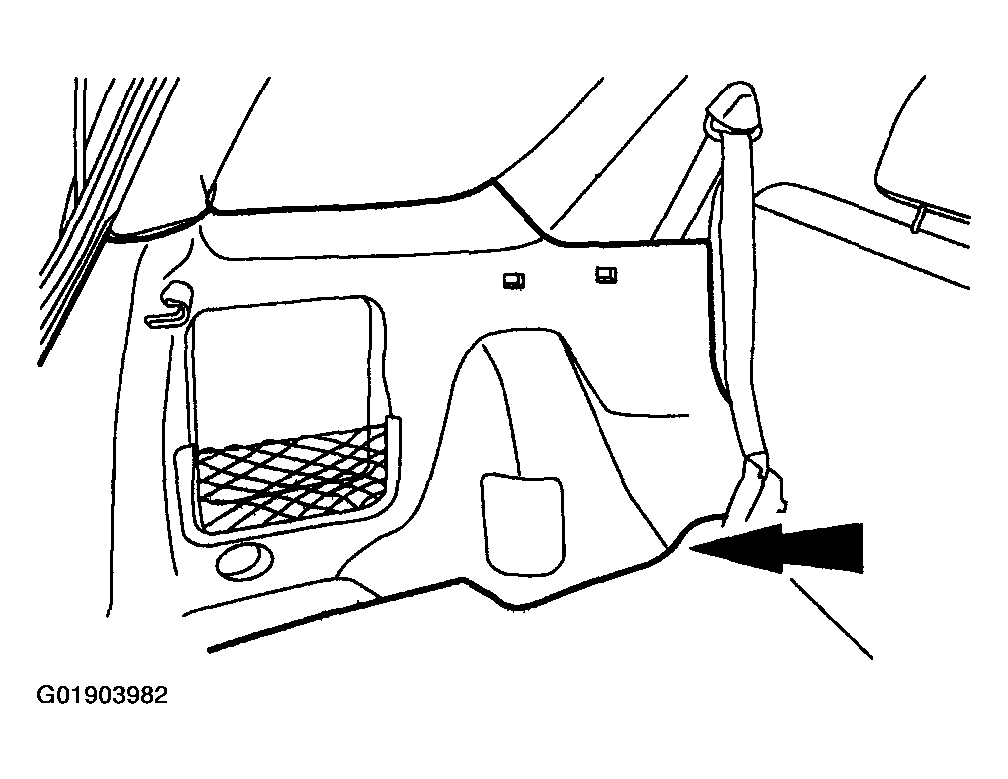

Fig 4: Removing Rear Quarter Trim Panel
Courtesy of MAZDA MOTORS CORP.
Remove the rear quarter trim panel.
1. If equipped, remove the cargo net hold-down.
2. Disconnect the rear power point electrical connector.

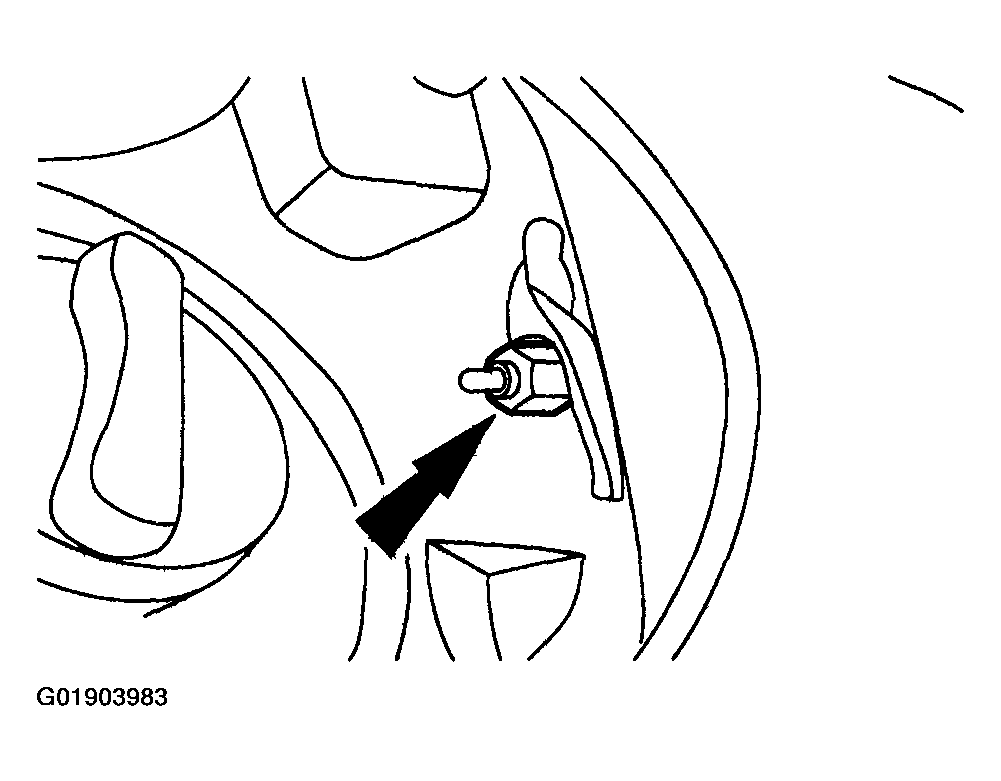

  Fig 5: Removing Fuel Filler Door Latch Nut
  Courtesy of MAZDA MOTORS CORP.
Remove the fuel filler door latch nut.

Fig 6: Removing Fuel Filler Door Latch
Courtesy of MAZDA MOTORS CORP.
Remove the fuel filler door latch.
1. Release the cable conduit.
2. Disconnect the cable.
To install, reverse the removal procedure.
