Seat Track - Driver Seat: Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment. Failure to follow these instructions may result in personal injury.
WARNING:
  • Carry a live side air bag module with the air bag and tear seam pointed away from your body. This will reduce the risk of injury in the event of an accidental deployment. Failure to follow these instructions may result in personal injury.
WARNING:
  • Do not set a live side air bag module down on the cover tear seam. This will reduce the risk of injury in the event of an accidental deployment. Failure to follow these instructions may result in personal injury.
WARNING:
  • After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterward. Failure to follow these instructions may result in personal injury.
WARNING:
  • Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury. Failure to follow these instructions may result in personal injury.
WARNING:
  • Vehicle sensor orientation is critical for proper system operation. If a vehicle equipped with an air bag supplemental restraint system (SRS) is involved in a collision, inspect the sensor mounting bracket and wiring pigtail for deformation. Replace and properly position the sensor or any other damaged supplemental restraint system (SRS) components whether or not the air bag is deployed. Failure to follow these instructions may result in personal injury.
WARNING:
  • To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

    Refer to the AIR BAG RESTRAINT SYSTEM COMPONENT LOCATIONS to determine location of the front air bag sensors .

    The side air bag sensors are located at or near the base of the B-pillar.

    To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped). Failure to follow these instructions may result in personal injury.

WARNING:
  • The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
NOTE:
  • Restraint system diagnostic tools must be installed under the seats in the side air bag to floor connector.
NOTE:
  • Diagnostics or repairs are not to be carried out on a side air bag system or a safety belt pretensioner (if equipped) with the seat in the vehicle. Prior to attempting to diagnose/repair the side air bag system or a safety belt pretensioner (if equipped) the seat must be removed from the vehicle and the restraint system diagnostic tool must be installed in side air bag connector at the floor connector. The restraint system diagnostic tool must be removed prior to operating the vehicle.
NOTE:
  • Diagnostics may be carried out on seat systems other than the side air bag system or a safety belt pretensioner (if equipped) (lumbar, climate controlled, heated, power seat track) with the seat installed in the vehicle as long as the restraint system diagnostic tool is installed under the seat in the side air bag to floor connector.
NOTE:
  • After diagnosing/repairing a seat system the restraint system diagnostic tool must be removed before operating the vehicle.
NOTE:
  • A repair is made by installing a new part only. If a new part is installed and the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
NOTE:
  • If a side air bag deployment took place, a new seatback pad, trim cover, and side air bag module must be installed. A new seatback frame should be installed if necessary.

All vehicles

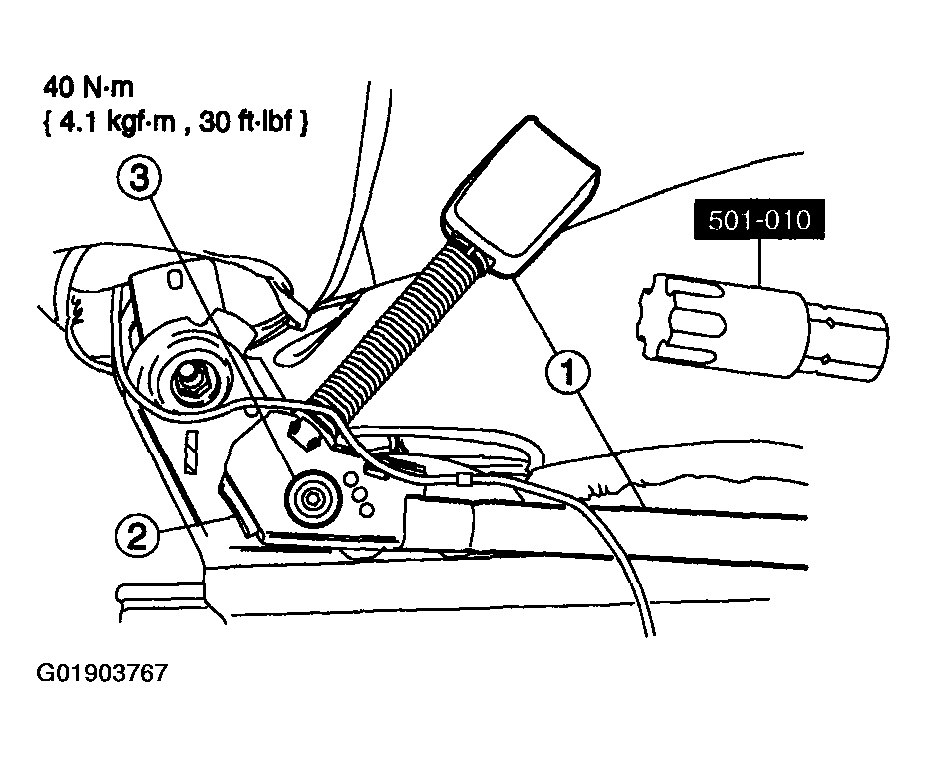

Fig 1: Installing Safety Belt Buckle And Pretensioner
G01903767Courtesy of MAZDA MOTORS CORP.
  1. Install the safety belt buckle and pretensioner.
    1. Position the safety belt buckle and pretensioner to the seat cushion frame.
    2. Align and install the anti-rotation tab of the safety belt buckle and pretensioner to the slot in the seat cushion frame.
    3. Using the special tool, install the bolt.

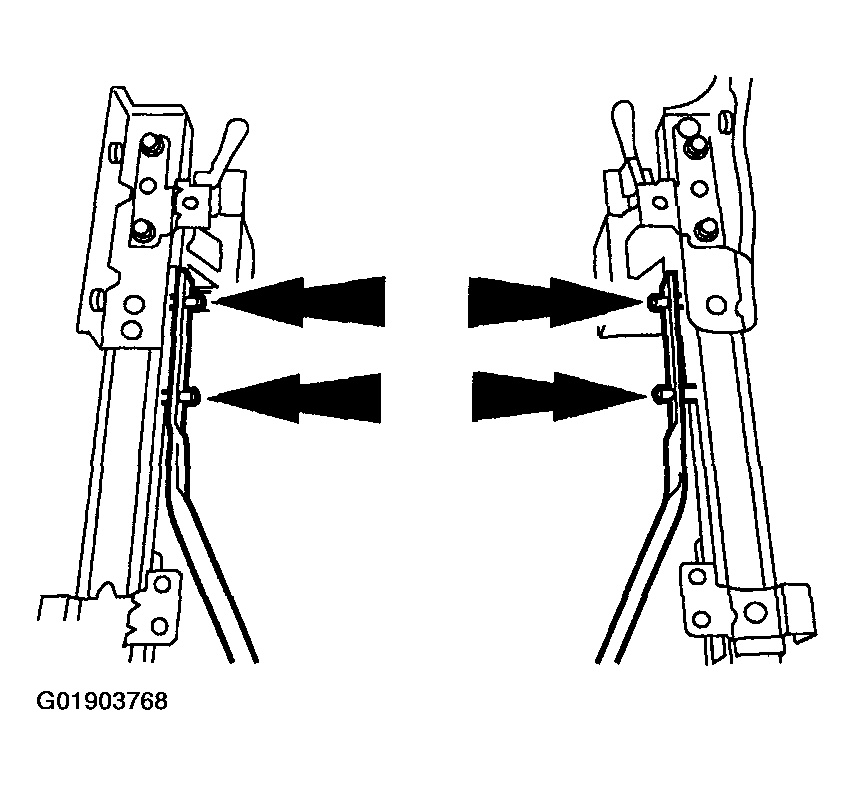

      Fig 2: Installing Seat Adjuster Pins
      G01903768Courtesy of MAZDA MOTORS CORP.
  2. If equipped with manual seats, install the seat adjuster & connect the seat adjuster pins.

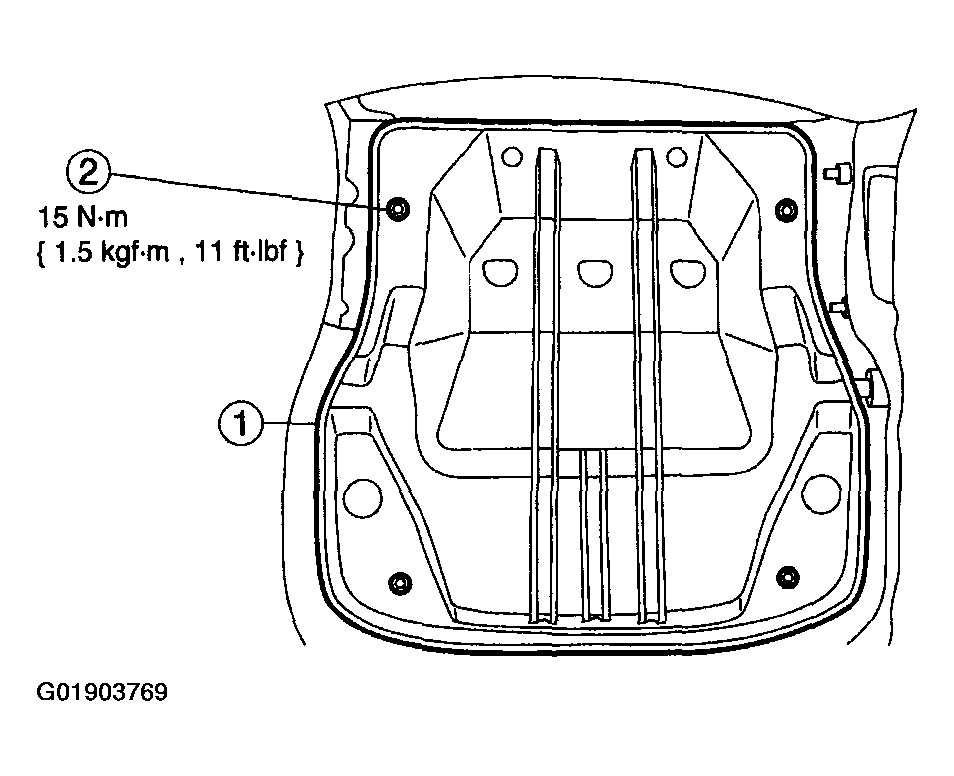

    Fig 3: Installing Front Seat Cushion Pan
    G01903769Courtesy of MAZDA MOTORS CORP.
  3. Install the front seat cushion pan.
    1. Position the front seat cushion pan.
    2. Install the bolts.

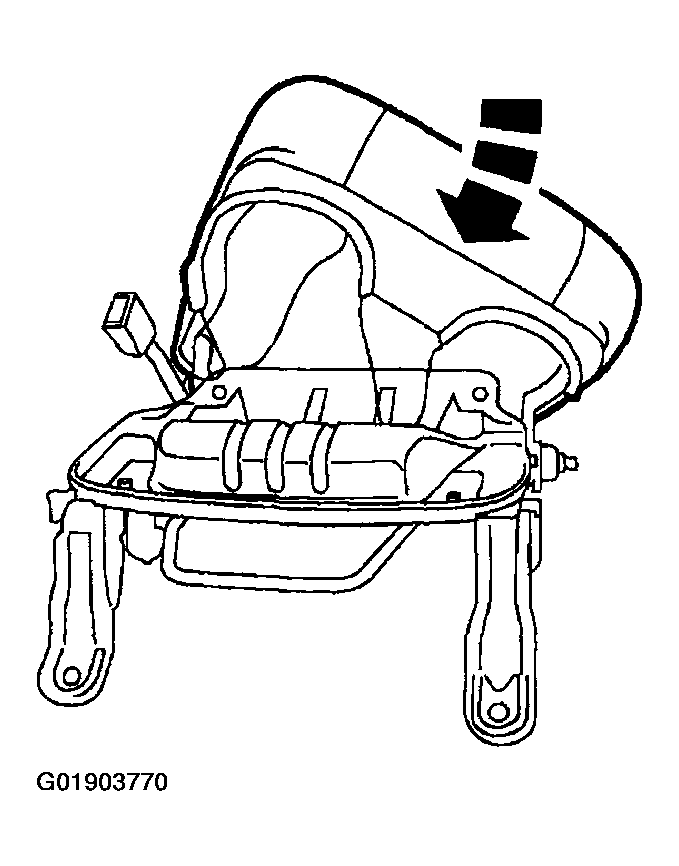

      Fig 4: Installing Front Seat Cushion Trim And Pad To Front Seat Cushion Frame
      G01903770Courtesy of MAZDA MOTORS CORP.
  4. Install the front seat cushion trim and pad to the front seat cushion frame, if equipped with heated seats, connect the seat cushion heated grid electrical connector to the seat wiring harness.

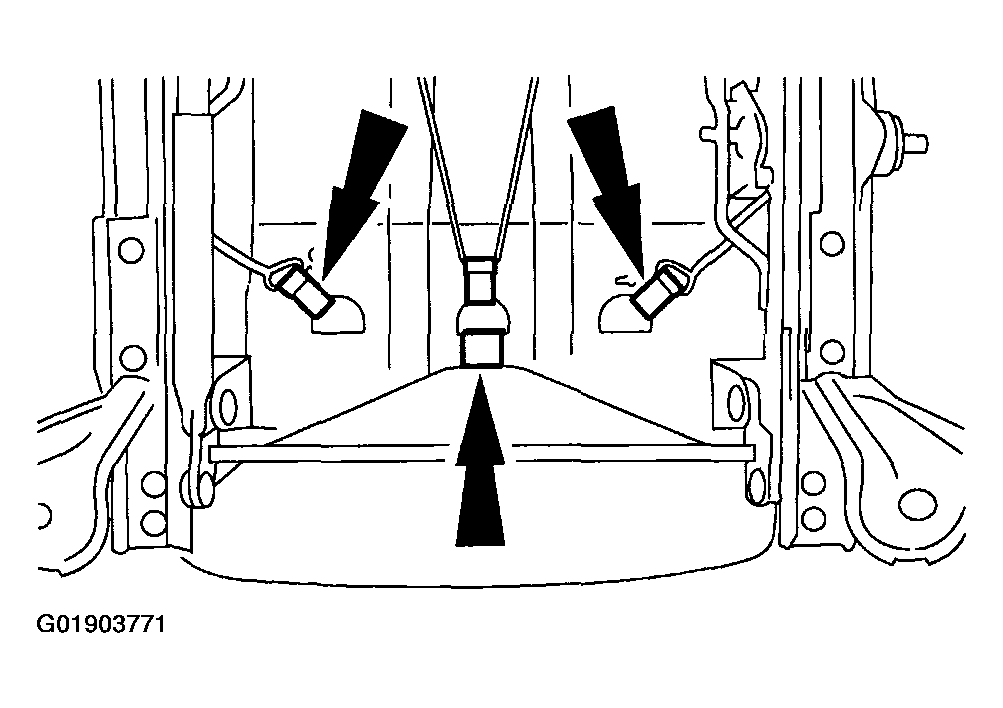

    Fig 5: Connecting Seat Cushion Trim Cover J-Clips
    G01903771Courtesy of MAZDA MOTORS CORP.
  5. Connect the seat cushion trim cover J-clips.

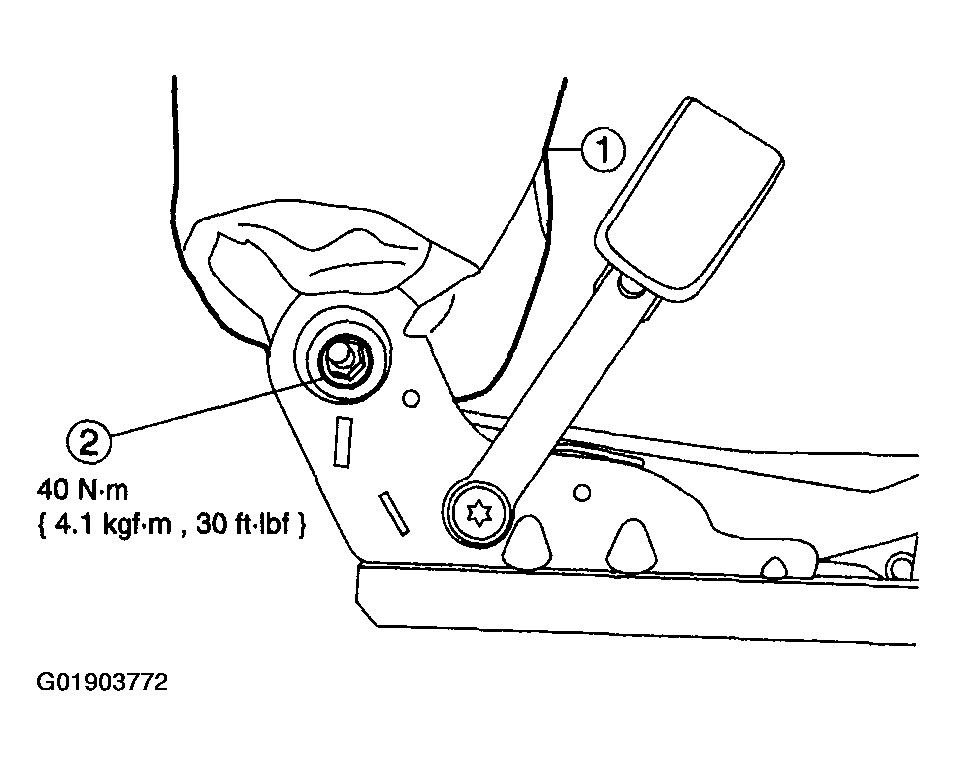

    Fig 6: Installing Front Seat Backrest
    G01903772Courtesy of MAZDA MOTORS CORP.
  6. Install the front seat backrest.
    1. Install the backrest.
    2. Install the pivot nut.

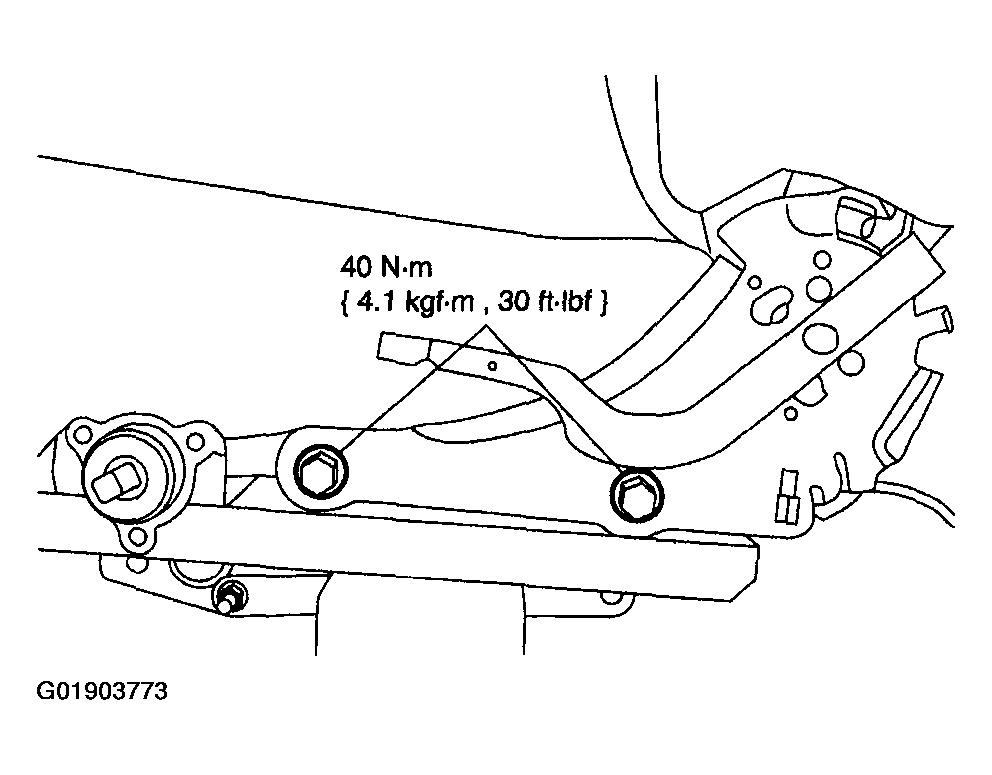

      Fig 7: Installing Front Seat Backrest Bolts
      G01903773Courtesy of MAZDA MOTORS CORP.
  7. Install the front seat backrest bolts, if equipped with heated seats, connect the backrest heated grid electrical connector.
    Fig 8: Installing Inboard Seat Cushion Side Shield
    G01903774Courtesy of MAZDA MOTORS CORP.
  8. Install the inboard seat cushion side shield.

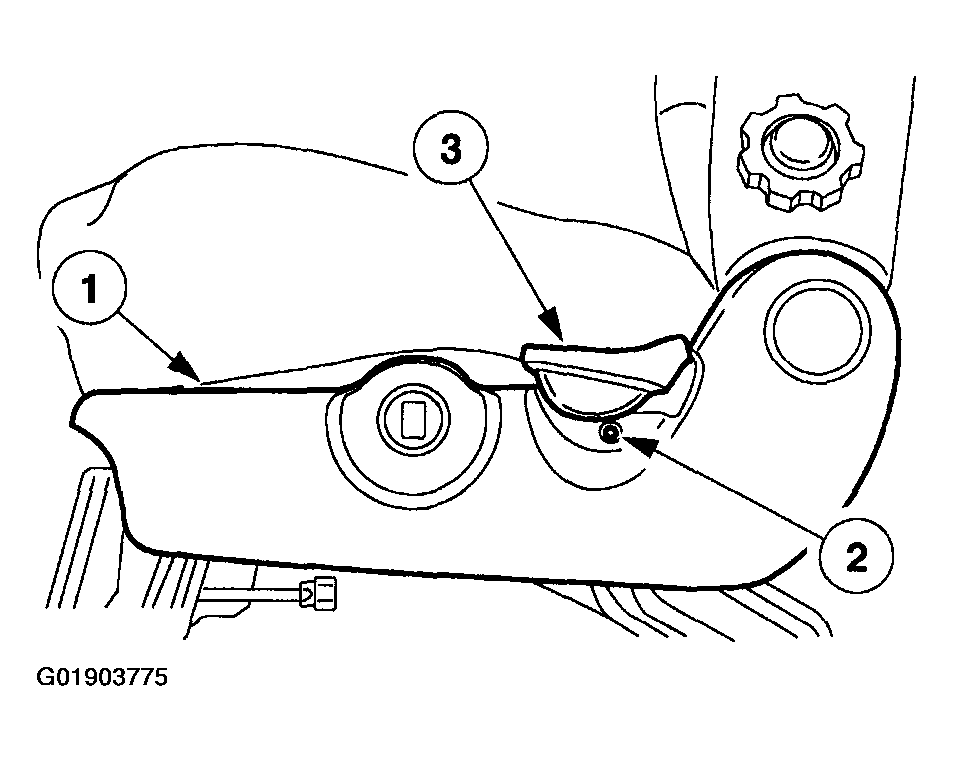

    Fig 9: Installing Outboard Seat Cushion Side Shield
    G01903775Courtesy of MAZDA MOTORS CORP.
  9. Install the outboard seat cushion side shield.
    1. Install the shield, if equipped with a power/heated seat, connect the electrical connector.
    2. Install the screw.
    3. Install the seat backrest handle.
      Fig 10: Installing Seat Height Adjustment Control
      G01903776Courtesy of MAZDA MOTORS CORP.
  10. If equipped, install the seat height adjustment control.

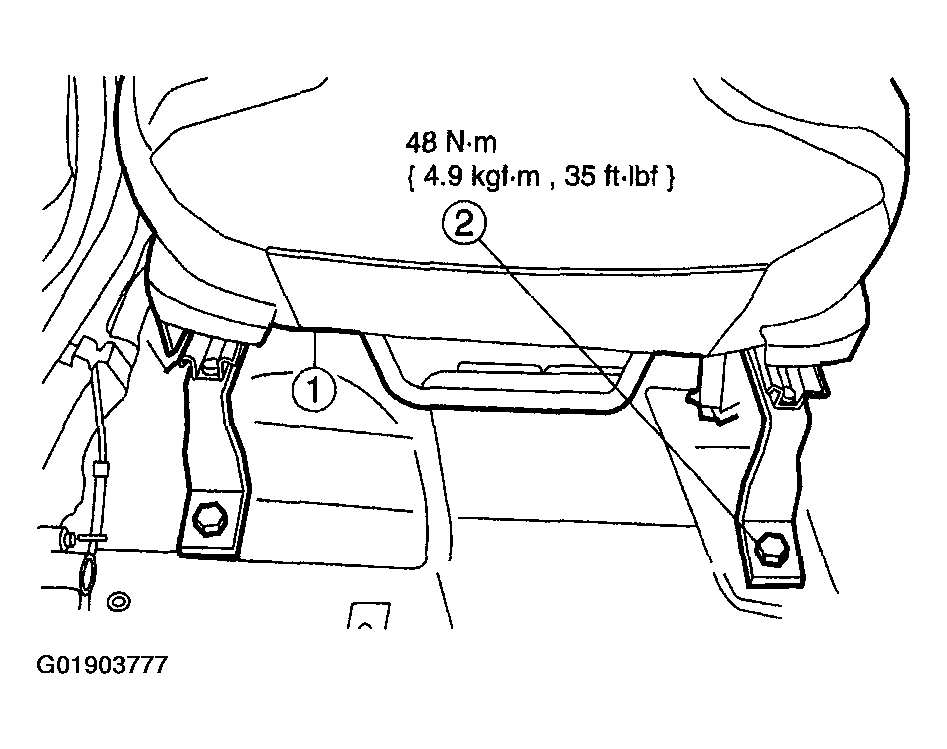

    Fig 11: Installing Driver Seat
    G01903777Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Use care when handling the seat and track assembly. Dropping the assembly or sitting on a seat not secured in the vehicle may result in damaged components.
  11. Install the driver seat.
    1. Position the driver seat, if equipped with power seats, connect the electrical connector.
    2. Install the seat track to floor bolts.
  12. If equipped with power seats, connect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .
  13. Position the driver seat forward.

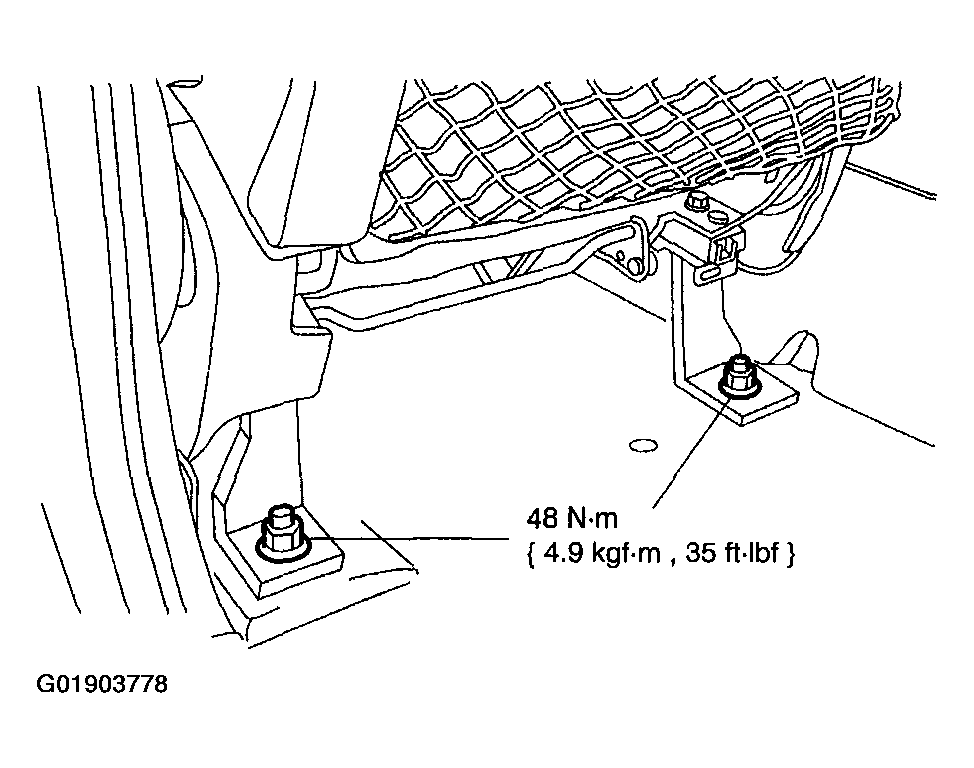

    Fig 12: Installing Seat Track To Floor Nuts
    G01903778Courtesy of MAZDA MOTORS CORP.
  14. Install the seat track to floor nuts.
  15. If equipped with power seats, disconnect the battery ground cable and wait one minute. For additional information, refer to BATTERY DISCONNECT .

    Vehicles With Side Air Bag

    Fig 13: Removing Special Tool From Driver Seat Side Air Bag Module Body Harness Electrical Connector
    G01903779Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
  16. Remove the special tool from the driver seat side air bag module body harness electrical connector.
    Fig 14: Connecting Driver Seat Side Air Bag Module Electrical Connector
    G01903780Courtesy of MAZDA MOTORS CORP.
  17. Connect the driver seat side air bag module electrical connector.

    All Vehicles

    Fig 15: Removing Special Tool From Driver Seat Side Safety Belt Pretensioner Body Harness Electrical Connector
    G01903781Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
  18. Remove the special tool from the driver seat side safety belt pretensioner body harness electrical connector.
    Fig 16: Connecting Driver Seat Safety Belt Pretensioner Electrical Connector
    G01903782Courtesy of MAZDA MOTORS CORP.
  19. Connect the driver seat safety belt pretensioner electrical connector.
  20. Connect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .
  21. With the remaining special tools still in place, prove out the air bag system. For additional information, refer to SYSTEM OPERATION CHECK .
  22. Disconnect the battery ground cable and wait at least one minute. For additional information, refer to BATTERY DISCONNECT .
    Fig 17: Removing Special Tool From Passenger Seat Safety Belt Pretensioner Body Harness Electrical Connector
    G01903783Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
  23. Remove the special tool from the passenger seat safety belt pretensioner body harness electrical connector.
    Fig 18: Connecting Passenger Seat Safety Belt Pretensioner Electrical Connector
    G01903784Courtesy of MAZDA MOTORS CORP.
  24. Connect the passenger seat safety belt pretensioner electrical connector.

    Vehicles With Side Air Bag

    Fig 19: Removing Special Tool From Passenger Seat Side Air Bag Module Body Harness Electrical Connector
    G01903785Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
  25. Remove the special tool from the passenger seat side air bag module body harness electrical connector.
    Fig 20: Connecting Passenger Seat Side Air Bag Module Electrical Connector
    G01903786Courtesy of MAZDA MOTORS CORP.
  26. Connect the passenger seat side air bag module electrical connector.

    All Vehicles

    Fig 21: Removing Special Tool From Instrument Panel Harness Side Of Passenger Air Bag Module Electrical Connector
    G01903787Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
  27. Remove the special tool to the instrument panel harness side of the passenger air bag module electrical connector.

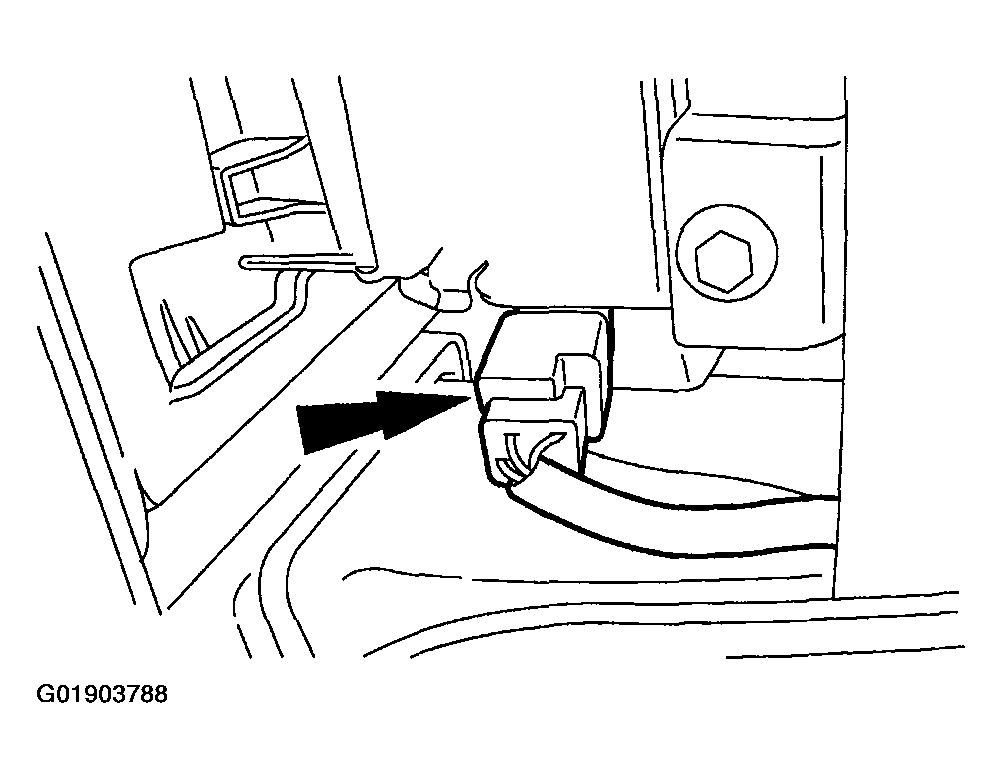

    Fig 22: Connecting Passenger Air Bag Module Electrical Connector
    G01903788Courtesy of MAZDA MOTORS CORP.
  28. Connect the passenger air bag module electrical connector.
  29. Raise the glove compartment.
    • Depress the locking tabs.
      Fig 23: Removing Special Tool From Steering Column Harness Side Of Driver Air Bag Module Electrical Connector
      G01903789Courtesy of MAZDA MOTORS CORP.
      WARNING:
      • The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
  30. Remove the special tool from the steering column harness side of the driver air bag module electrical connector.

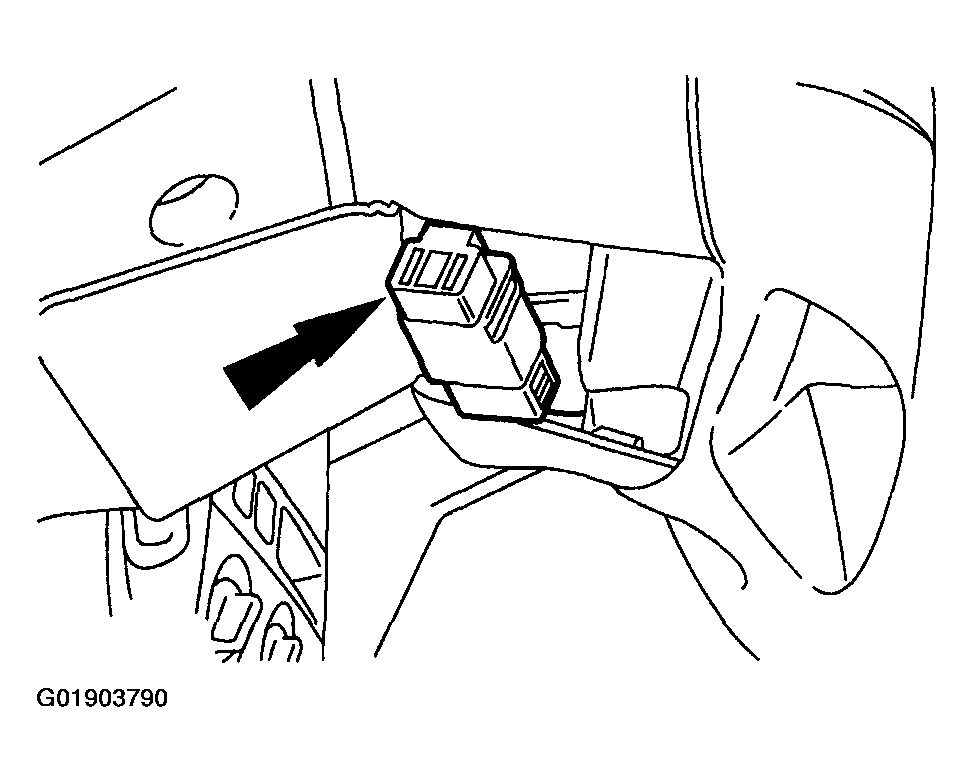

    Fig 24: Connecting Driver Air Bag Module Electrical Connector
    G01903790Courtesy of MAZDA MOTORS CORP.
  31. Connect the driver air bag module electrical connector.

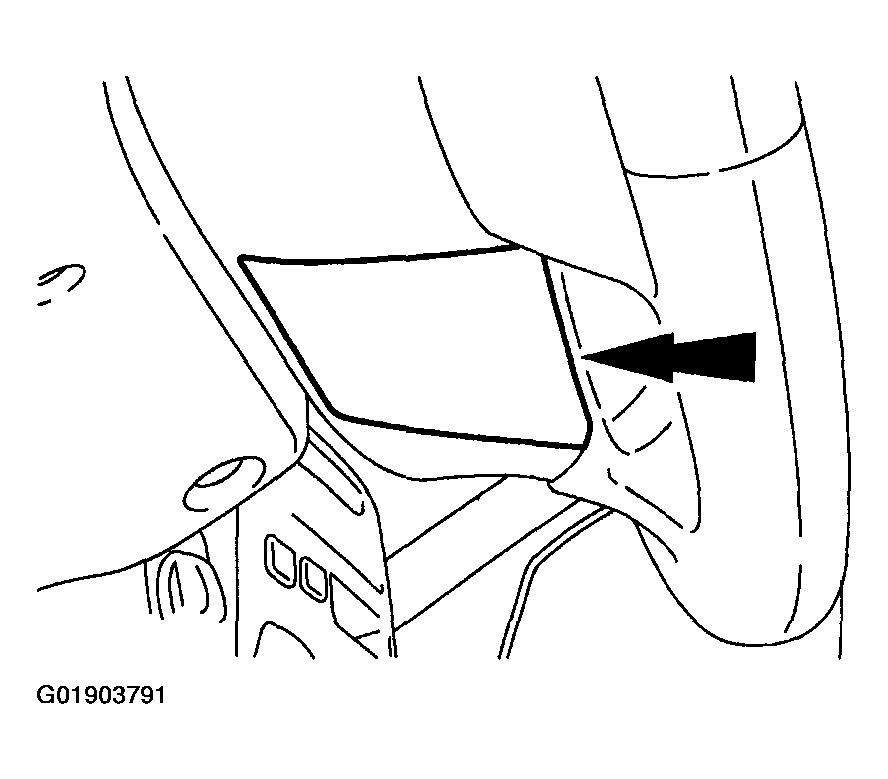

    Fig 25: Installing Driver Air Bag Connector Access Cover
    G01903791Courtesy of MAZDA MOTORS CORP.
  32. Install the driver air bag connector access cover.
  33. Connect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .
  34. Prove out the air bag system. For additional information, refer to SYSTEM OPERATION CHECK .
  35. Check the restraint system for correct operation.
