Rear Seat Backrest - Split Bench: Removal

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The 40% rear seat backrest must be removed before the 60% rear seat backrest.

40% rear seat backrest

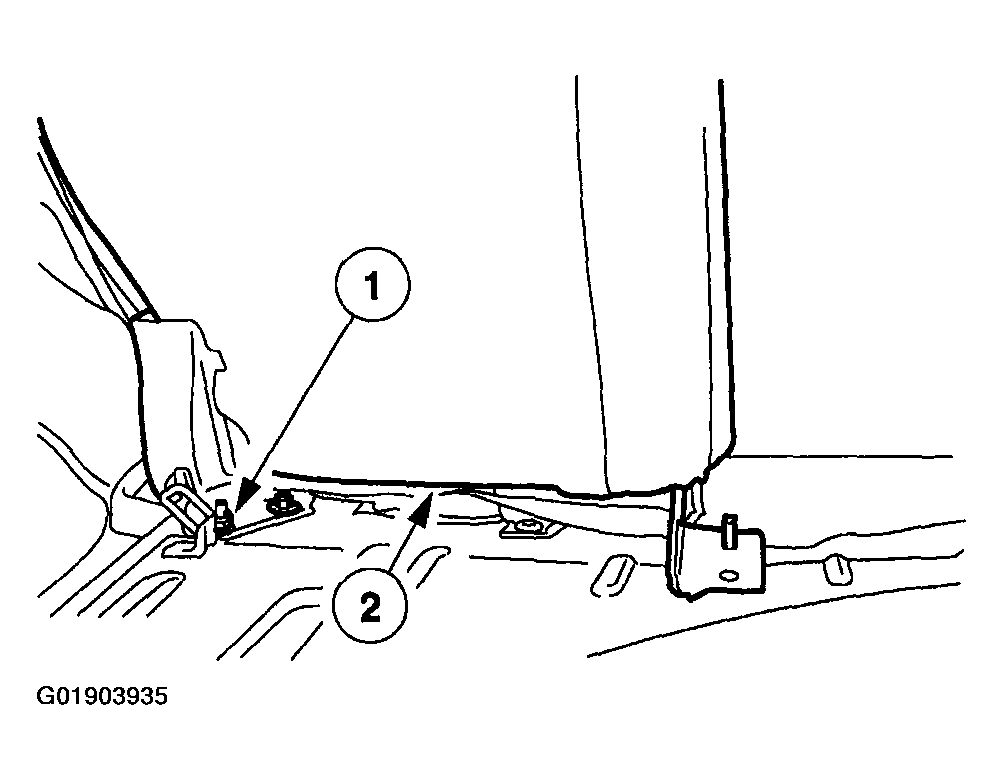

Fig 1: Removing 40% Rear Seat Backrest

Courtesy of MAZDA MOTORS CORP.

Remove the 40% rear seat backrest.
1. Remove the nuts and bolts.
2. Remove the backrest.
  60% rear seat backrest

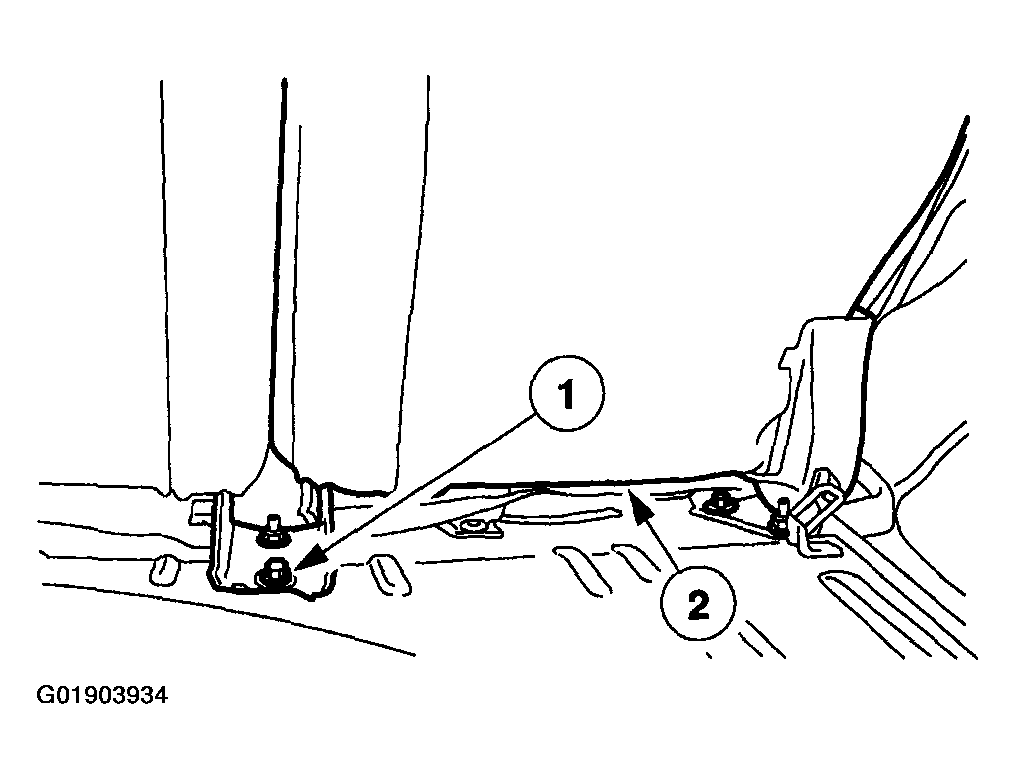

  Fig 2: Removing 60% Rear Seat Backrest
  Courtesy of MAZDA MOTORS CORP.
Remove the 60% rear seat backrest.
1. Remove the nut and bolt.
2. Remove the backrest.
