Rear Seat Backrest - Split Bench: Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The 60% rear seat backrest must be installed before the 40% rear seat backrest.

60% rear seat backrest

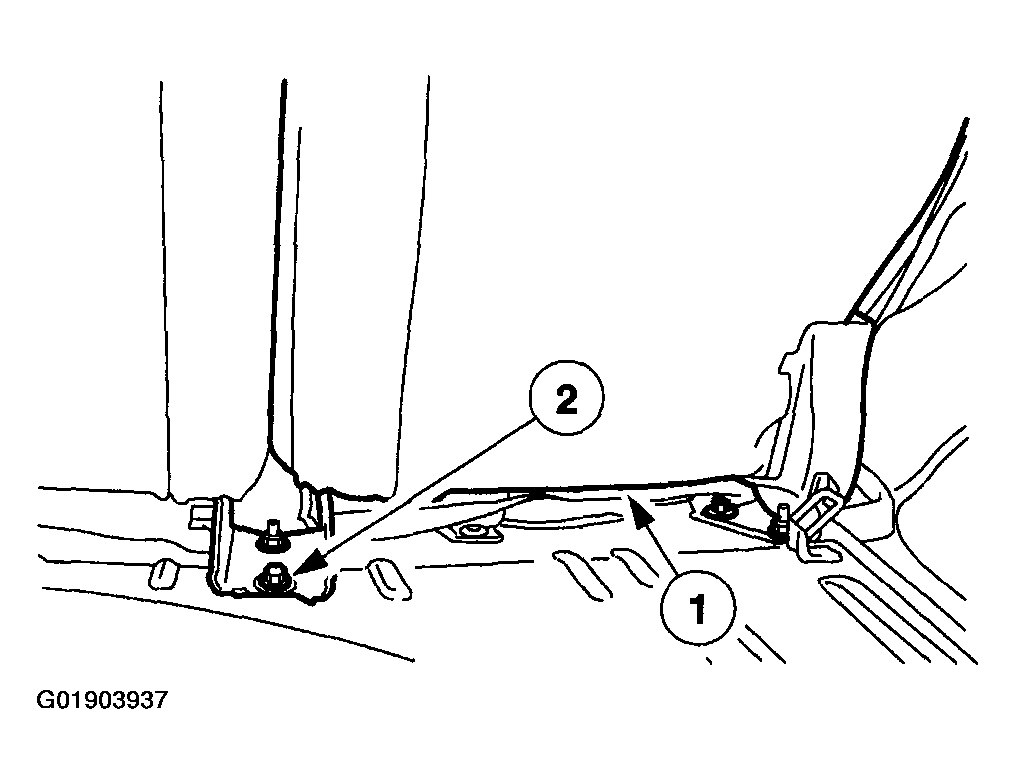

Fig 1: Installing 60% Rear Seat Backrest

Courtesy of MAZDA MOTORS CORP.

NOTE:

Do not tighten the nut and bolt at this time.

Install the 60% rear seat backrest.
1. Install the rear seat backrest.
2. Install the nut and bolt.
40% rear seat backrest

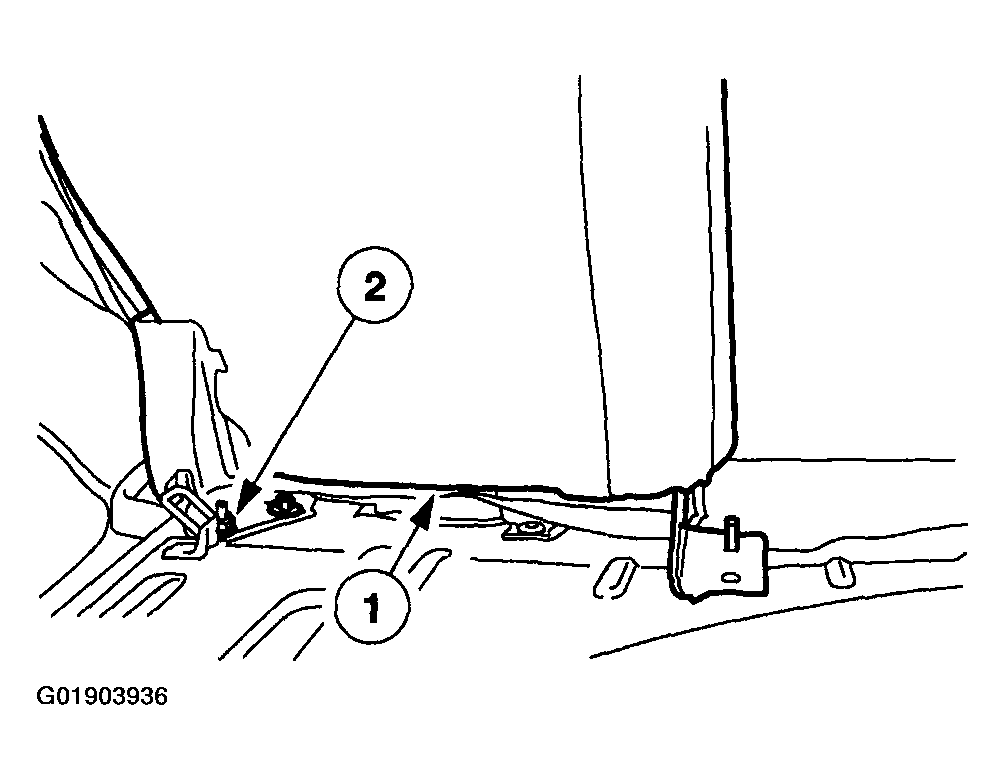

Fig 2: Installing 40% Rear Seat Backrest
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Do not tighten the nuts and bolts at this time.
Install the 40% rear seat backrest.
1. Install the rear seat backrest.
2. Install the nuts and bolts.
60/40% rear seat backrest

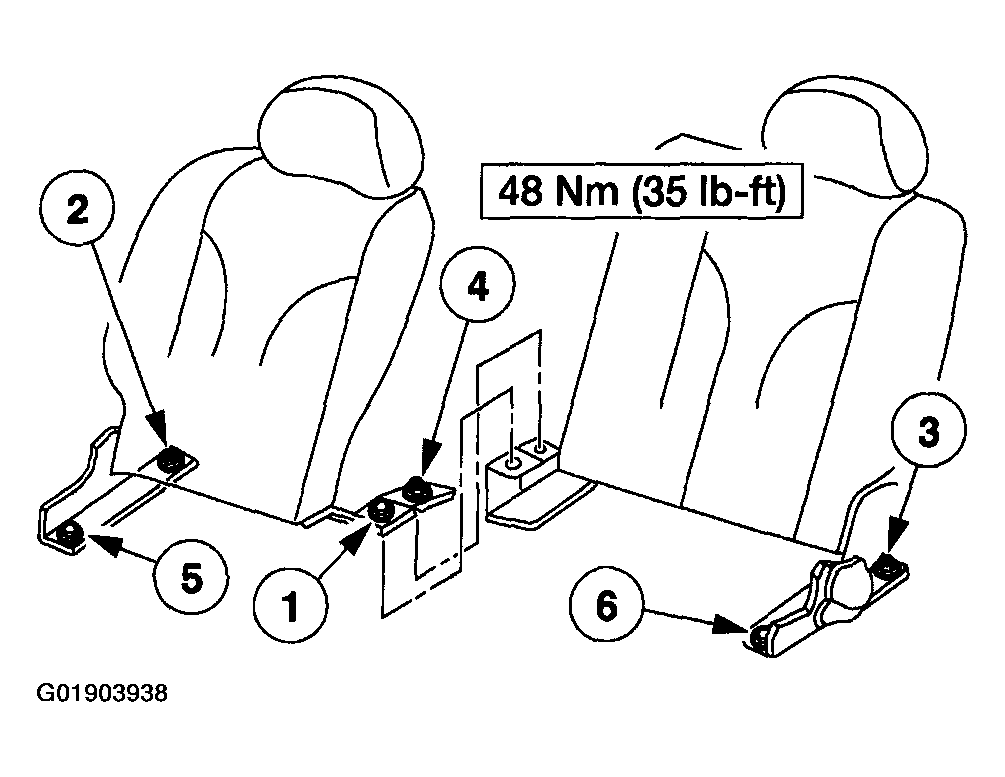

Fig 3: Tightening 60/40% Rear Seat Backrest Nuts And Bolts
Courtesy of MAZDA MOTORS CORP.
Tighten the 60/40% rear seat backrest nuts and bolts in the sequence shown.
40% Rear Seat Backrest

Fig 4: Tightening 40% Rear Seat Backrest Nuts And Bolts
Courtesy of MAZDA MOTORS CORP.
Tighten the 40% rear seat backrest nuts and bolts in the sequence shown.
