Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL .

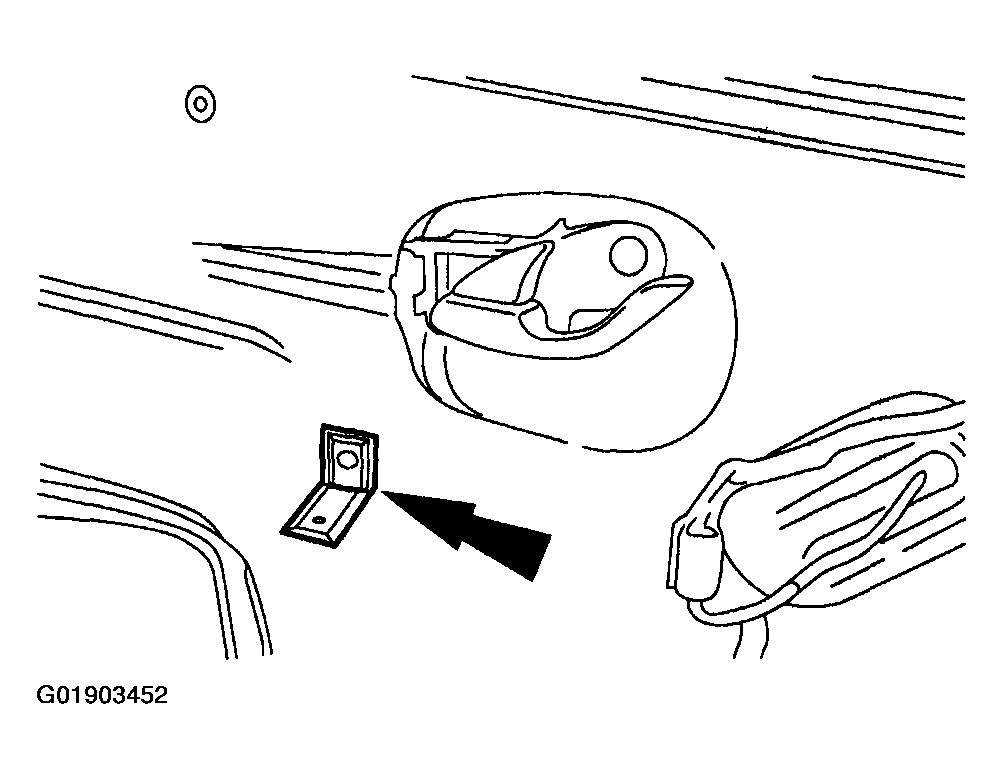

    Fig 1: Removing Screw And Door Trim Panel Bracket
    G01903452Courtesy of MAZDA MOTORS CORP.
  2. Remove the screw and the door trim panel bracket.
  3. Position the water shield aside.
    Fig 2: Removing Front Door Interior Glass Weatherstrip
    G01903453Courtesy of MAZDA MOTORS CORP.
  4. Remove the front door interior glass weatherstrip.

    Vehicles With Power Windows

  5. Connect the window control switch to the door harness.
  6. Connect the battery. Refer to BATTERY DISCONNECT .
  7. Lower the front door window glass to gain access to the screws.

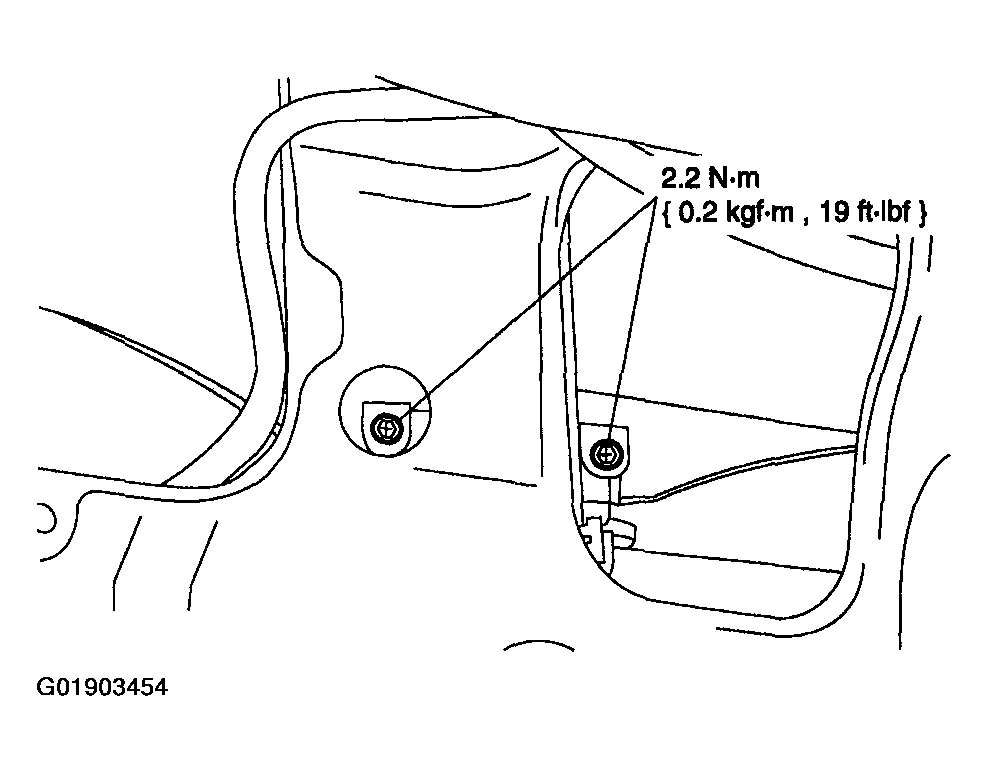

    Fig 3: Removing Front Door Window Glass Screws
    G01903454Courtesy of MAZDA MOTORS CORP.
  8. Remove the front door window glass screws.

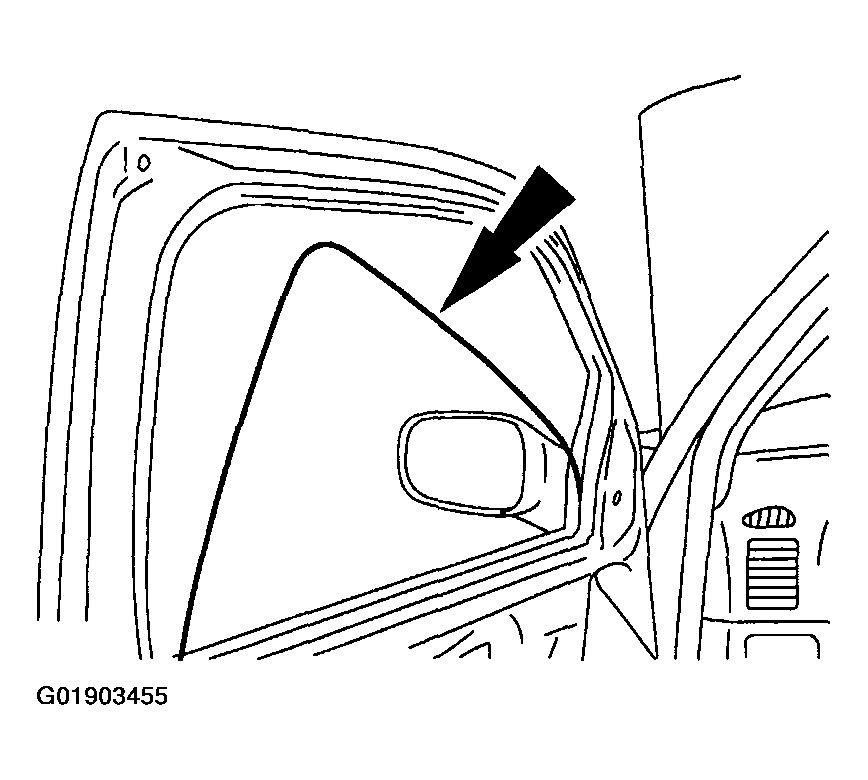

    Fig 4: Removing Front Door Window Glass
    G01903455Courtesy of MAZDA MOTORS CORP.
  9. Remove the front door window glass.
  10. To install, reverse the removal procedure.
