Vehicles with 4WD

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear axle assembly. For additional information, refer to AXLE ASSEMBLY .
All Vehicles
Raise and support the vehicle.

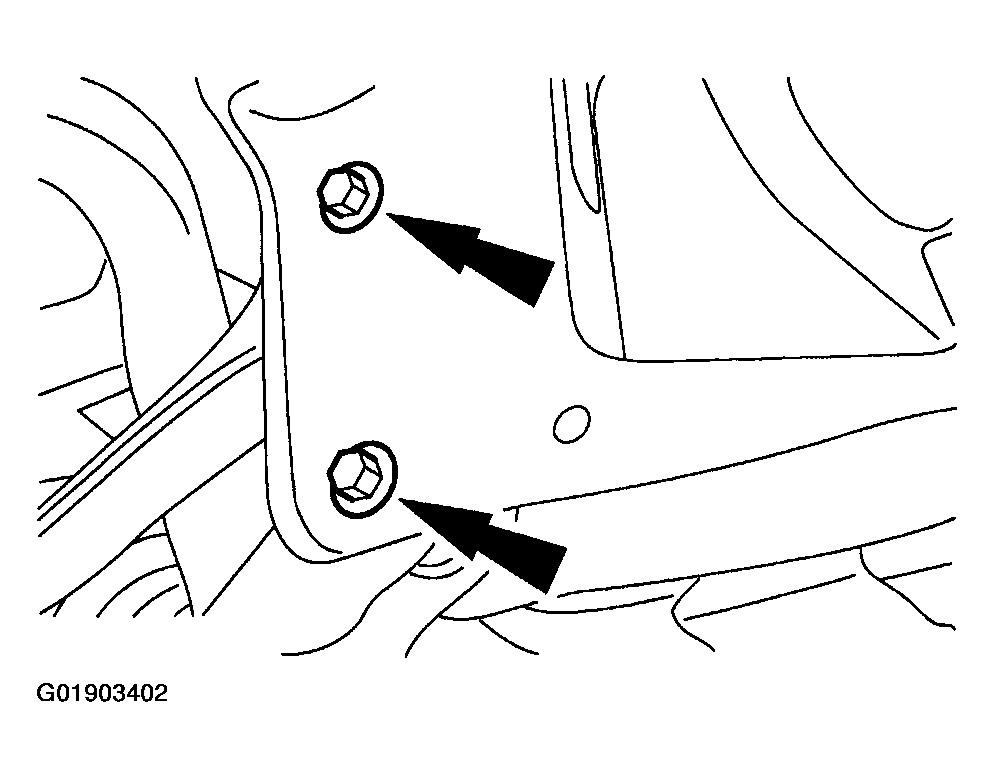

Fig 1: Removing Bolts And Position Rear Control Arm Aside
Courtesy of MAZDA MOTORS CORP.
Remove the four bolts and position the rear control arm aside.

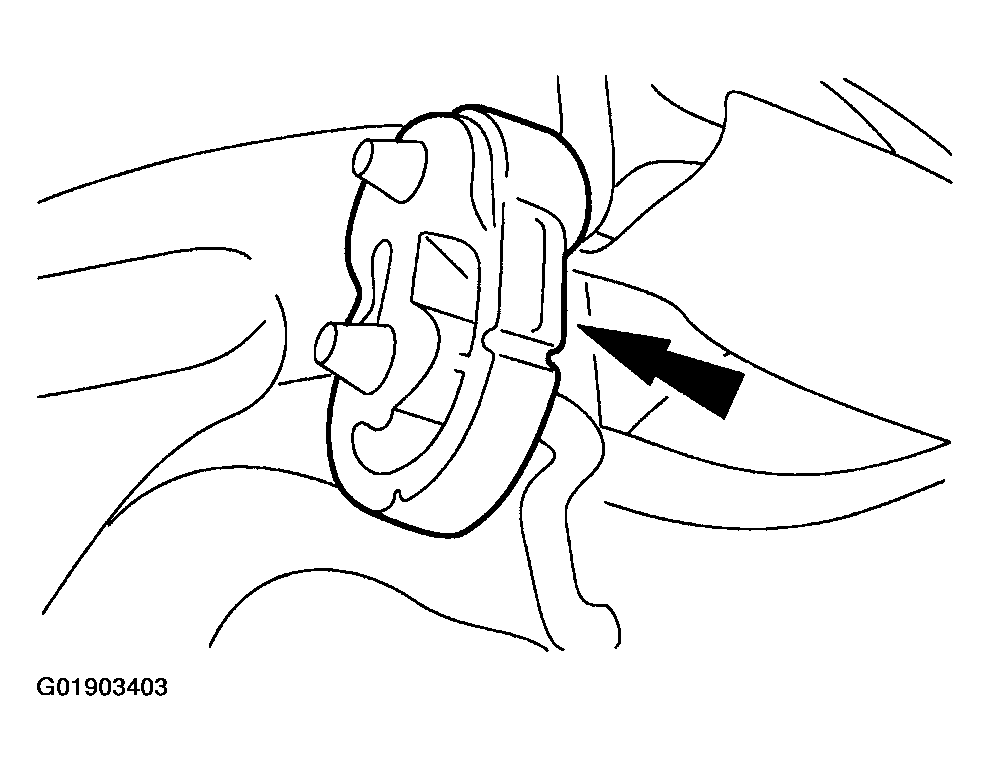

Fig 2: Disconnecting Exhaust Hanger From Subframe
Courtesy of MAZDA MOTORS CORP.
Disconnect the exhaust hanger from the subframe.

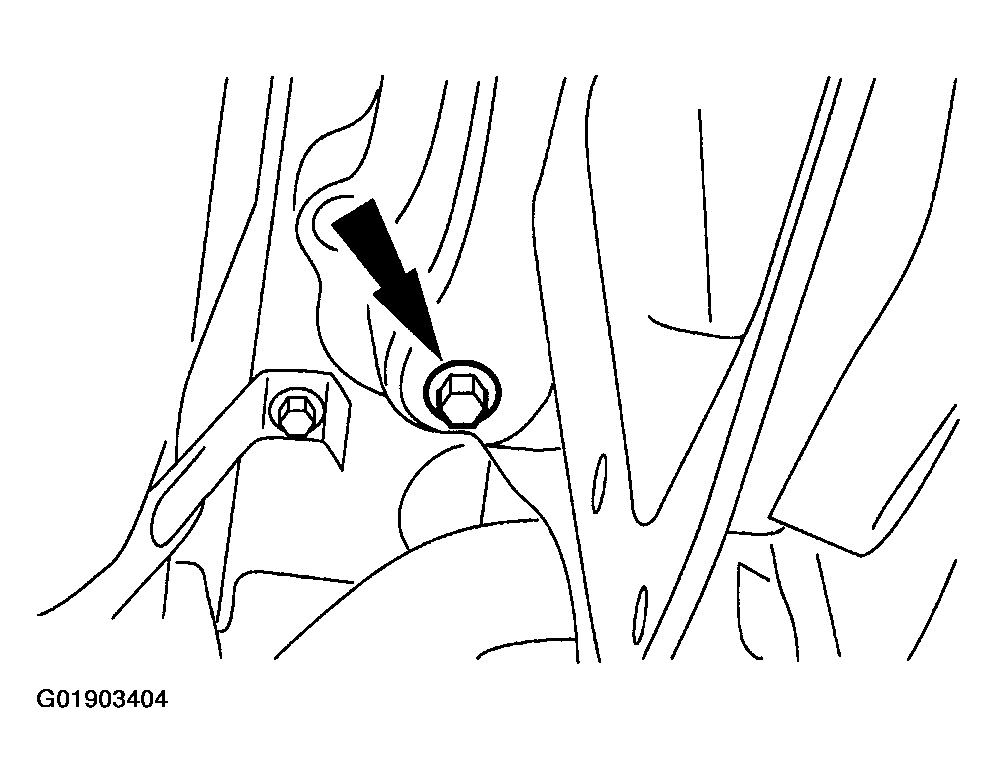

Fig 3: Removing And Rear Subframe
Courtesy of MAZDA MOTORS CORP.
With an assistant, remove the four bolts and rear subframe.
