SUBFRAME - Rear: Installation

All vehicles

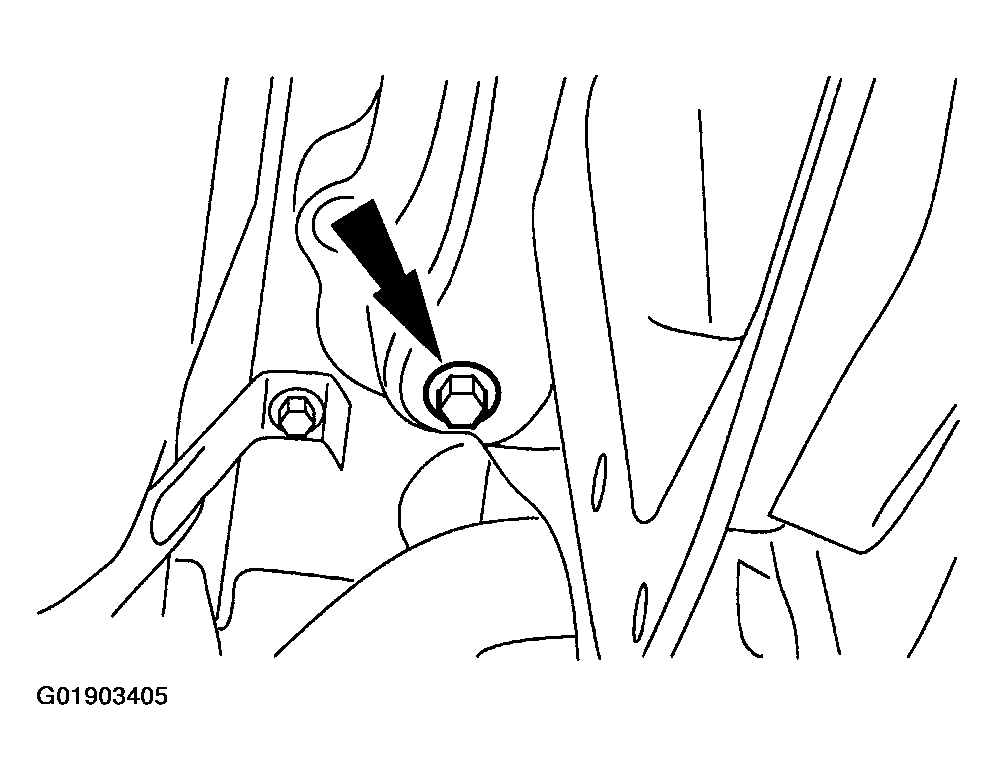

Fig 1: Positioning Rear Subframe

Courtesy of MAZDA MOTORS CORP.

1. With an assistant, position the rear subframe and loosely install the bolts.

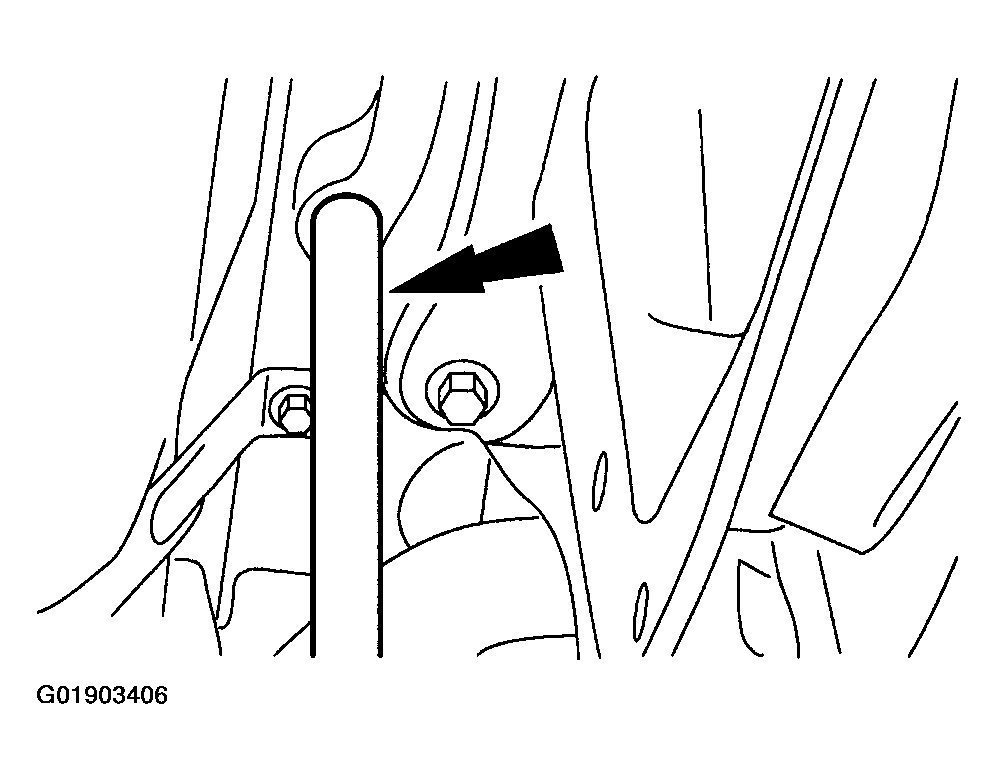

   Fig 2: Aligning Rear Subframe With Alignment Holes

   Courtesy of MAZDA MOTORS CORP.
2. With a 19 mm (0.76 in) rod, align the rear subframe with the alignment holes.

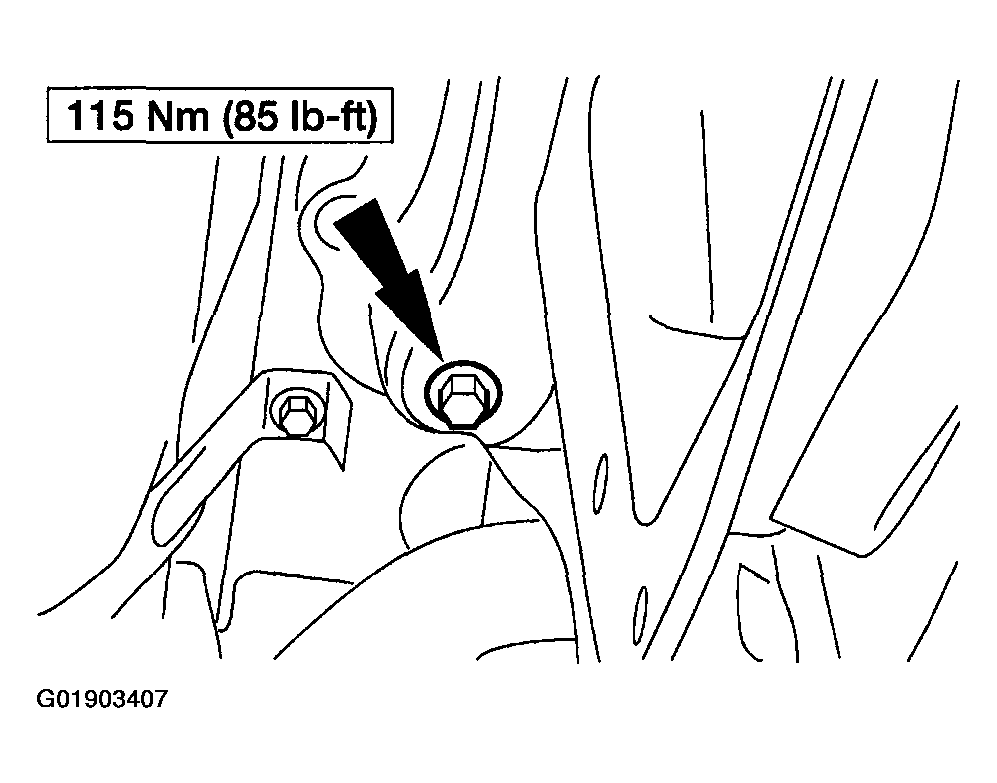

   Fig 3: Tightening rear subframe bolts

   Courtesy of MAZDA MOTORS CORP.
3. Tighten the rear subframe bolts.

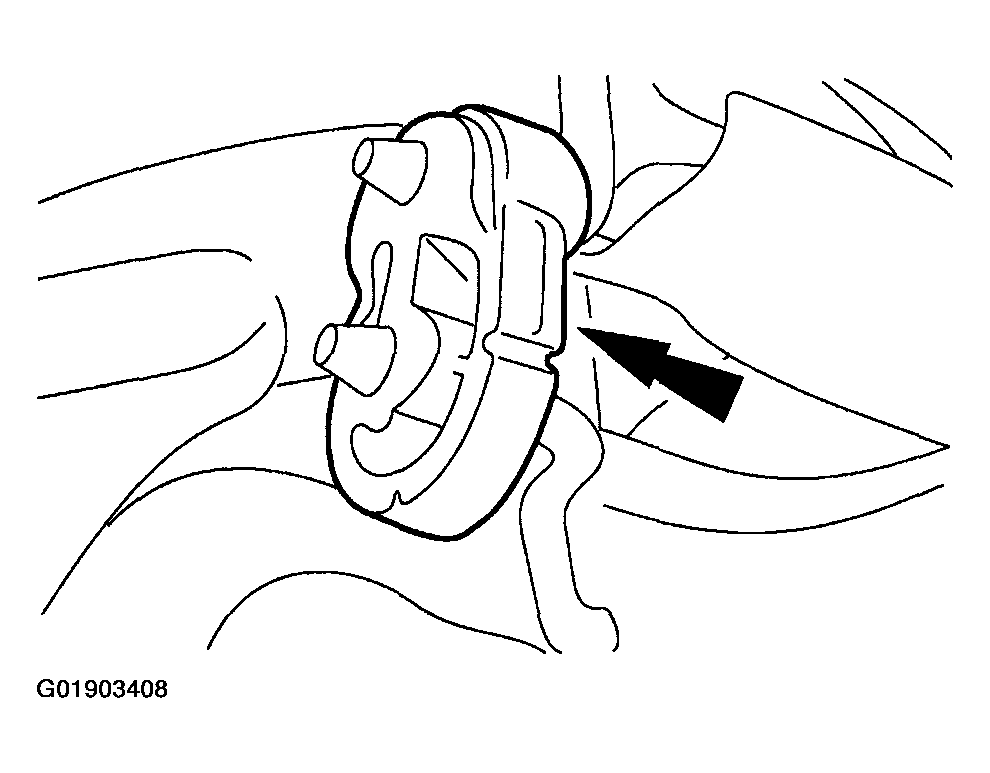

   Fig 4: Connecting Exhaust Hanger On Subframe

   Courtesy of MAZDA MOTORS CORP.
4. Connect the exhaust hanger on the subframe.

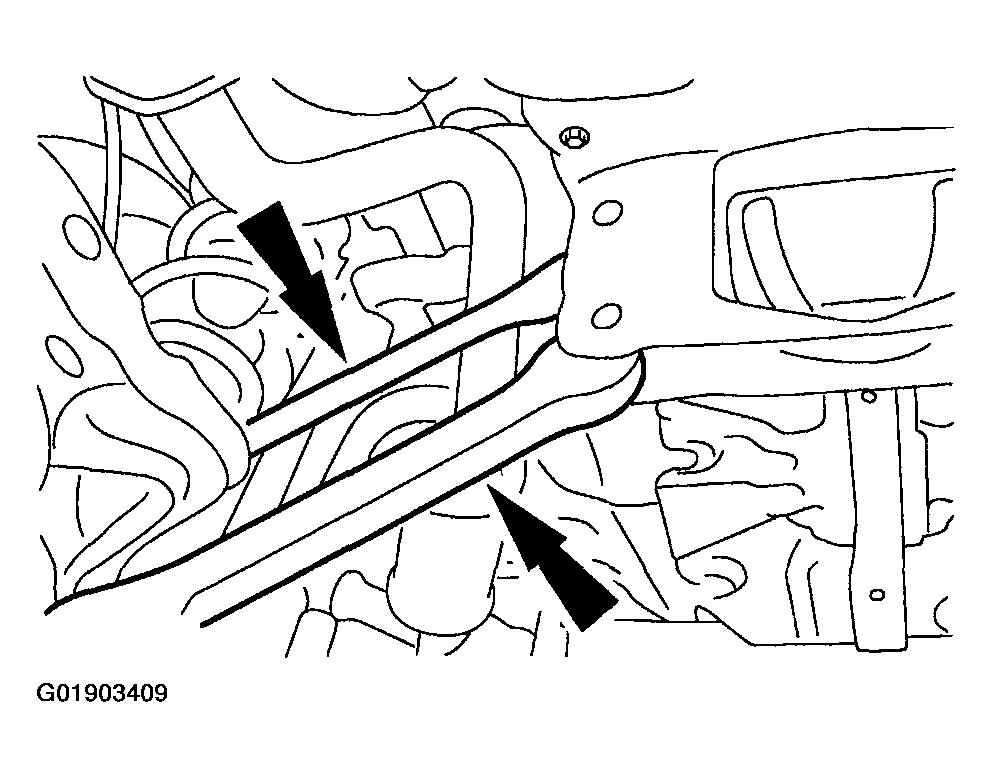

   Fig 5: Positioning Rear Control Arms In Subframe

   Courtesy of MAZDA MOTORS CORP.
5. Position the four rear control arms in the subframe.
   1. Loosely install the bolts.

   Vehicles 4WD

6. Install the rear axle assembly. For additional information, refer to AXLE ASSEMBLY .

   All Vehicles

7. Lower the vehicle.

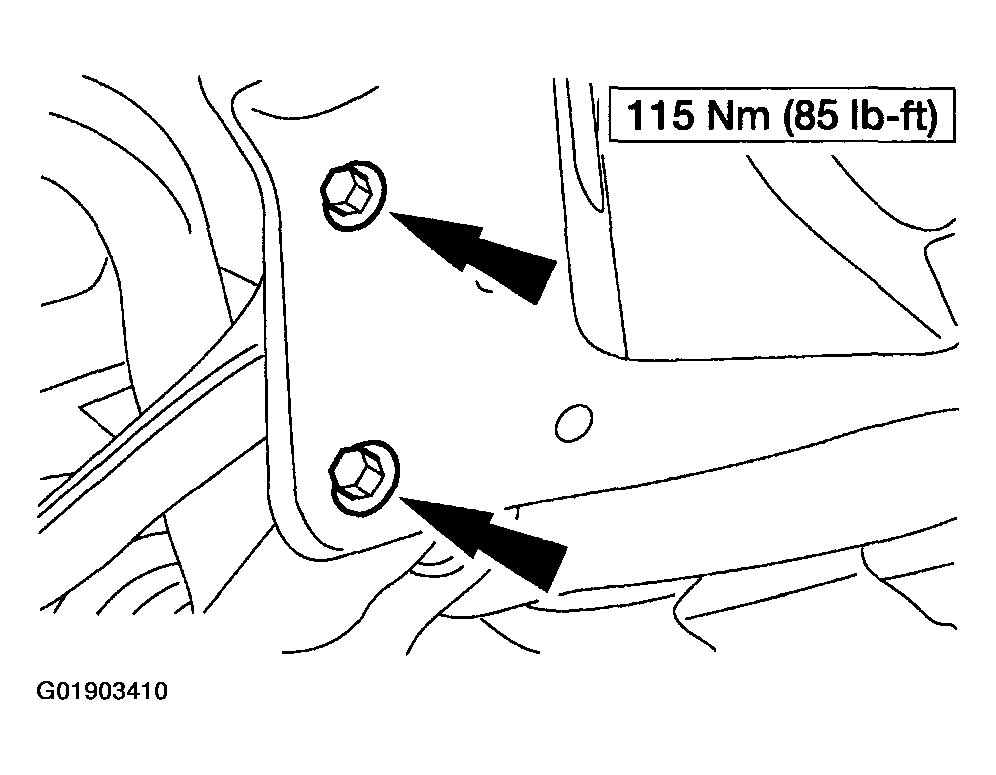

   Fig 6: Installing Rear Axle Assembly

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • The vehicles must be at ride height before tightening the bolts.
8. Tighten the four control arms bolts.
