Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper cover. For additional information, refer to FRONT BUMPER COVER  .

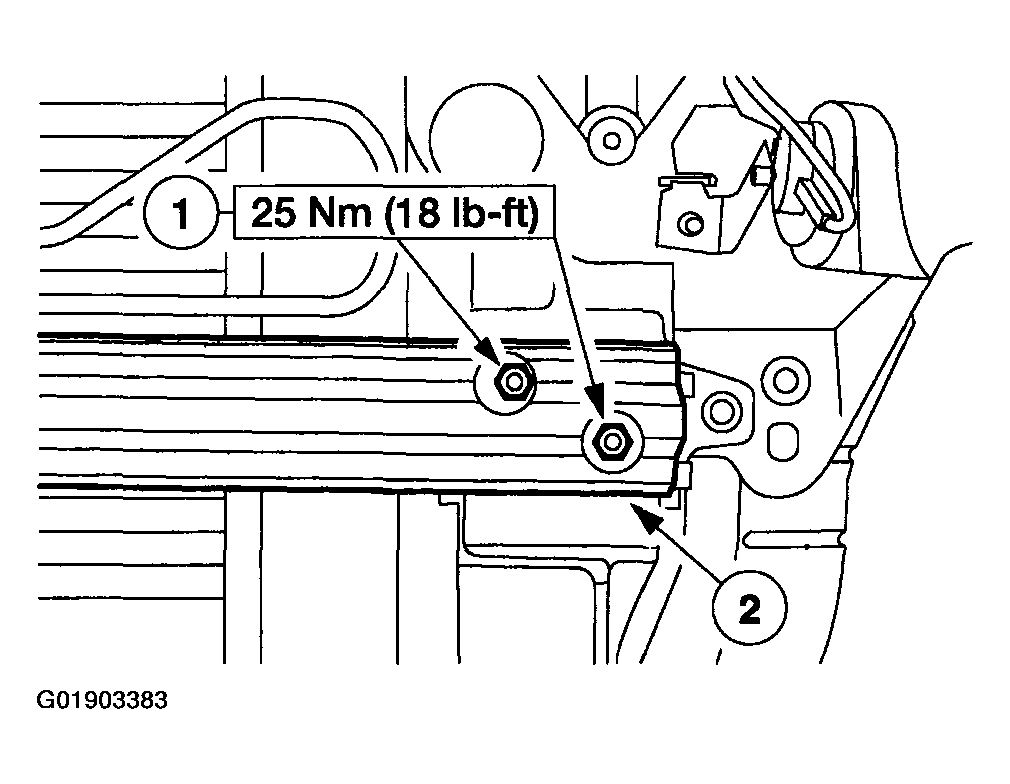

    Fig 1: Removing Front Bumper
    G01903383Courtesy of MAZDA MOTORS CORP.
  2. Remove the front bumper.
    1. Remove the four front bumper nuts (two each side).
    2. Remove the front bumper.
  3. To install, reverse the removal procedure.
