Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headlamp assembly. For additional information, refer to HEADLAMP ASSEMBLY .
Remove the fender splash shield. For additional information, refer to FENDER SPLASH SHIELD .
4WD Vehicles
Remove the fender moulding. For additional information, refer to FENDER MOULDING .
Remove the rocker panel moulding. For additional information, refer to ROCKER PANEL MOULDING .
Vehicles With Side Lamps

Fig 1: Removing Side Lamp
Courtesy of MAZDA MOTORS CORP.
Remove the side lamp.
1. Push the side lamp rearward.
2. Pull outward from the front of the side lamp and remove.
3. Disconnect the electrical connector.
RH Side

Fig 2: Removing Antenna Mast
Courtesy of MAZDA MOTORS CORP.
Remove the antenna mast.

Fig 3: Removing Antenna Base Fender Grommet
Courtesy of MAZDA MOTORS CORP.
Remove the antenna base fender grommet.

Fig 4: Removing Lower Fender Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the lower fender bolts.

Fig 5: Removing Fender Bolt
Courtesy of MAZDA MOTORS CORP.
NOTE:
- The front door must be open to gain access to the fender bolt.
Remove the fender bolt.

Fig 6: Removing Fender To Front Fender Radiator Support Brace Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the fender to front fender radiator support brace bolt.

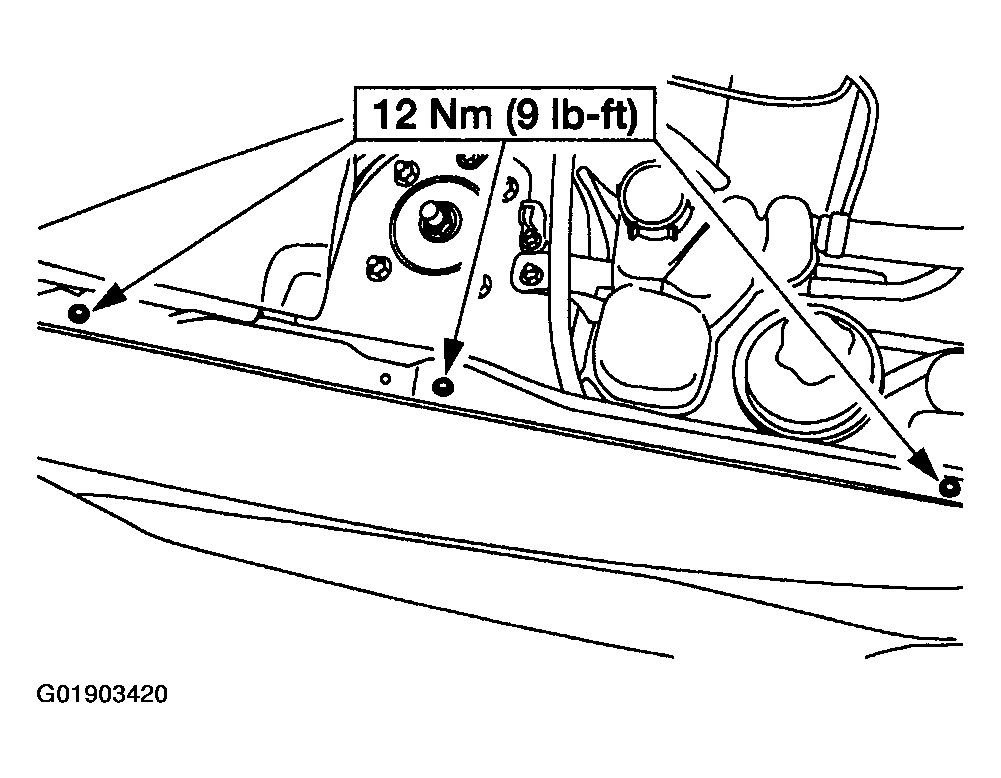

Fig 7: Removing Bolts And Front Fender
Courtesy of MAZDA MOTORS CORP.
NOTE:
- On the RH side, the antenna base is mounted to the body, inside the fender opening. The RH fender must be lifted over the base during removal.
Remove the bolts and the front fender.
To install, reverse the removal procedure.
