Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front wheel and tire assembly. For additional information, refer to WHEELS AND TIRES .
    Fig 1: Removing Fender Splash Shield Pin-Type Retainers
    G01903421Courtesy of MAZDA MOTORS CORP.
  2. Remove the fender splash shield pin-type retainers.

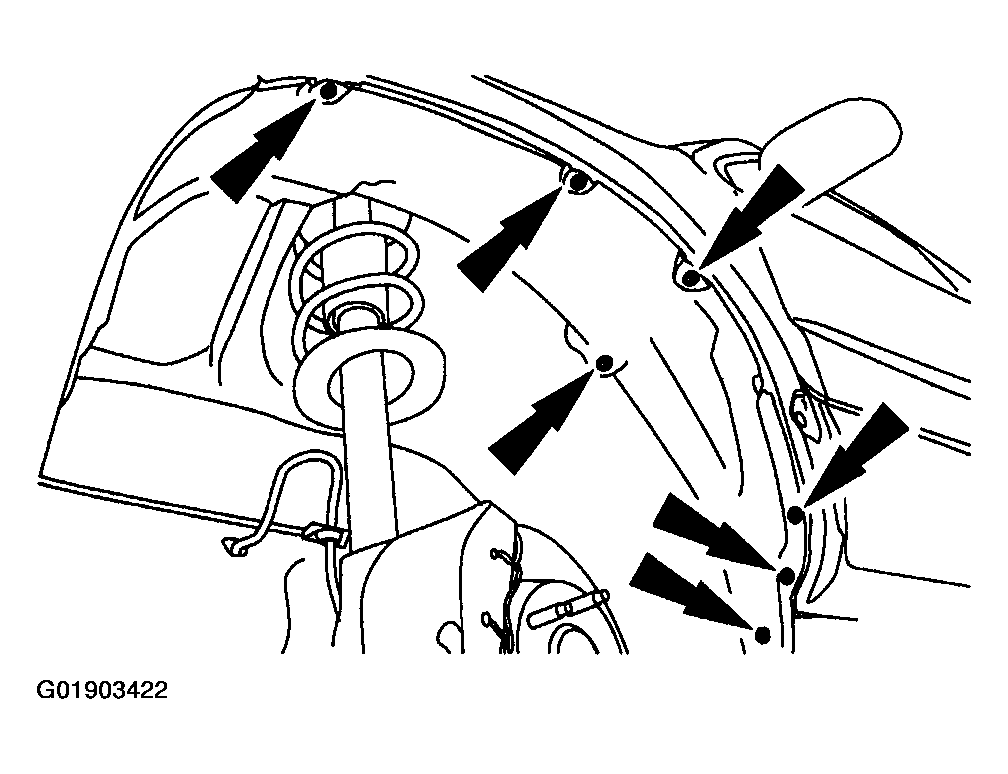

    Fig 2: Removing Fender Splash Shield Screws
    G01903422Courtesy of MAZDA MOTORS CORP.
  3. Remove the fender splash shield screws.

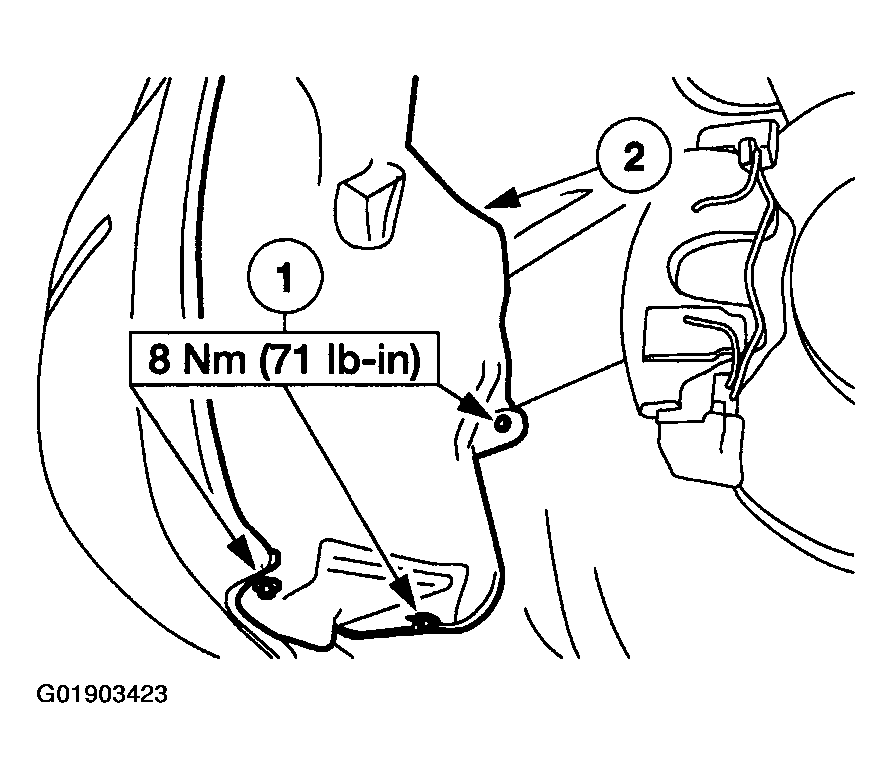

    Fig 3: Removing Fender Splash Shield
    G01903423Courtesy of MAZDA MOTORS CORP.
  4. Remove the fender splash shield.
    1. Remove the bolts.
    2. Remove the fender splash shield.
  5. To install, reverse the removal procedure.
