Pinpoint Test 7: The Brake Warning Indicator Is Never/Always On

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

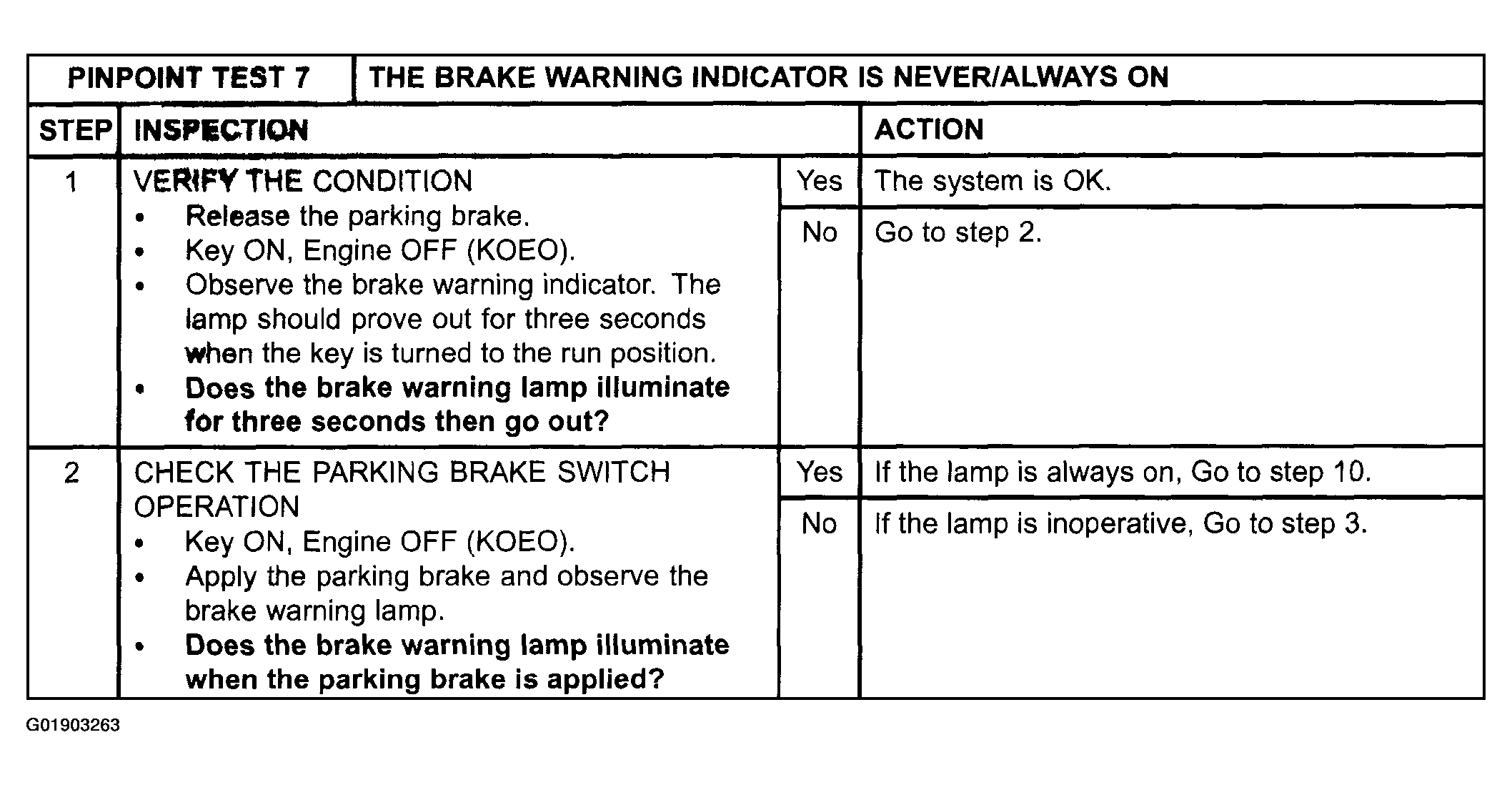

Fig 1: Pinpoint Test 7: Brake Warning Indicator Is Never/Always On (Steps 1-2)

G01903263

Courtesy of MAZDA MOTORS CORP.

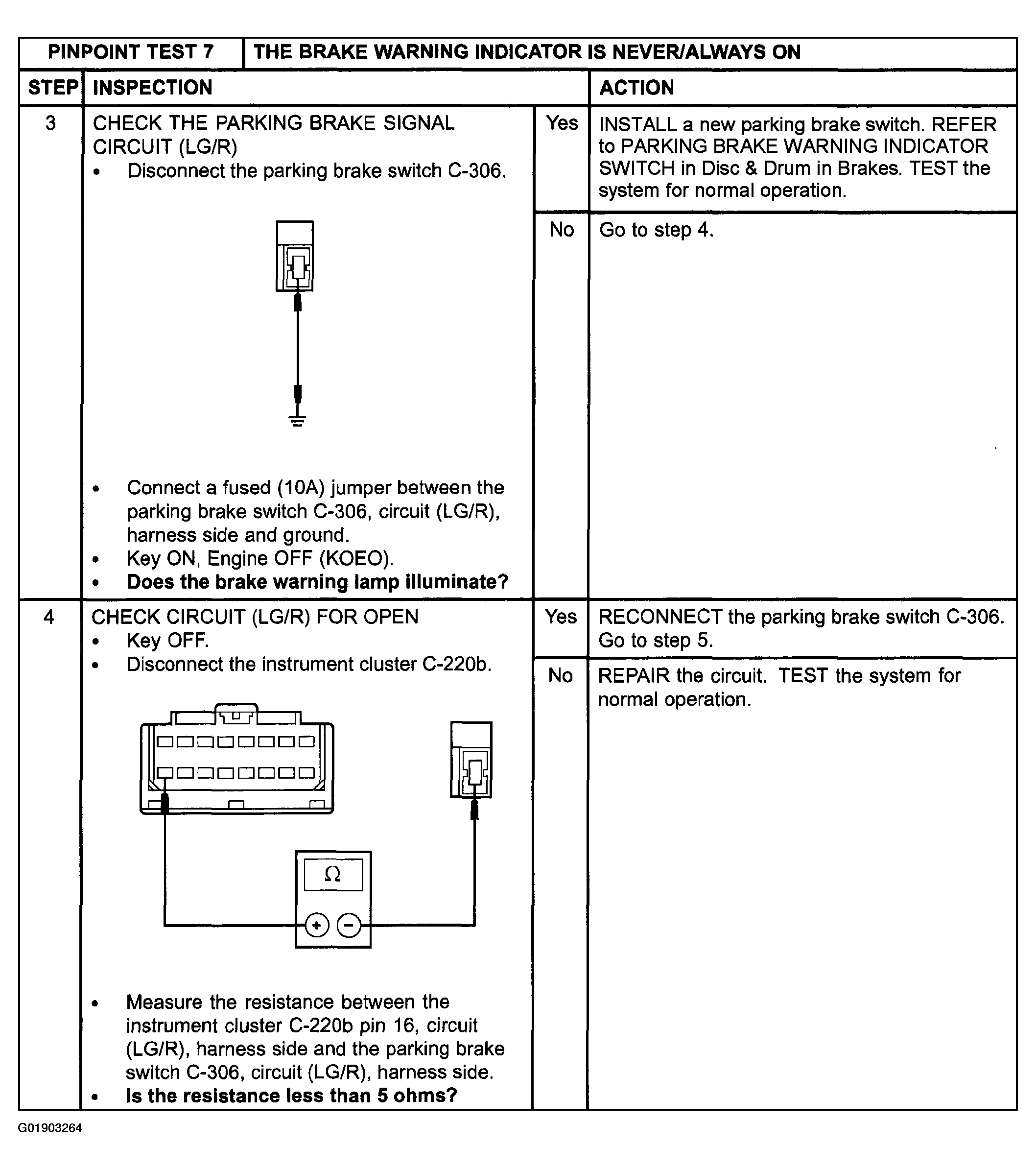

Fig 2: Pinpoint Test 7: Brake Warning Indicator Is Never/Always On (Steps 3-4)

G01903264

Courtesy of MAZDA MOTORS CORP.

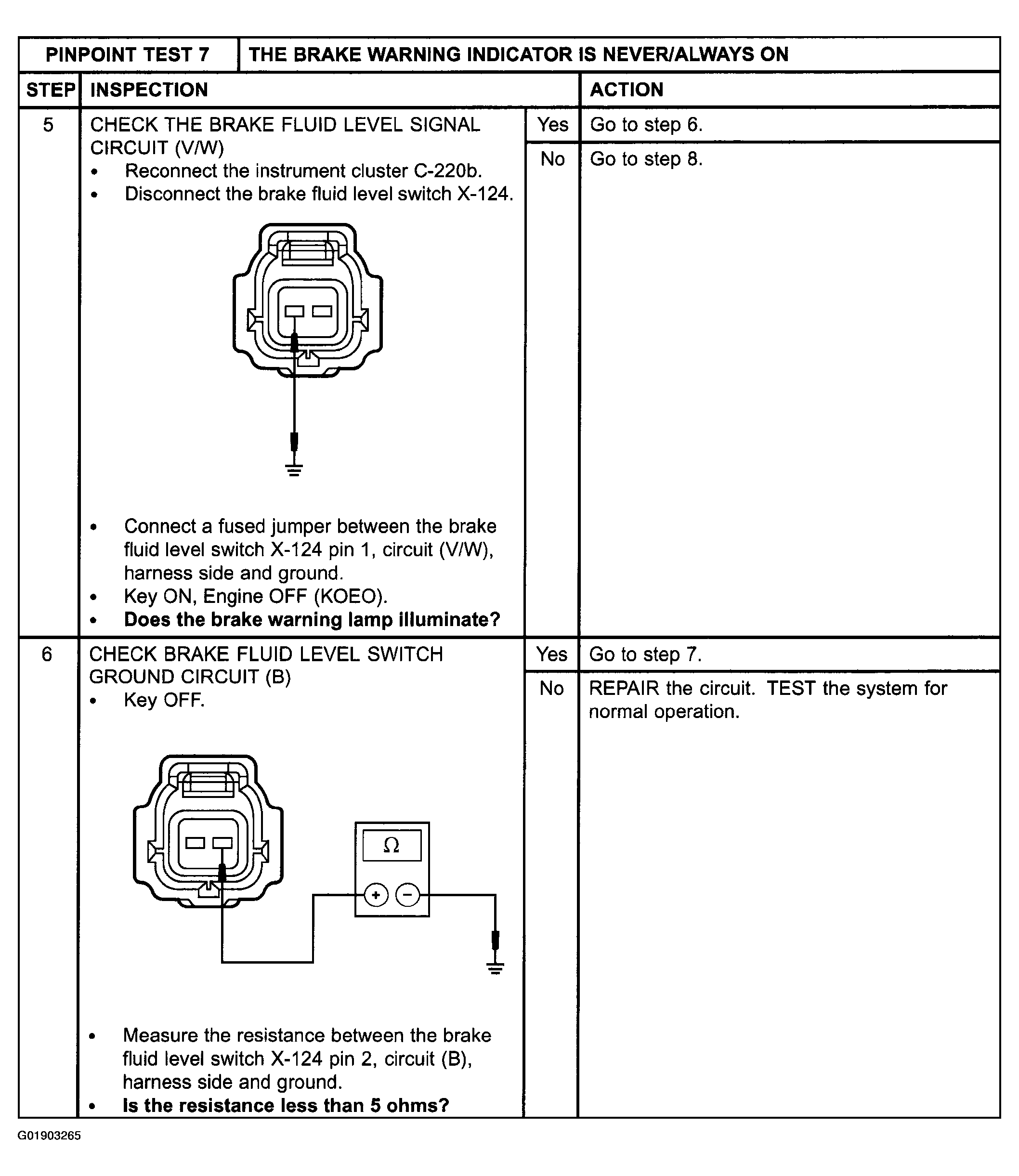

Fig 3: Pinpoint Test 7: Brake Warning Indicator Is Never/Always On (Steps 5-6)

G01903265

Courtesy of MAZDA MOTORS CORP.

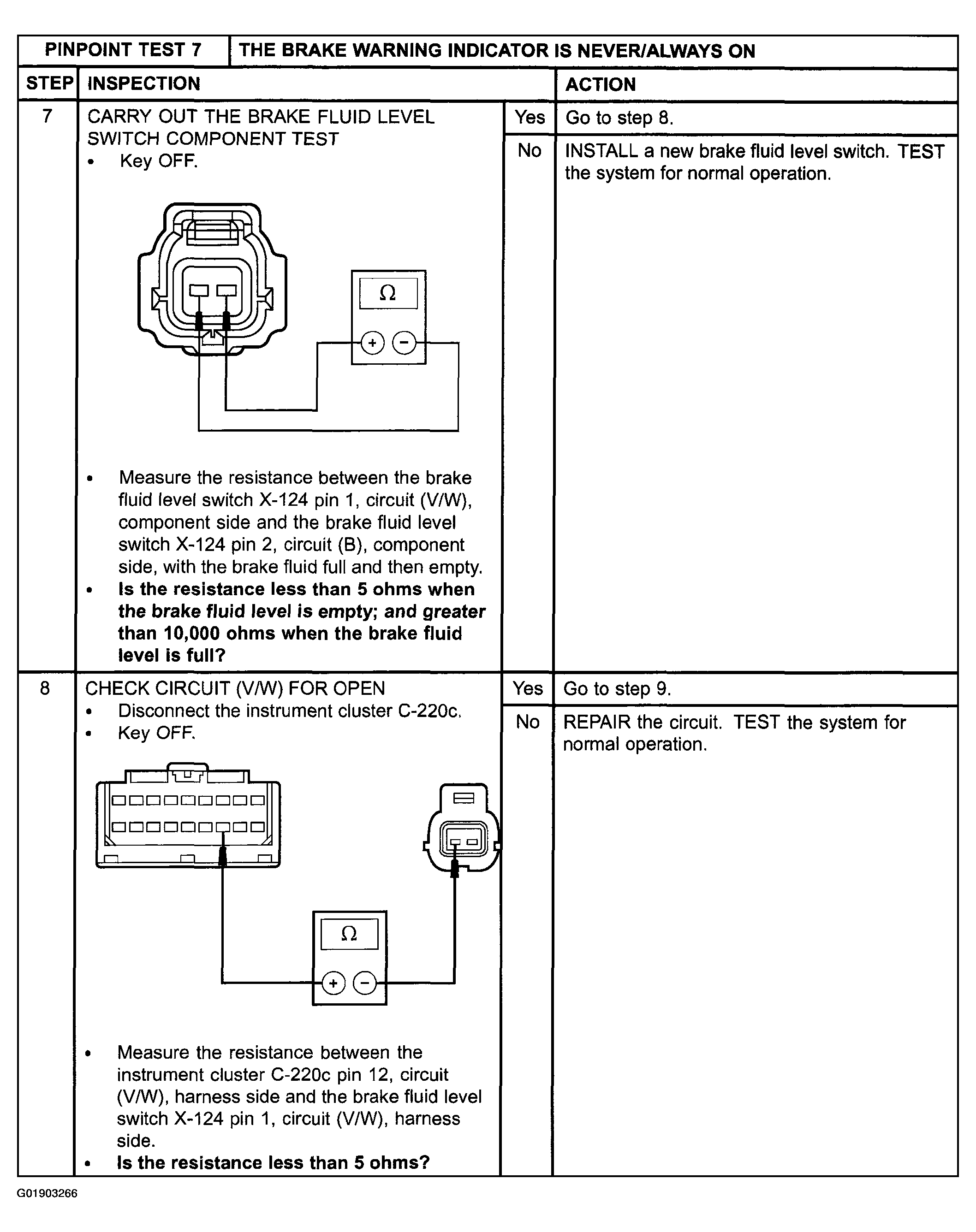

Fig 4: Pinpoint Test 7: Brake Warning Indicator Is Never/Always On (Steps 7-8)

G01903266

Courtesy of MAZDA MOTORS CORP.

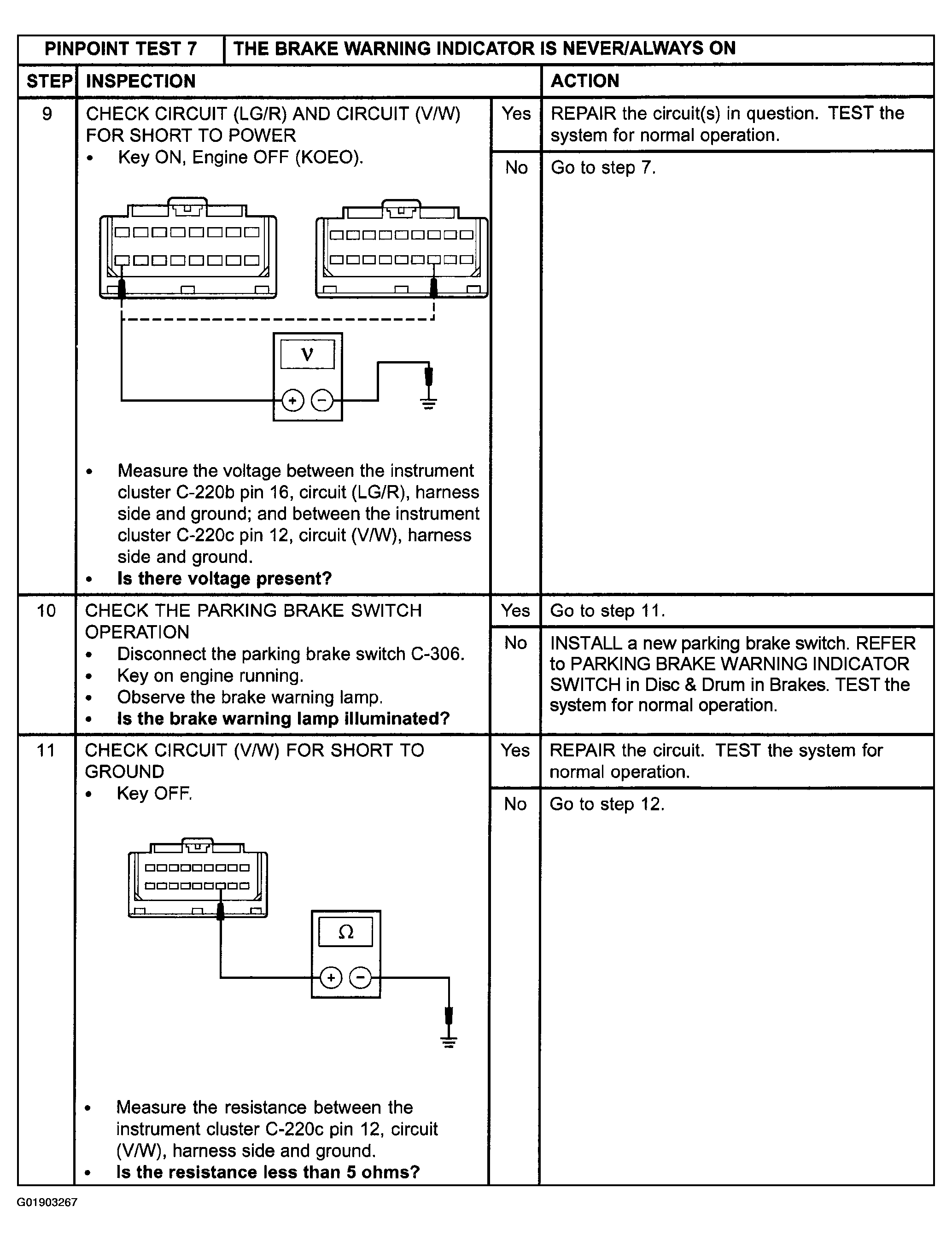

Fig 5: Pinpoint Test 7: Brake Warning Indicator Is Never/Always On (Steps 9-11)

G01903267

Courtesy of MAZDA MOTORS CORP.

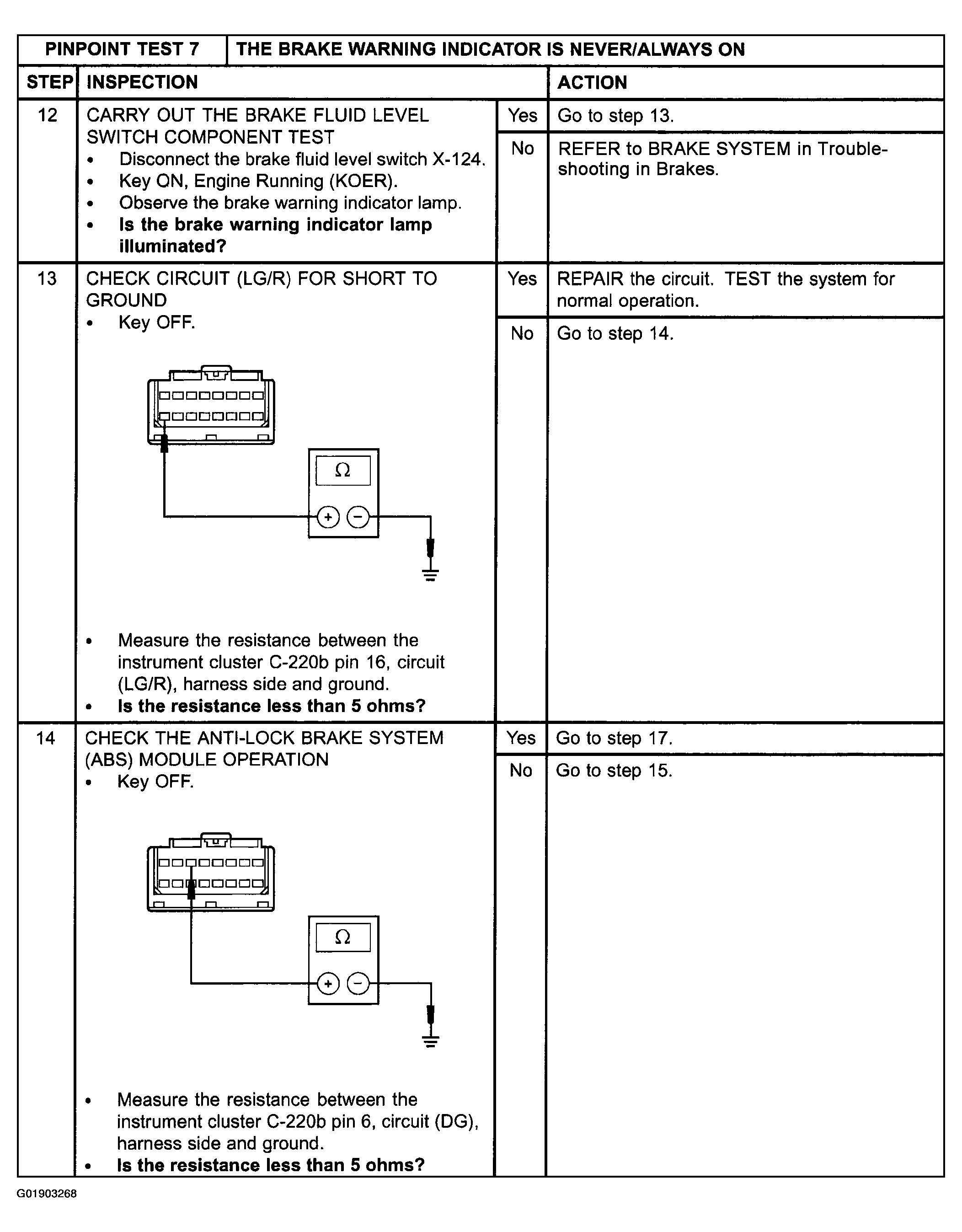

Fig 6: Pinpoint Test 7: Brake Warning Indicator Is Never/Always On (Steps 12-14)

G01903268

Courtesy of MAZDA MOTORS CORP.

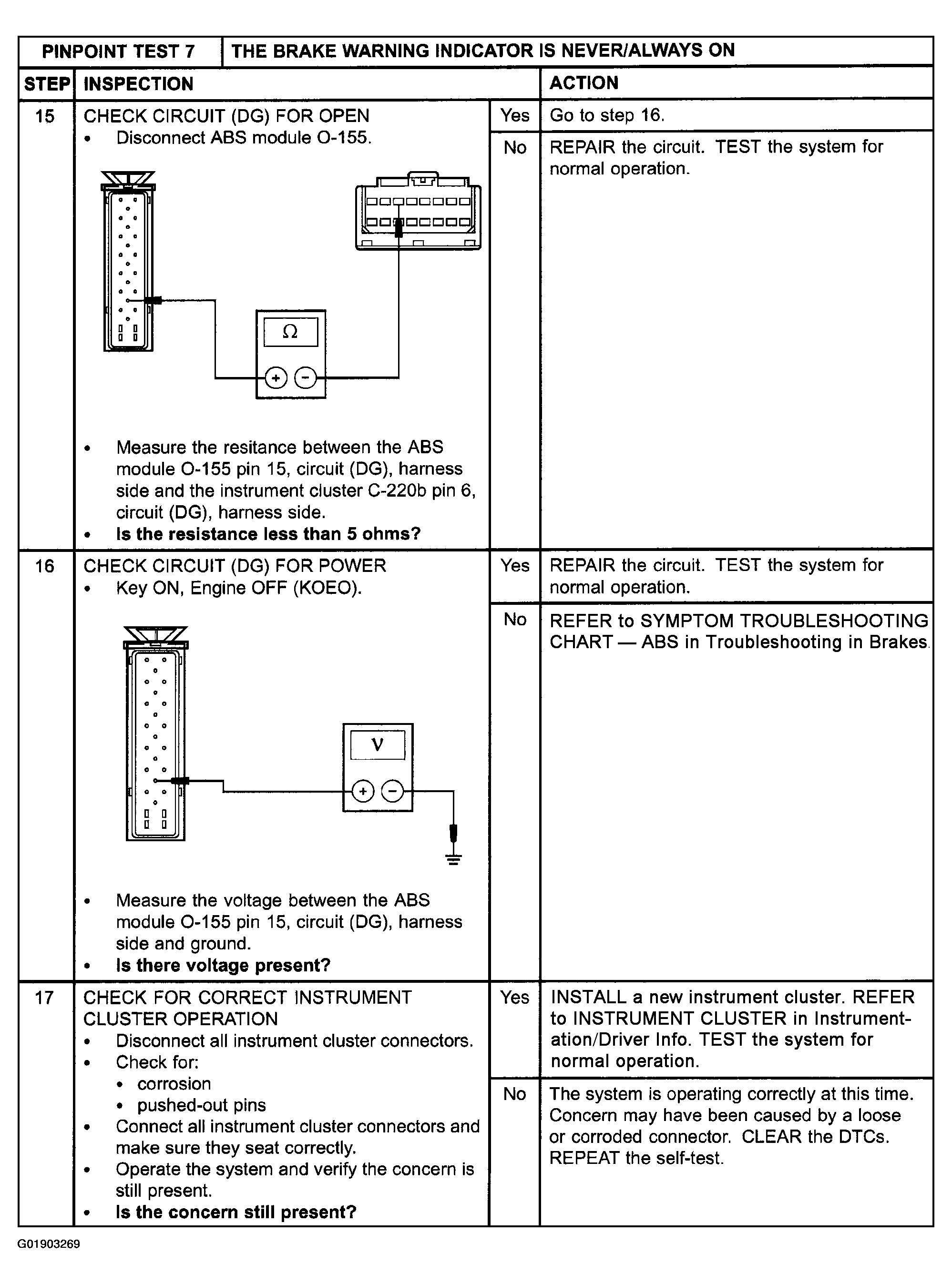

Fig 7: Pinpoint Test 7: Brake Warning Indicator Is Never/Always On (Steps 15-17)

G01903269

Courtesy of MAZDA MOTORS CORP.
