Pinpoint Test 5: The Tachometer Is Inoperative

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

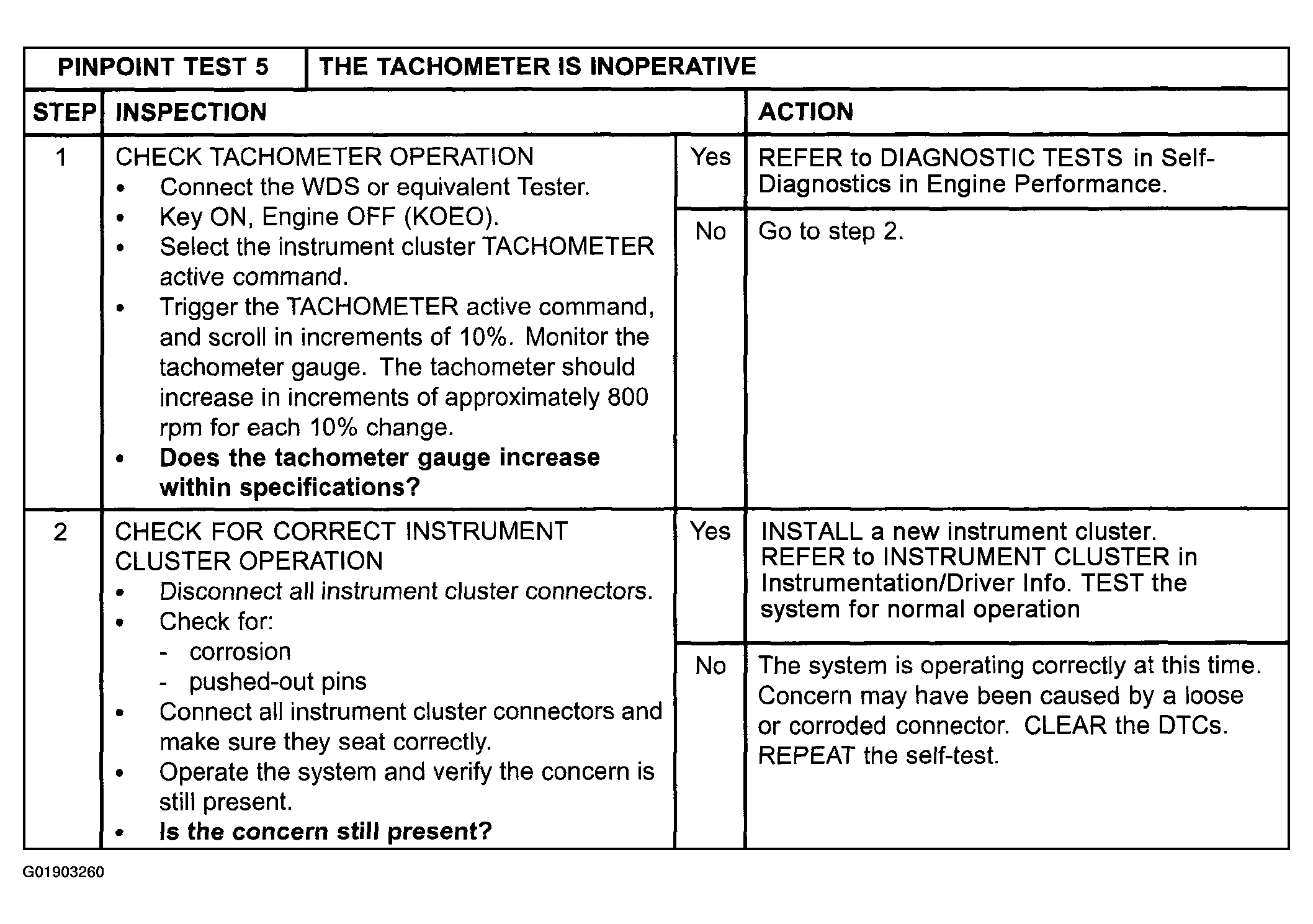

Fig 1: Pinpoint Test 5: Tachometer Is Inoperative
G01903260Courtesy of MAZDA MOTORS CORP.
