Pinpoint Test 3: Incorrect Fuel Gauge Indication

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

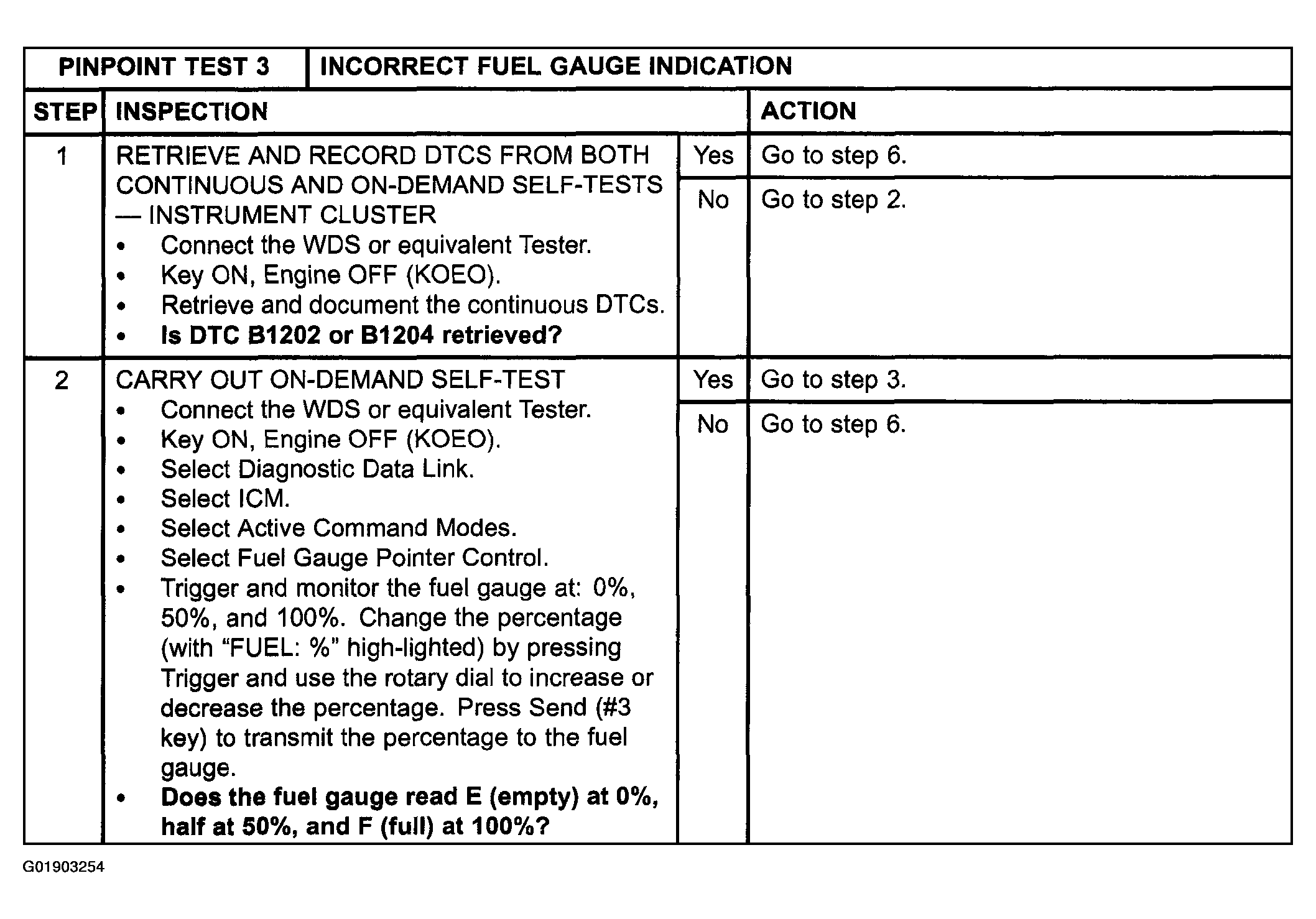

Fig 1: Pinpoint Test 3: Incorrect Fuel Gauge Indication (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

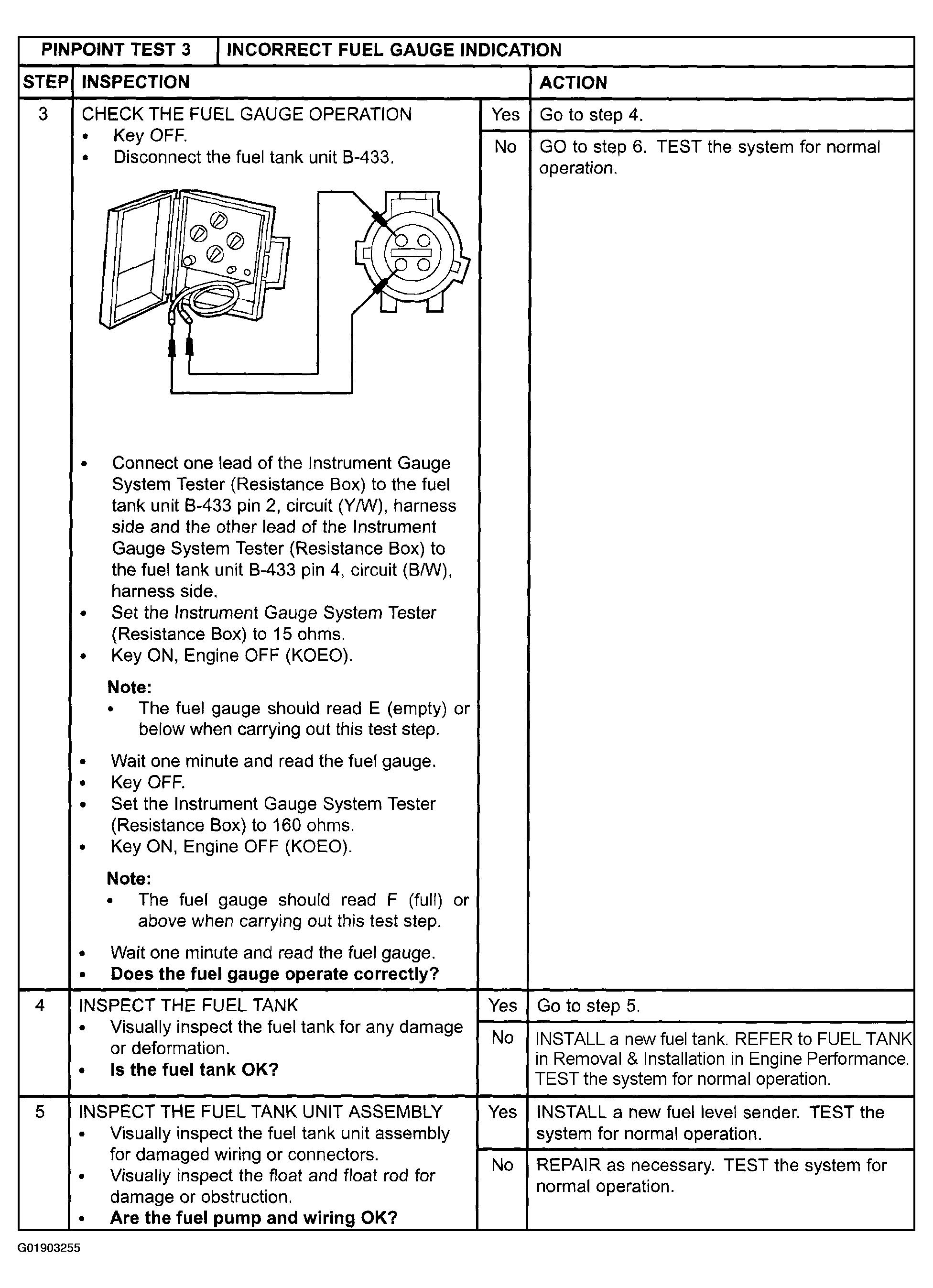

Fig 2: Pinpoint Test 3: Incorrect Fuel Gauge Indication (Steps 3-5)

Courtesy of MAZDA MOTORS CORP.

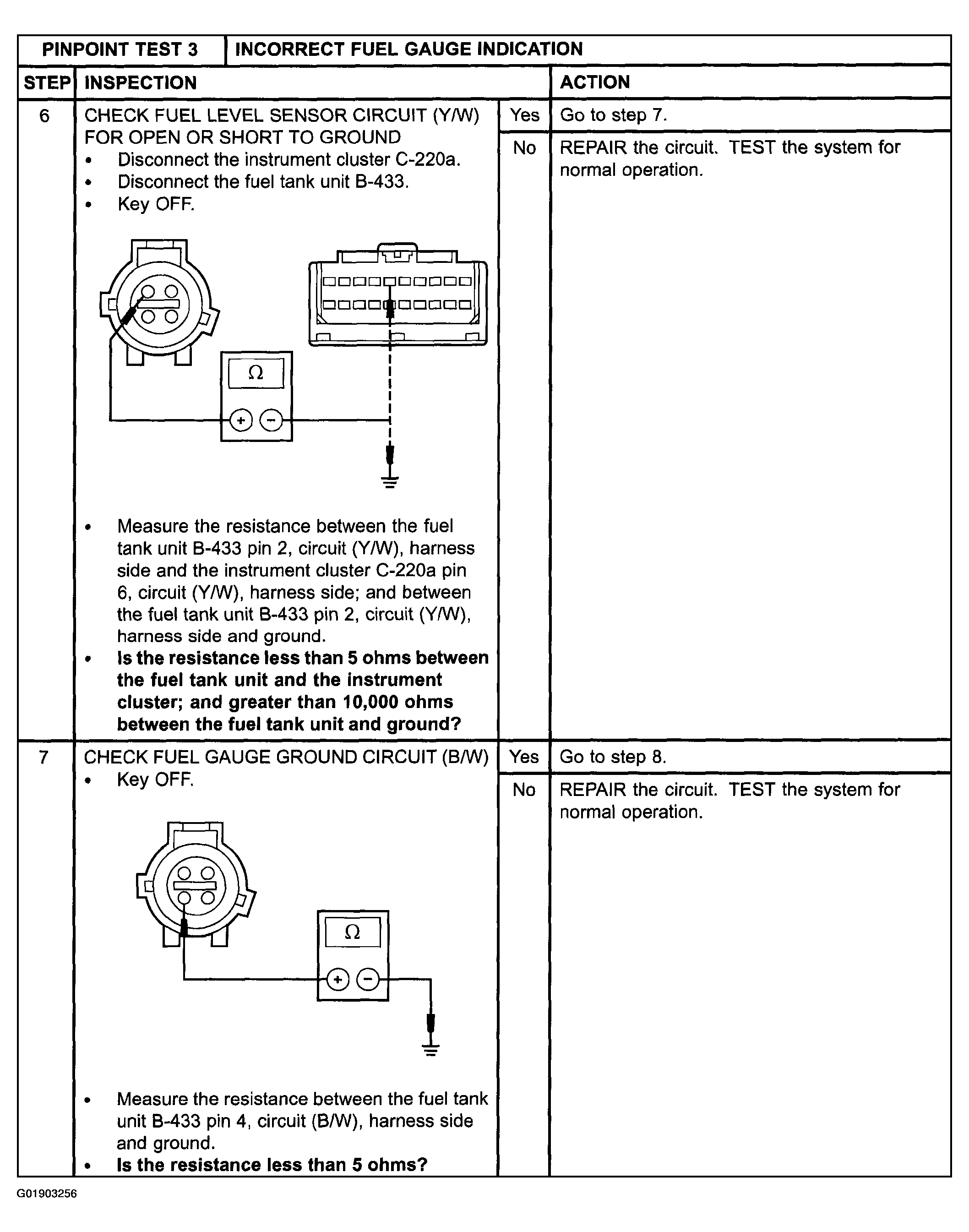

Fig 3: Pinpoint Test 3: Incorrect Fuel Gauge Indication (Steps 6-7)

Courtesy of MAZDA MOTORS CORP.

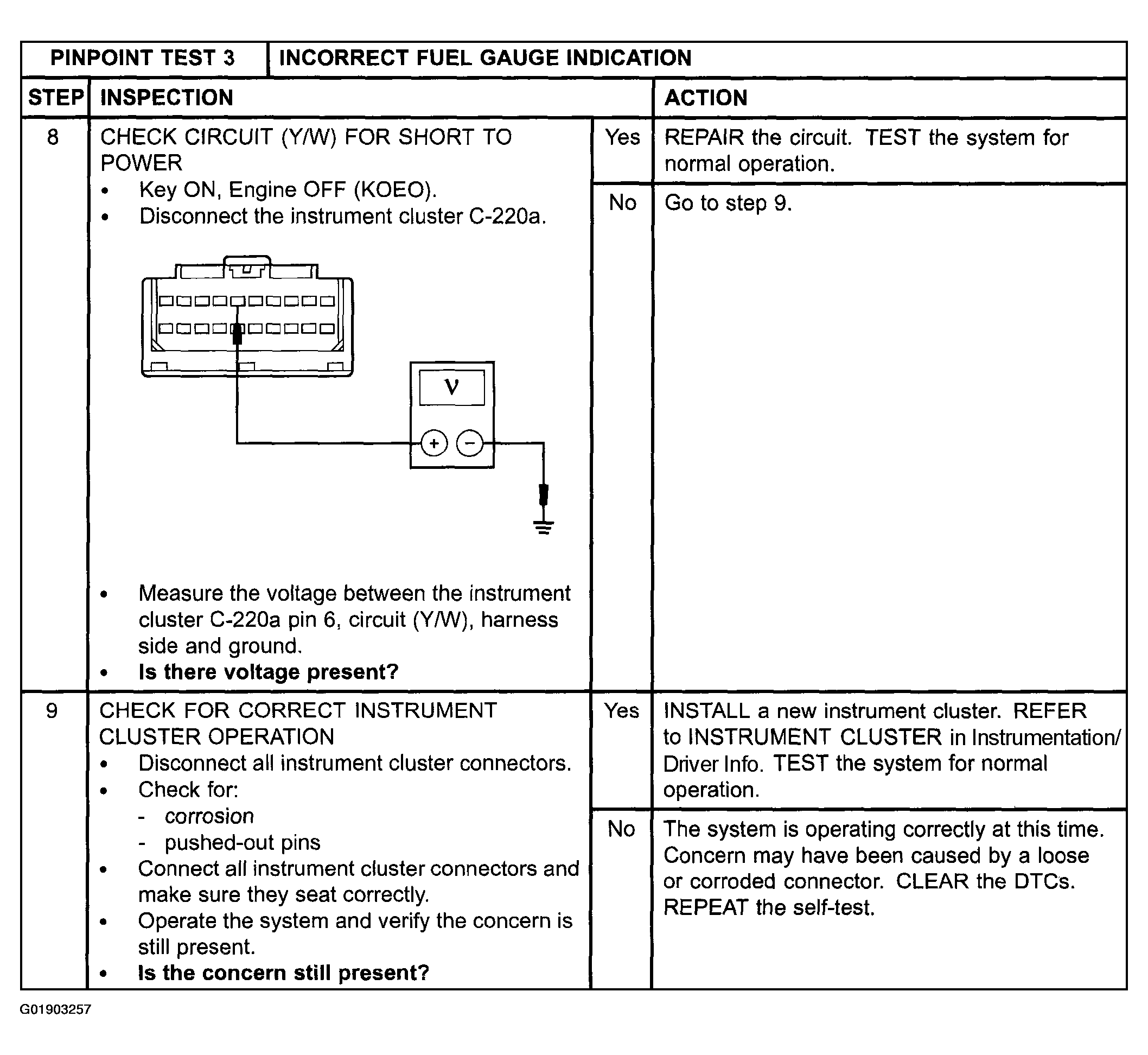

Fig 4: Pinpoint Test 3: Incorrect Fuel Gauge Indication (Steps 8-9)

Courtesy of MAZDA MOTORS CORP.
