Pinpoint Test 24: The Transaxle Range Indicator Is Inoperative

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Use correct probe adapter(s) when making measurements. Failure to use correct probe adapter(s) may damage the connector.

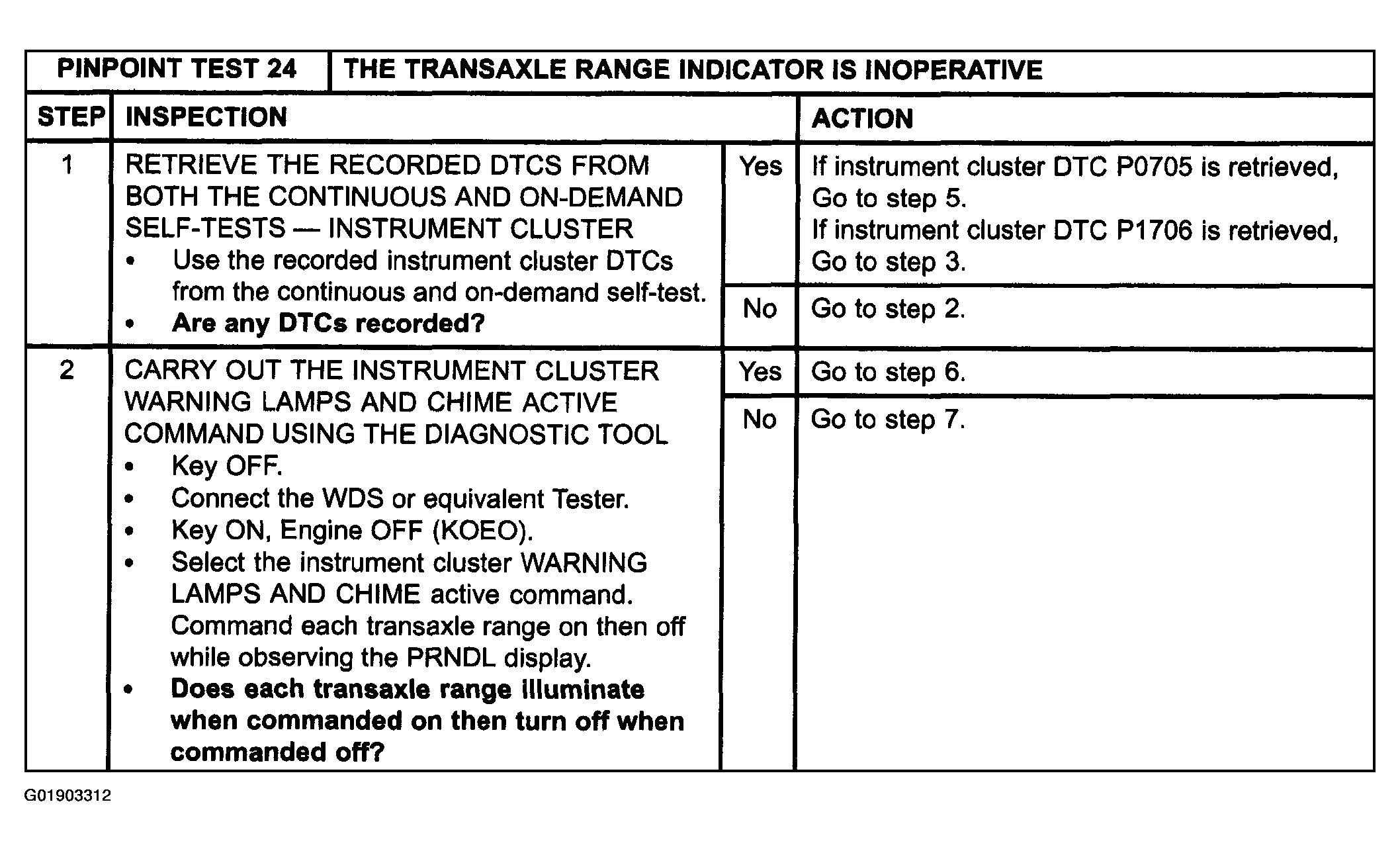

Fig 1: Pinpoint Test 24: Transaxle Range Indicator Is Inoperative (Steps 1-2)
G01903312Courtesy of MAZDA MOTORS CORP.

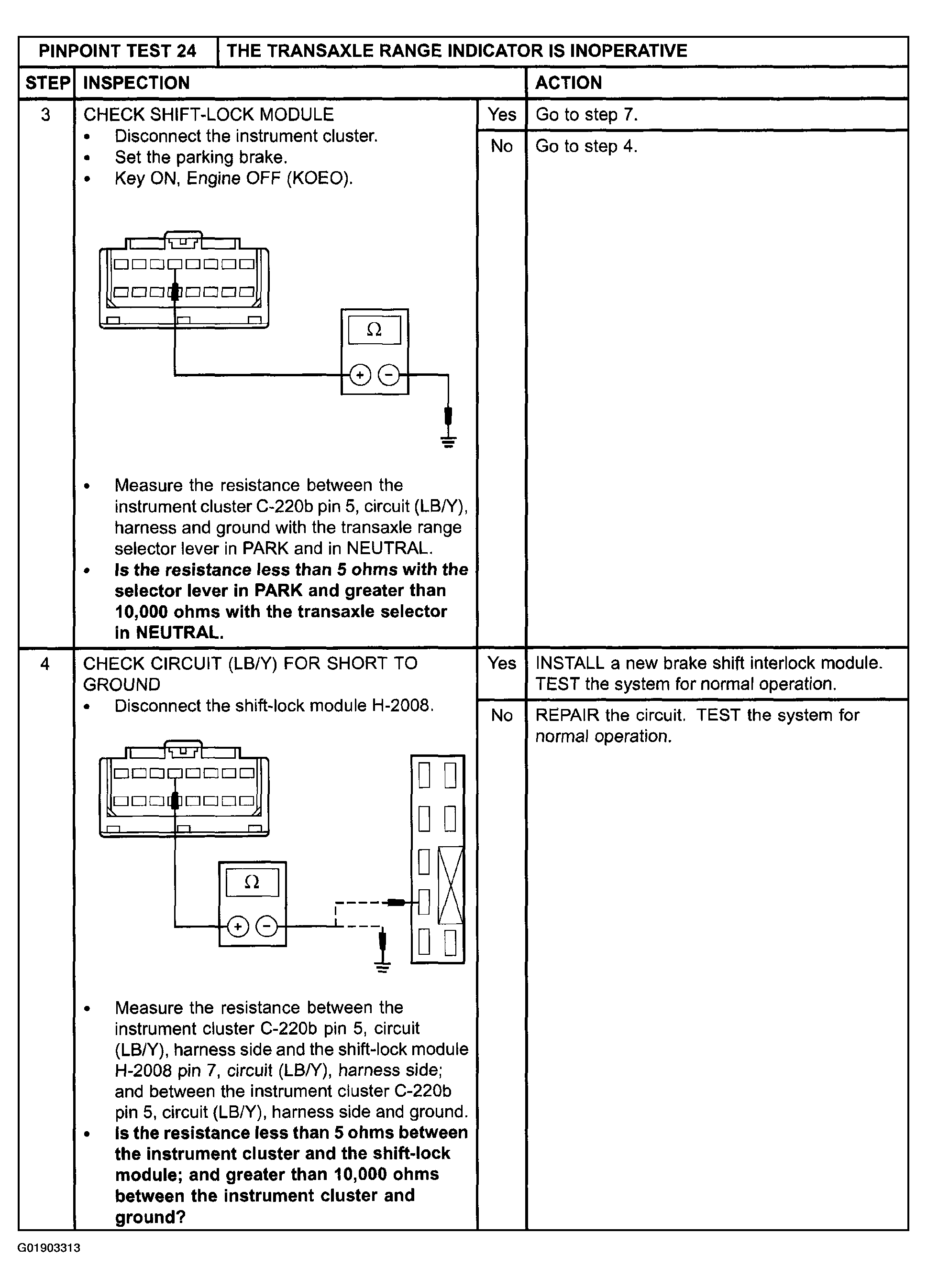

Fig 2: Pinpoint Test 24: Transaxle Range Indicator Is Inoperative (Steps 3-4)
G01903313Courtesy of MAZDA MOTORS CORP.

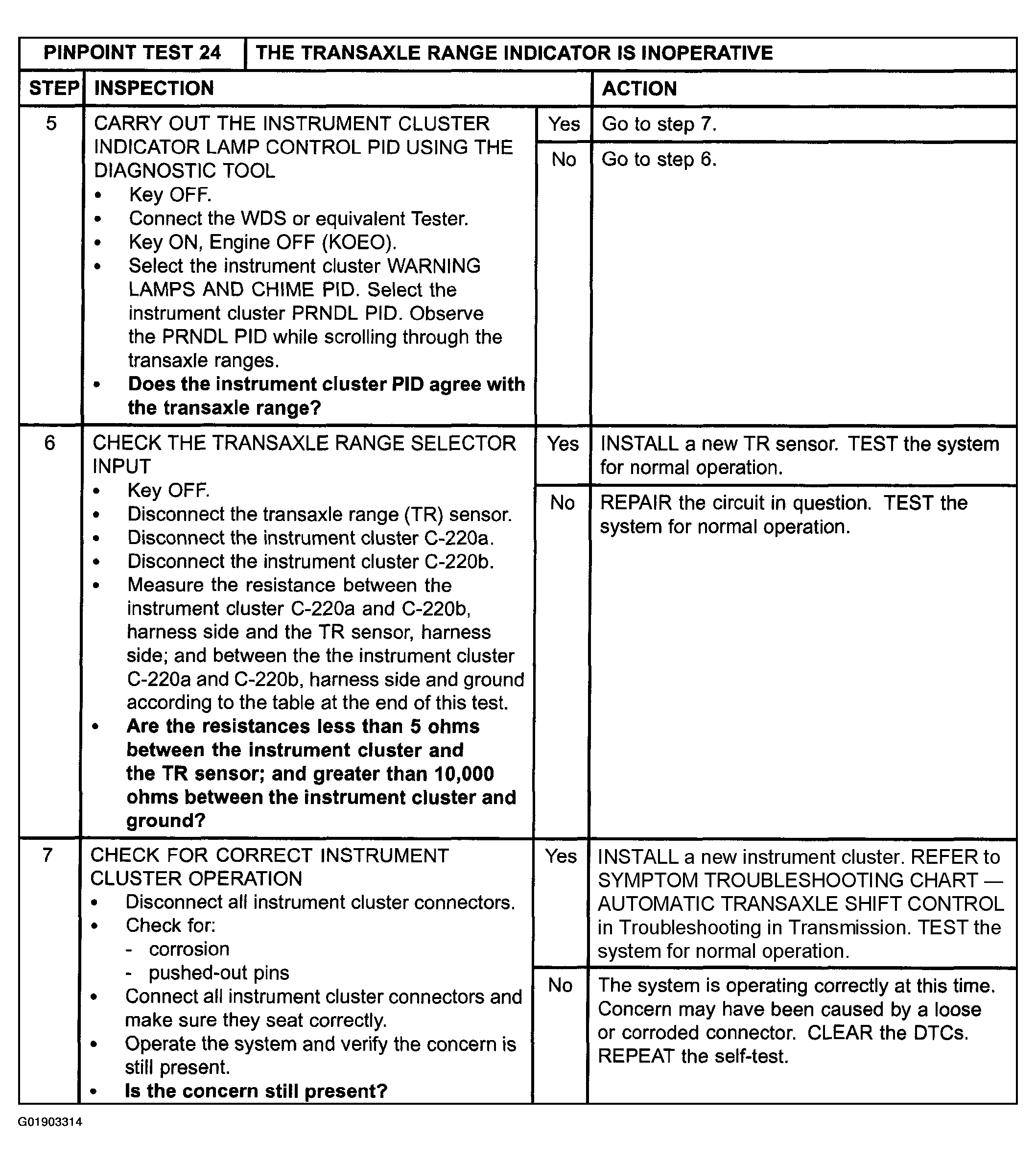

Fig 3: Pinpoint Test 24: Transaxle Range Indicator Is Inoperative (Steps 5-7)
G01903314Courtesy of MAZDA MOTORS CORP.
Fig 4: Instrument Cluster Specification (1 Of 2)
G01903315Courtesy of MAZDA MOTORS CORP.

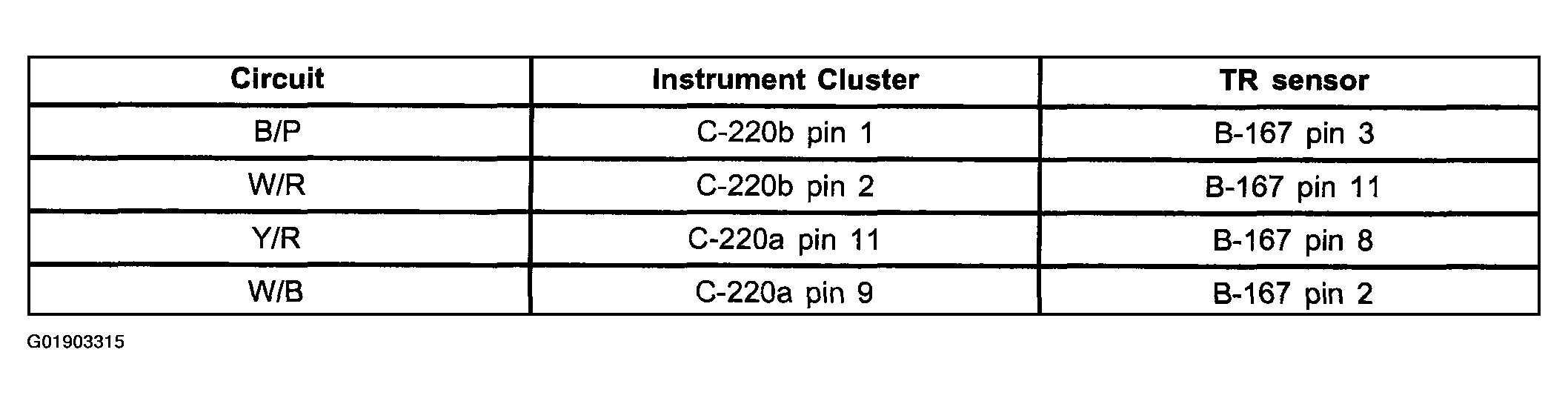

Fig 5: Instrument Cluster Specification (2 Of 2)
G01903316Courtesy of MAZDA MOTORS CORP.
