Pinpoint Test 16: The RH Turn Indicator Is Inoperative/Always On

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

Fig 1: Pinpoint Test 16: RH Turn Indicator Is Inoperative/Always On (Step 1)

Courtesy of MAZDA MOTORS CORP.

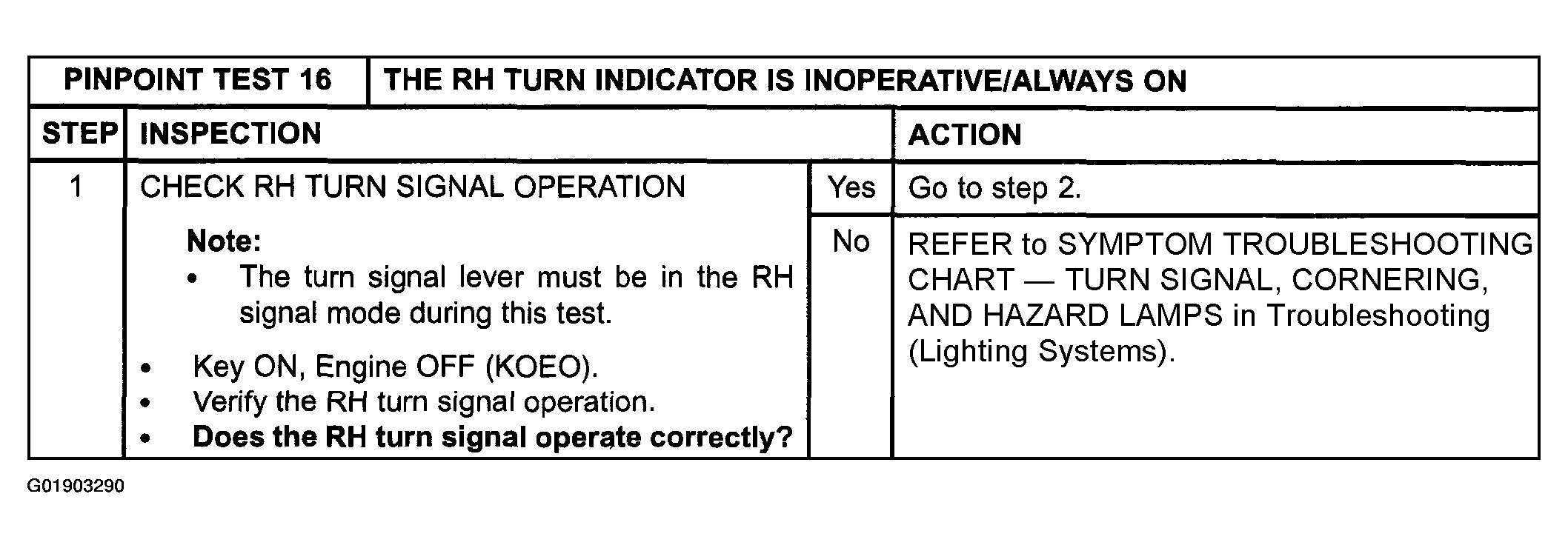

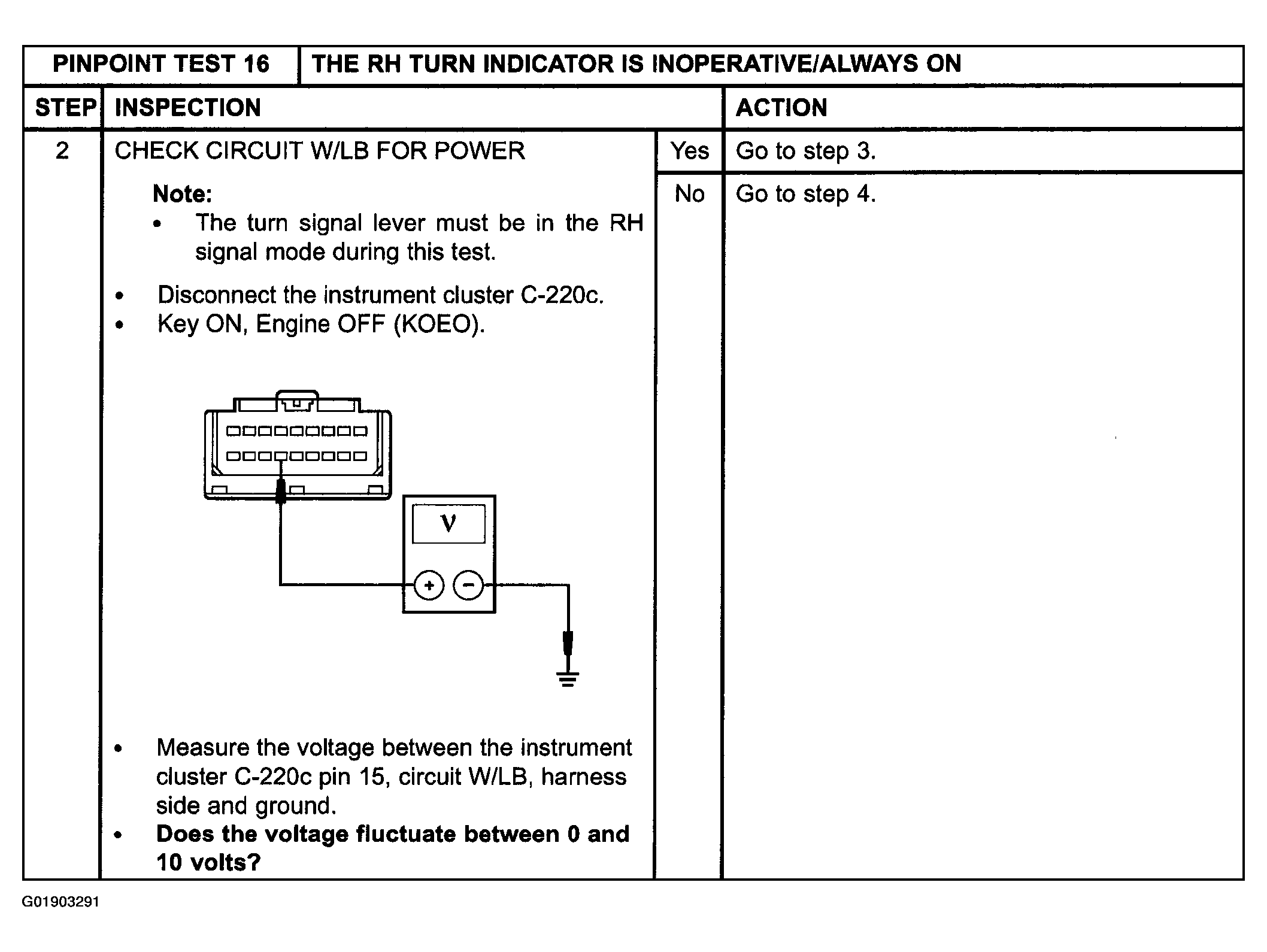

Fig 2: Pinpoint Test 16: RH Turn Indicator Is Inoperative/Always On (Step 2)

Courtesy of MAZDA MOTORS CORP.

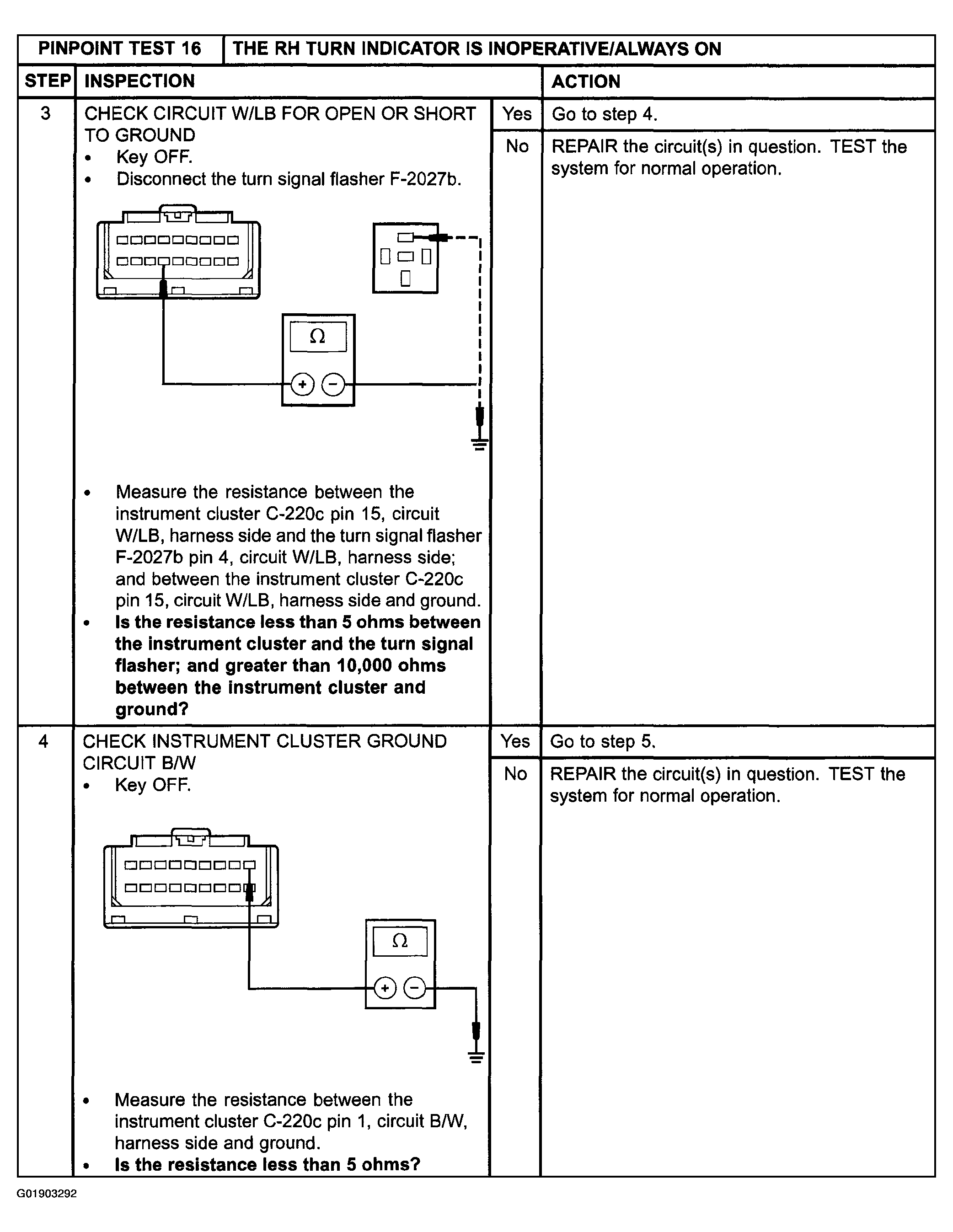

Fig 3: Pinpoint Test 16: RH Turn Indicator Is Inoperative/Always On (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.

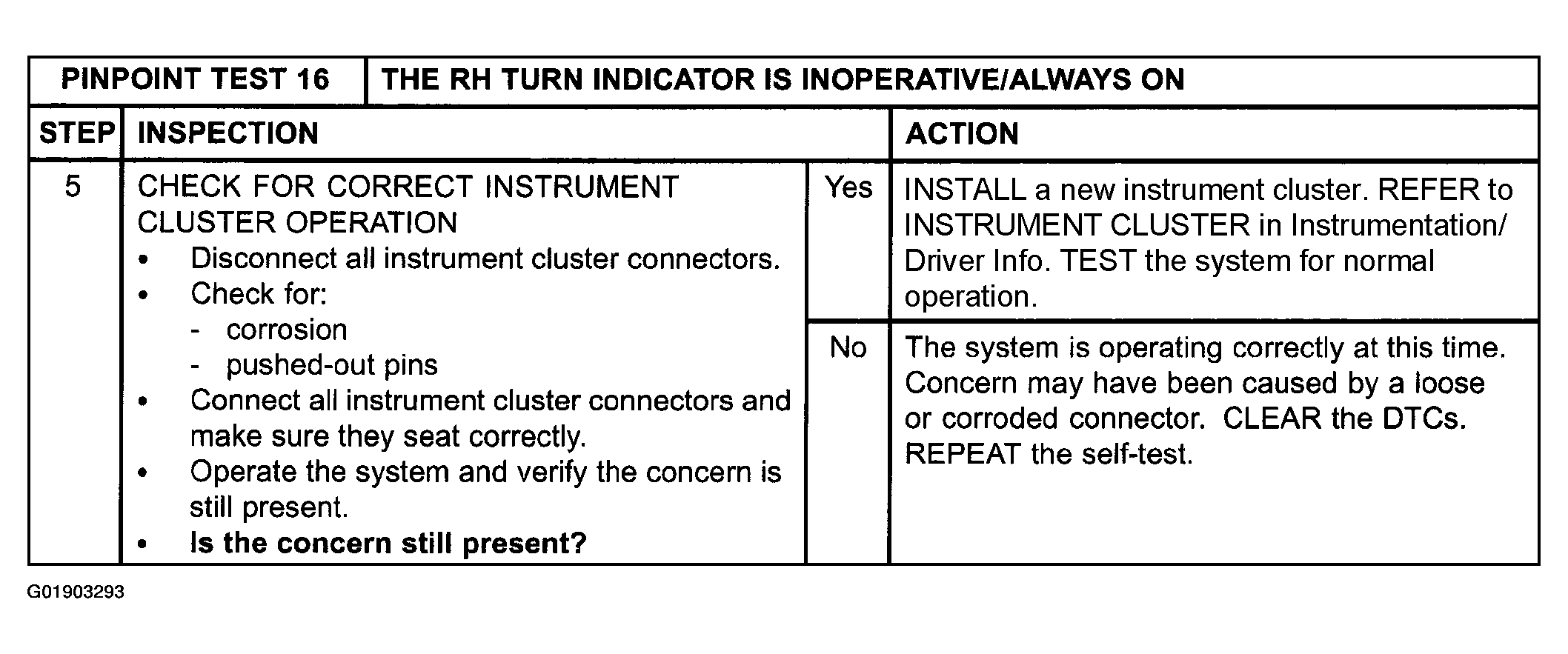

Fig 4: Pinpoint Test 16: RH Turn Indicator Is Inoperative/Always On (Step 5)

Courtesy of MAZDA MOTORS CORP.
