Pinpoint Test 13: The Anti-Lock Brake Indicator Is Inoperative

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

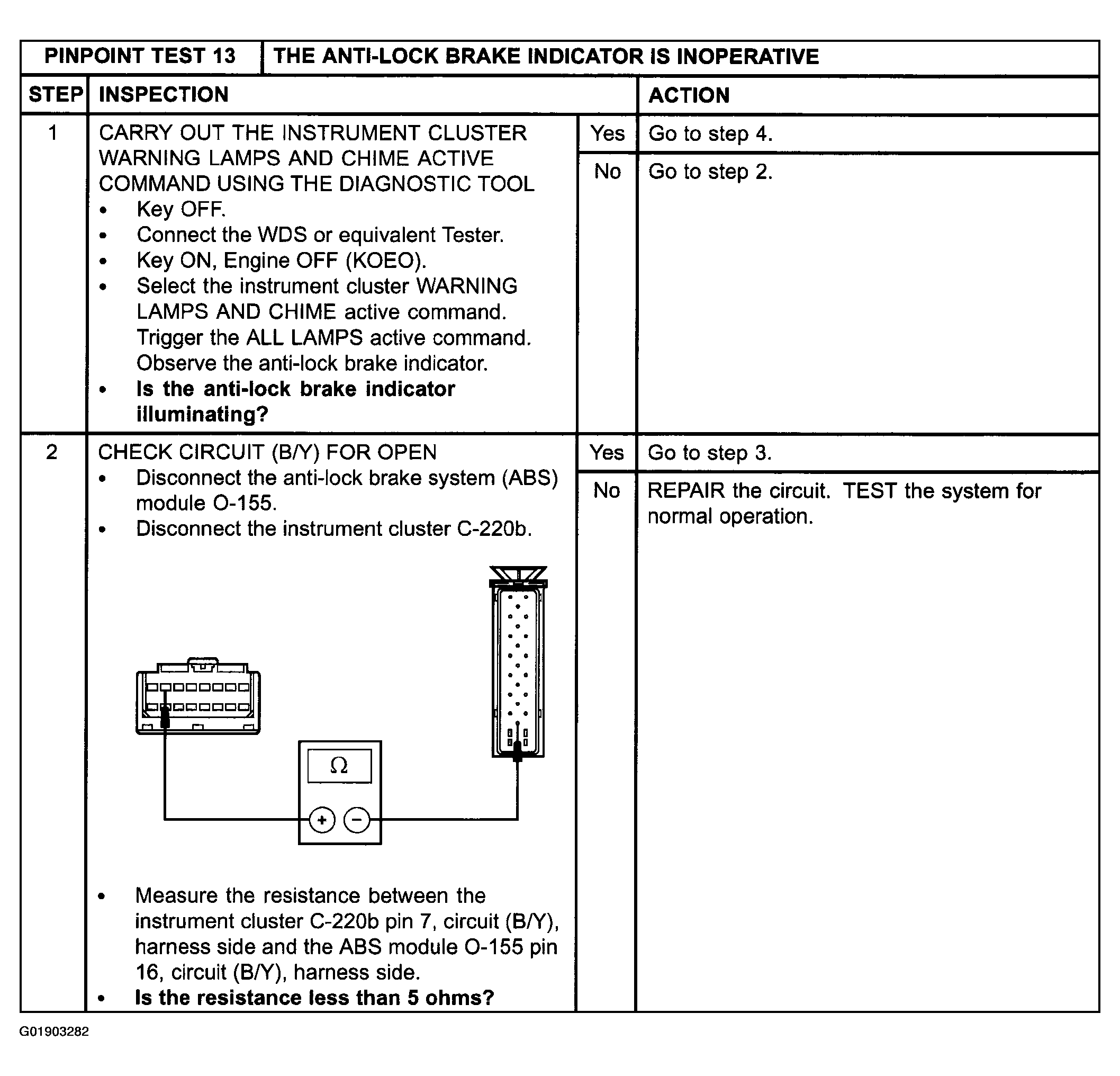

Fig 1: Pinpoint Test 13: Anti-Lock Brake Indicator Is Inoperative (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

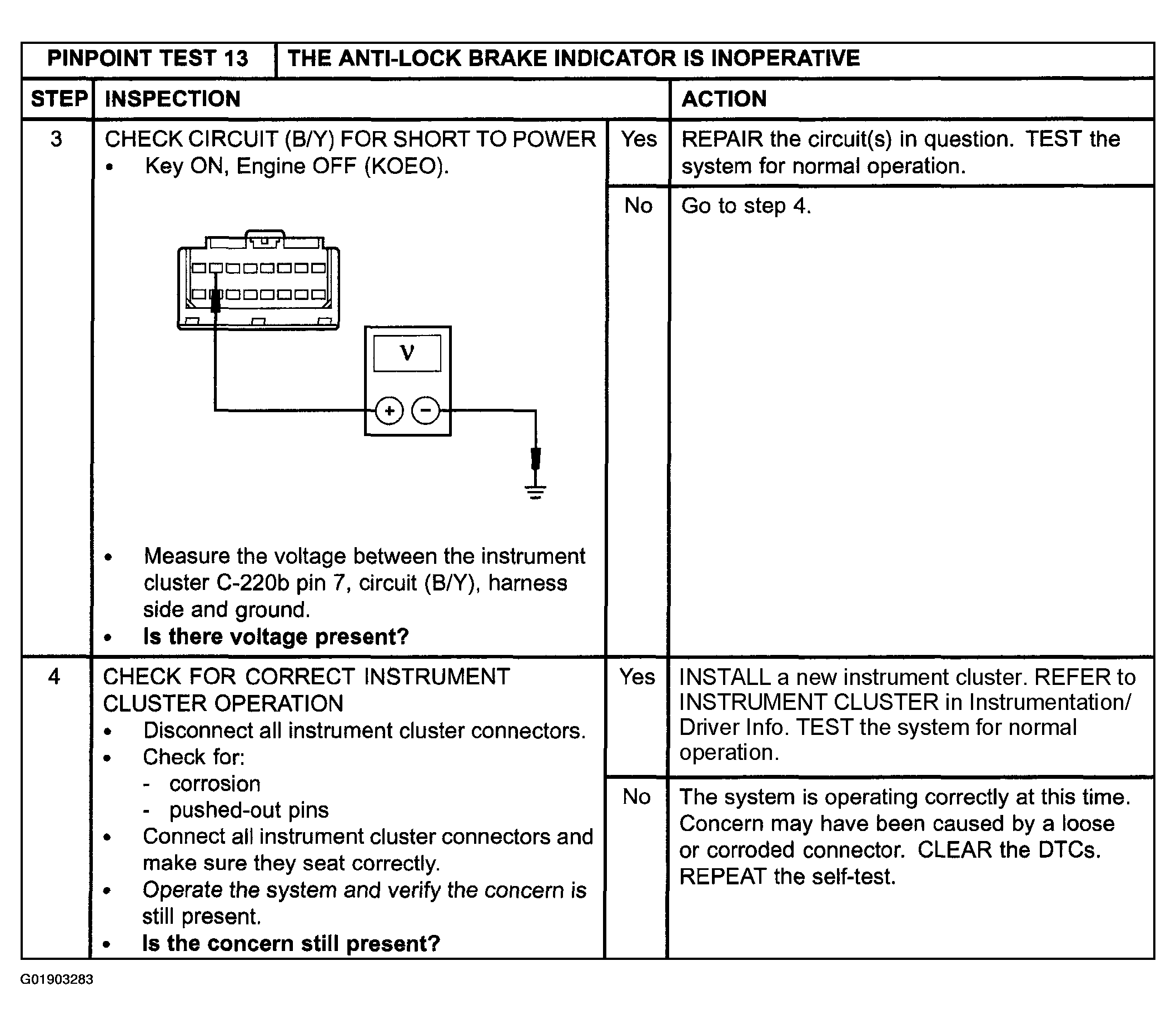

Fig 2: Pinpoint Test 13: Anti-Lock Brake Indicator Is Inoperative (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.
