Pinpoint Test 2: The Audio System Illumination Is Inoperative
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

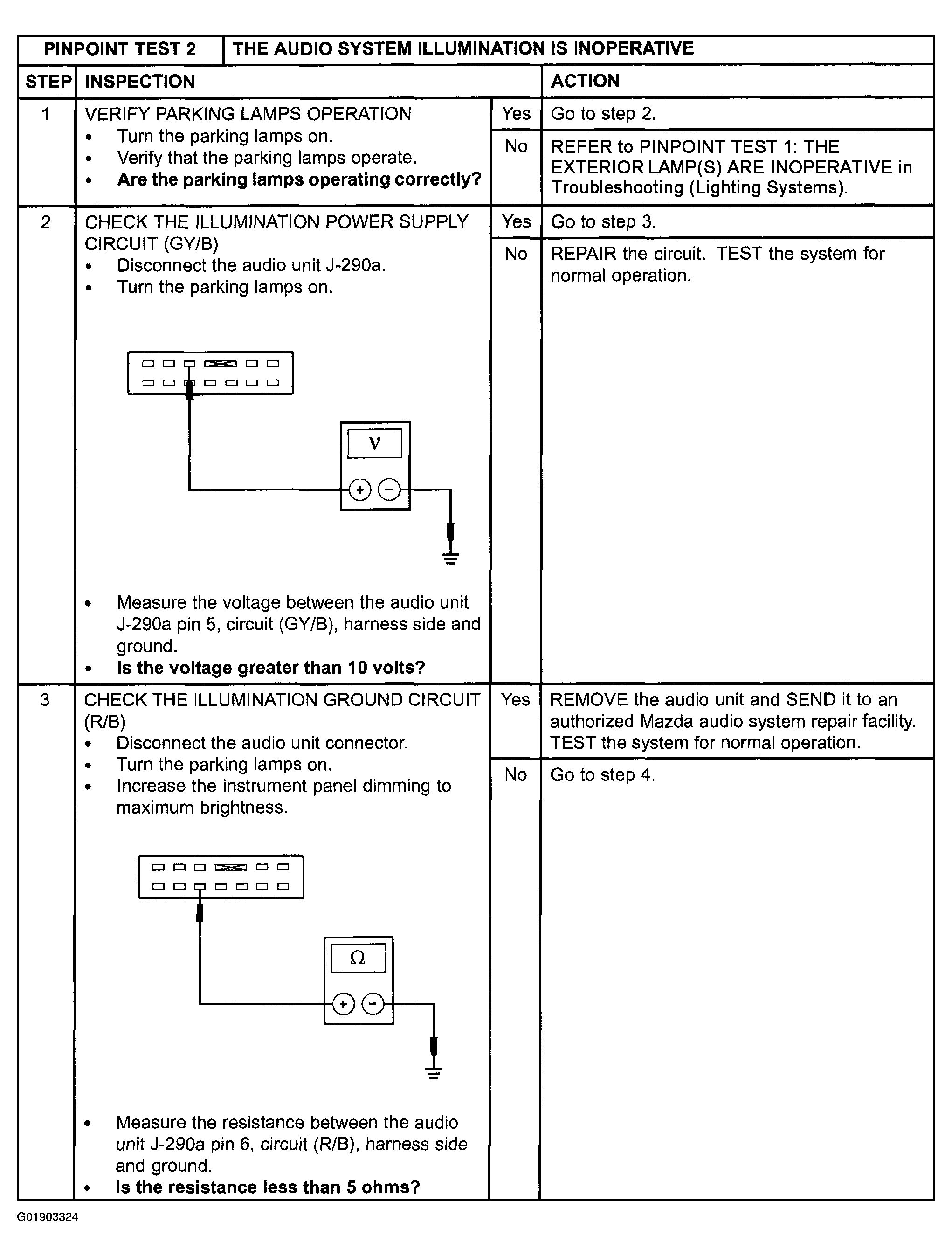

Fig 1: Pinpoint Test 2: Audio System Illumination Is Inoperative (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

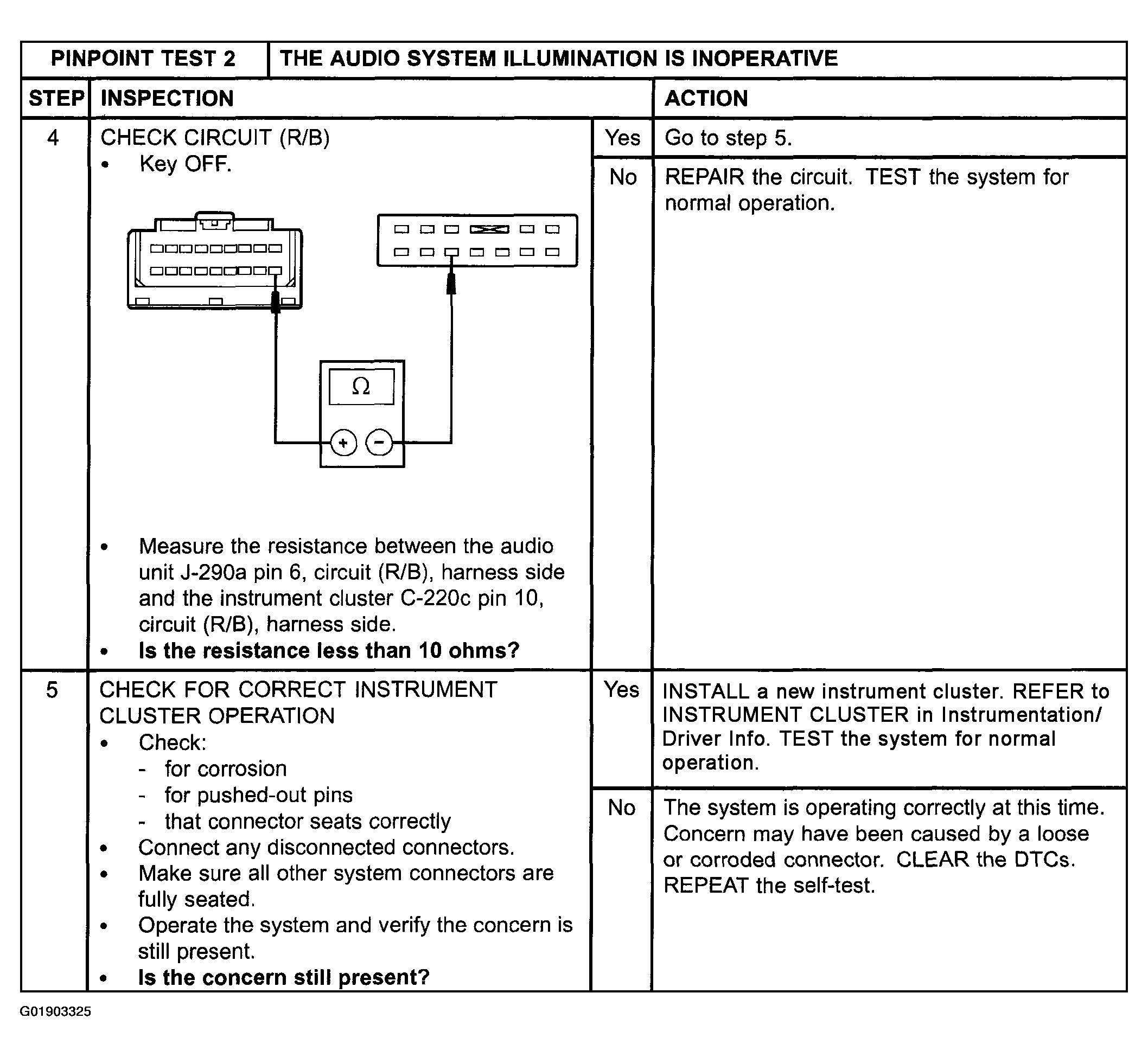

Fig 2: Pinpoint Test 2: Audio System Illumination Is Inoperative (2 Of 2)
