WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Pinpoint Test 1: Horn Does Not Sound (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Pinpoint Test 1: Horn Does Not Sound (Steps 3-4)
Courtesy of MAZDA MOTORS CORP.

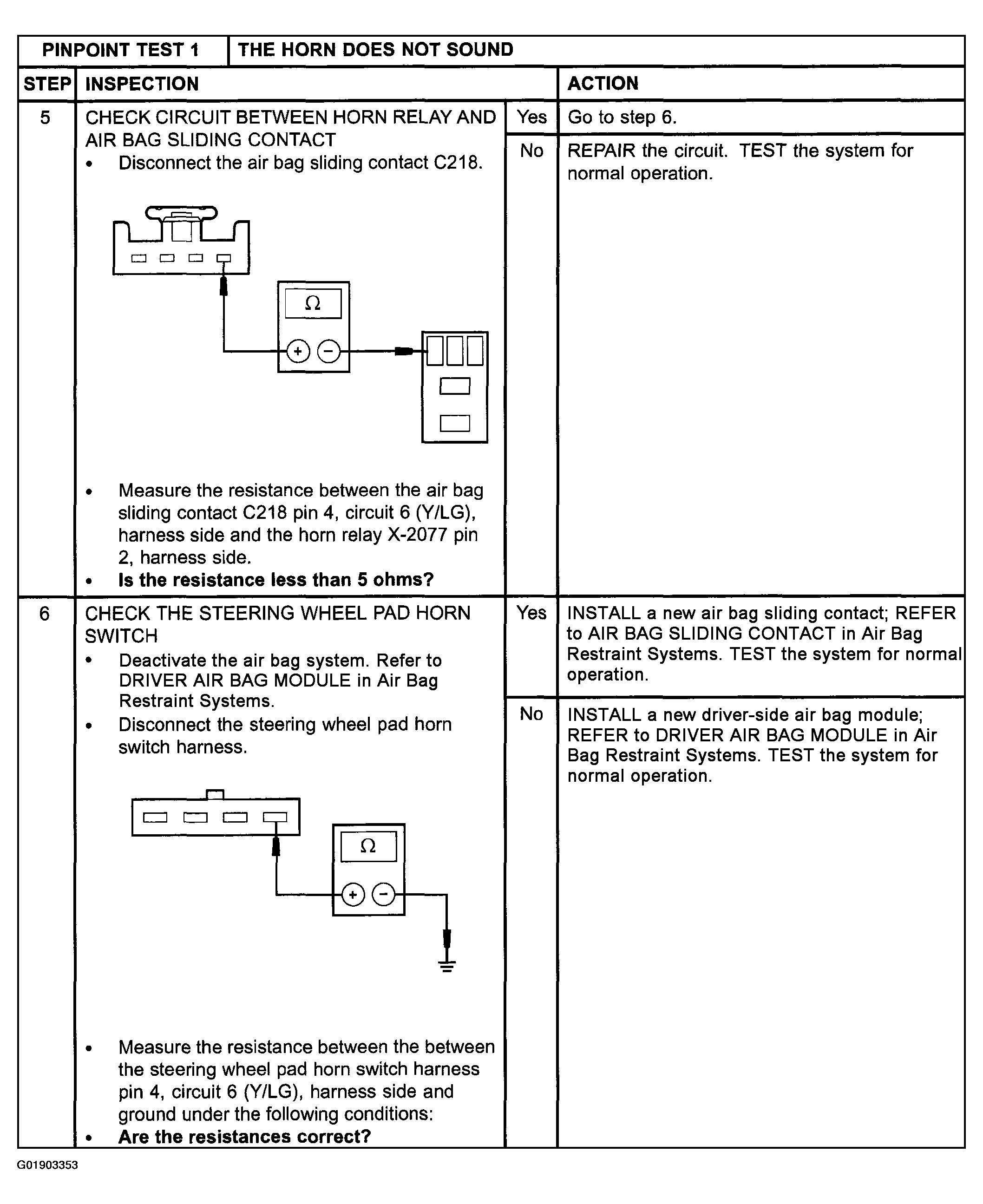

Fig 3: Pinpoint Test 1: Horn Does Not Sound (Steps 5-6)
Courtesy of MAZDA MOTORS CORP.
Fig 4: Pinpoint Test 1: Horn Does Not Sound (4 Of 5)
Courtesy of MAZDA MOTORS CORP.
Fig 5: Pinpoint Test 1: Horn Does Not Sound (5 Of 5)
