Pinpoint Test 2: The Key-In-Ignition Chime Is Inoperative/Does Not Operate Correctly
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

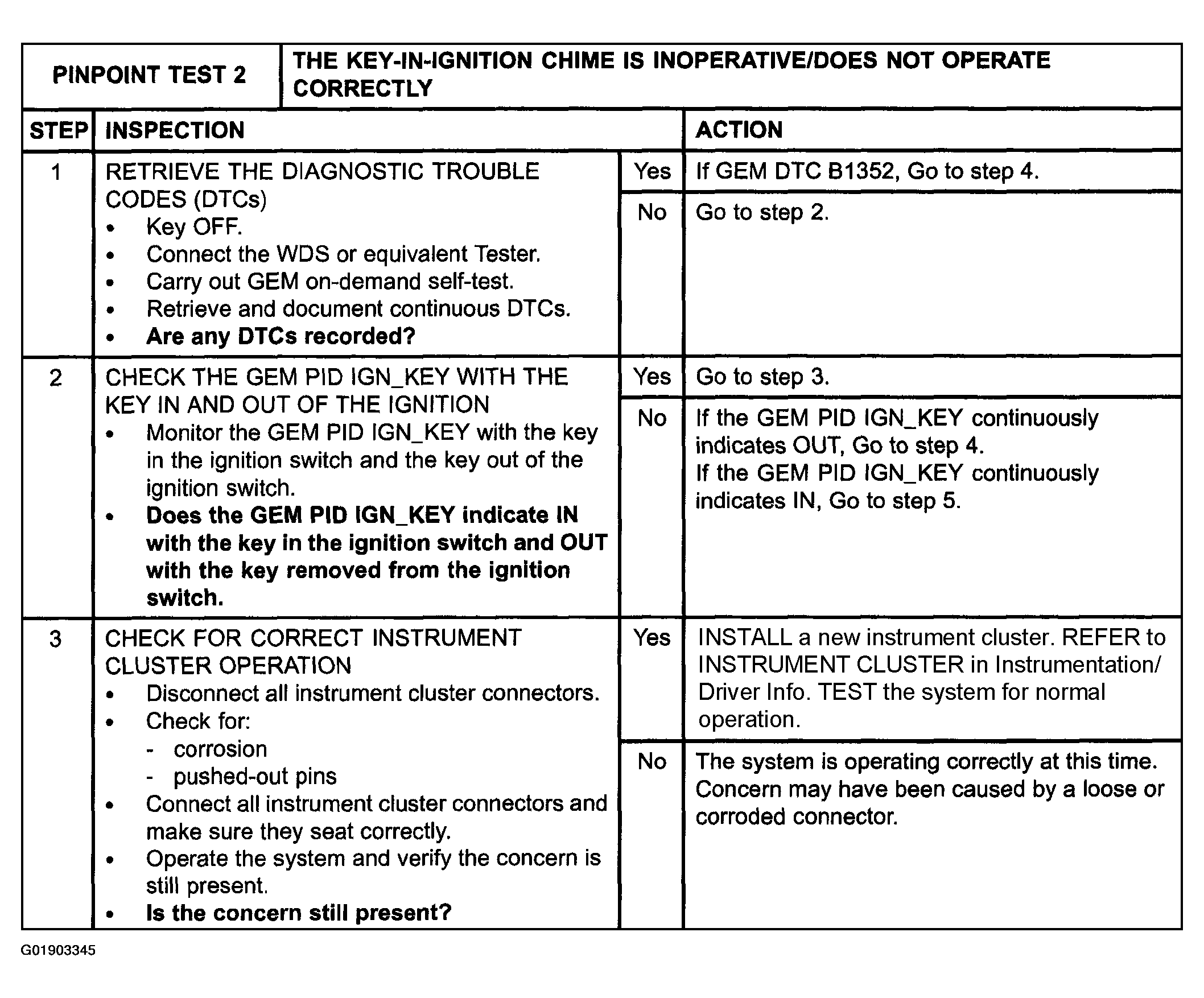

Fig 1: Pinpoint Test 2: Key-In-Ignition Chime Is Inoperative/Does Not Operate Correctly (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

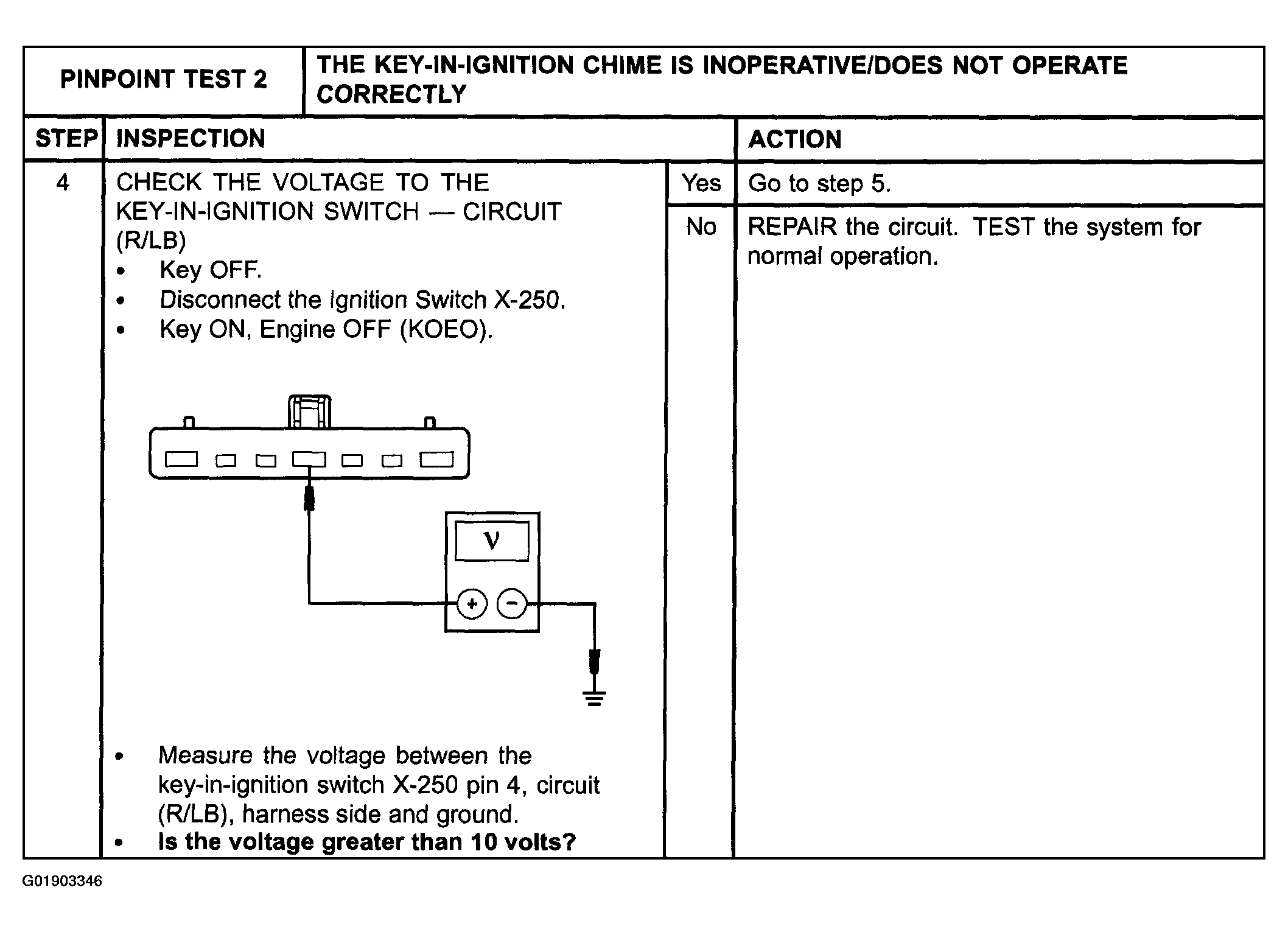

Fig 2: Pinpoint Test 2: Key-In-Ignition Chime Is Inoperative/Does Not Operate Correctly (Step 4)
Courtesy of MAZDA MOTORS CORP.

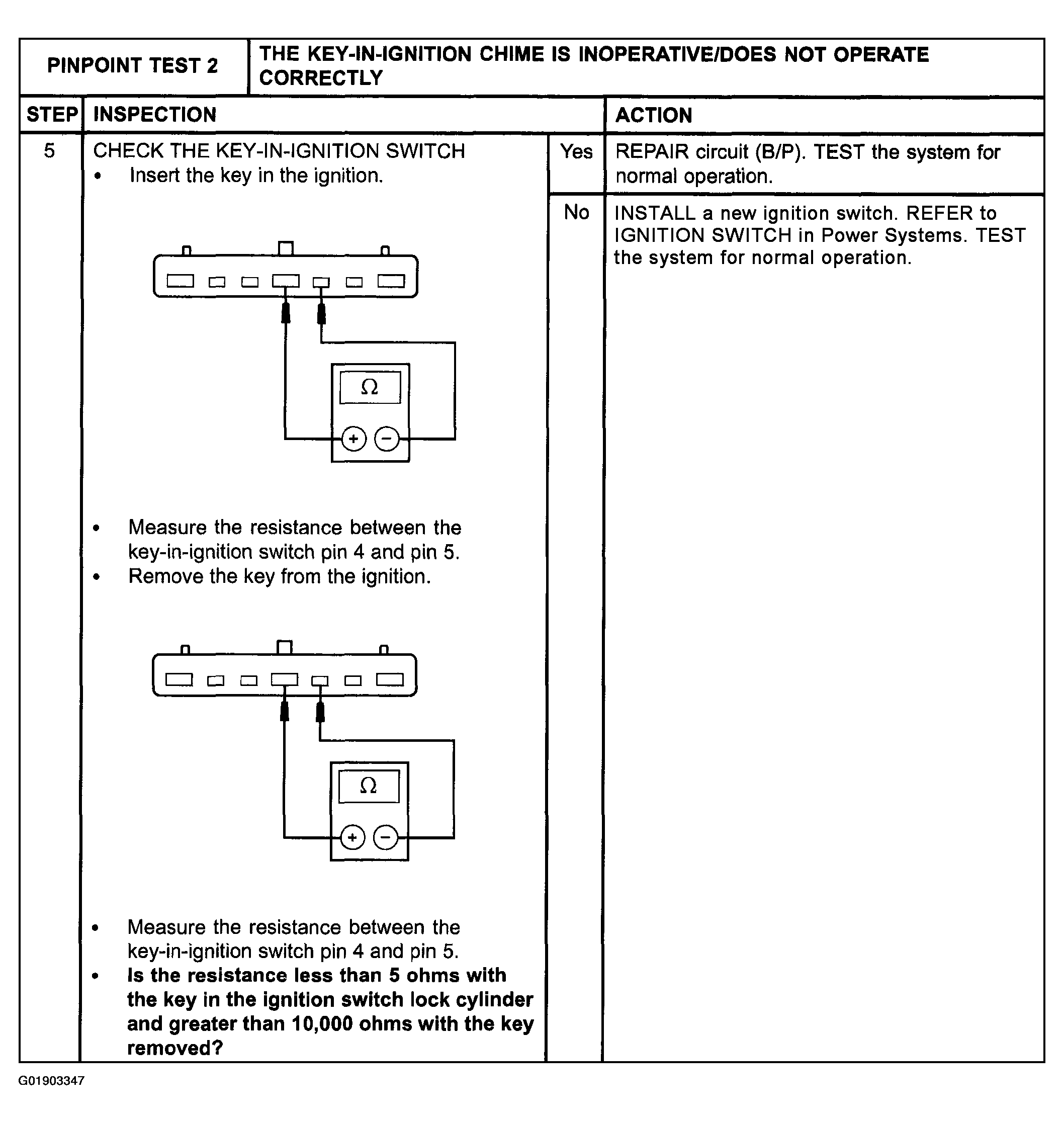

Fig 3: Pinpoint Test 2: Key-In-Ignition Chime Is Inoperative/Does Not Operate Correctly (Step 5)
