Pinpoint Test 1: The Safety Belt Warning Chime Is Inoperative/Does Not Operate Correctly

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

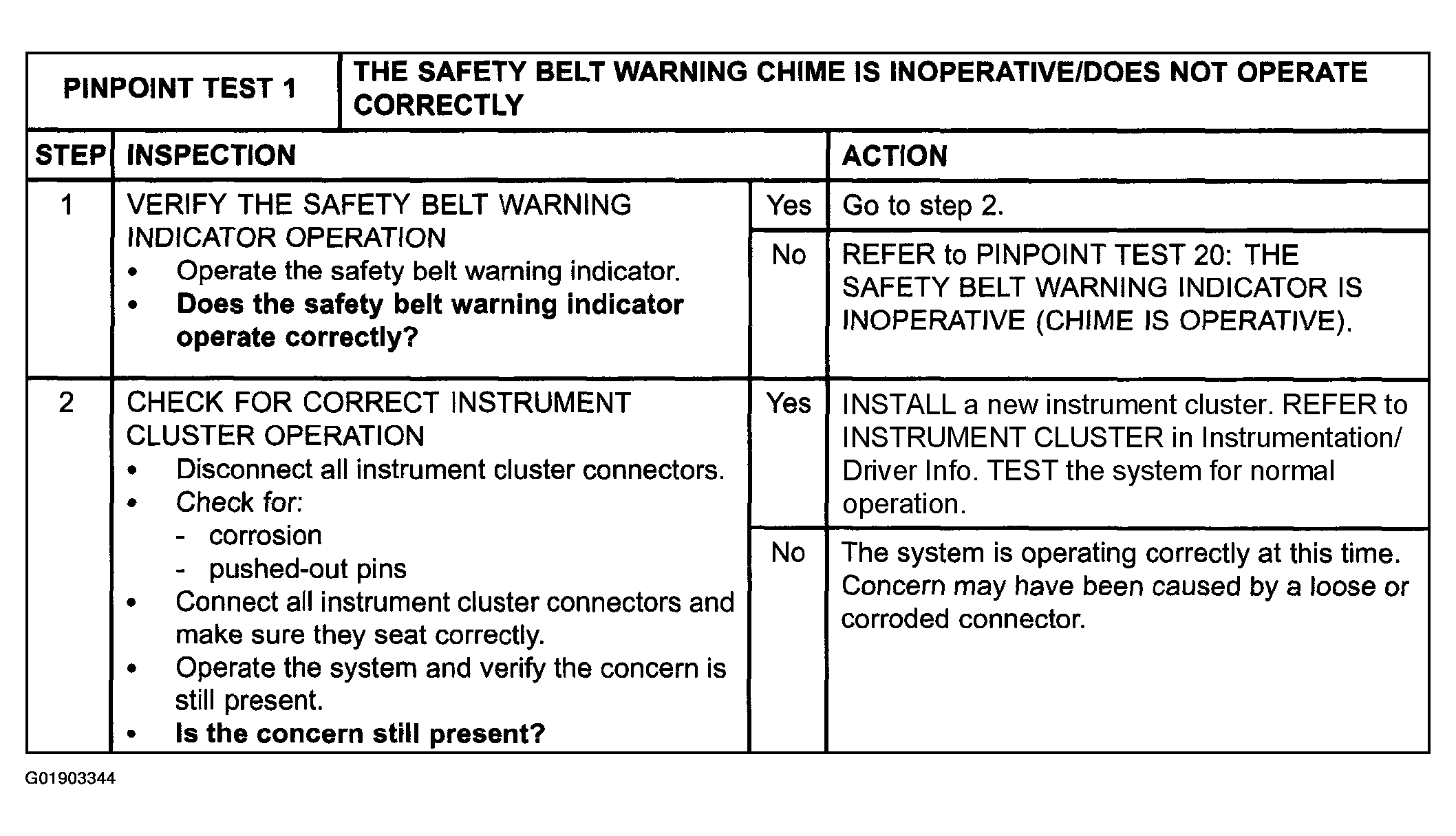

Fig 1: Pinpoint Test 1: Safety Belt Warning Chime Is Inoperative/Does Not Operate Correctly
G01903344Courtesy of MAZDA MOTORS CORP.
