WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

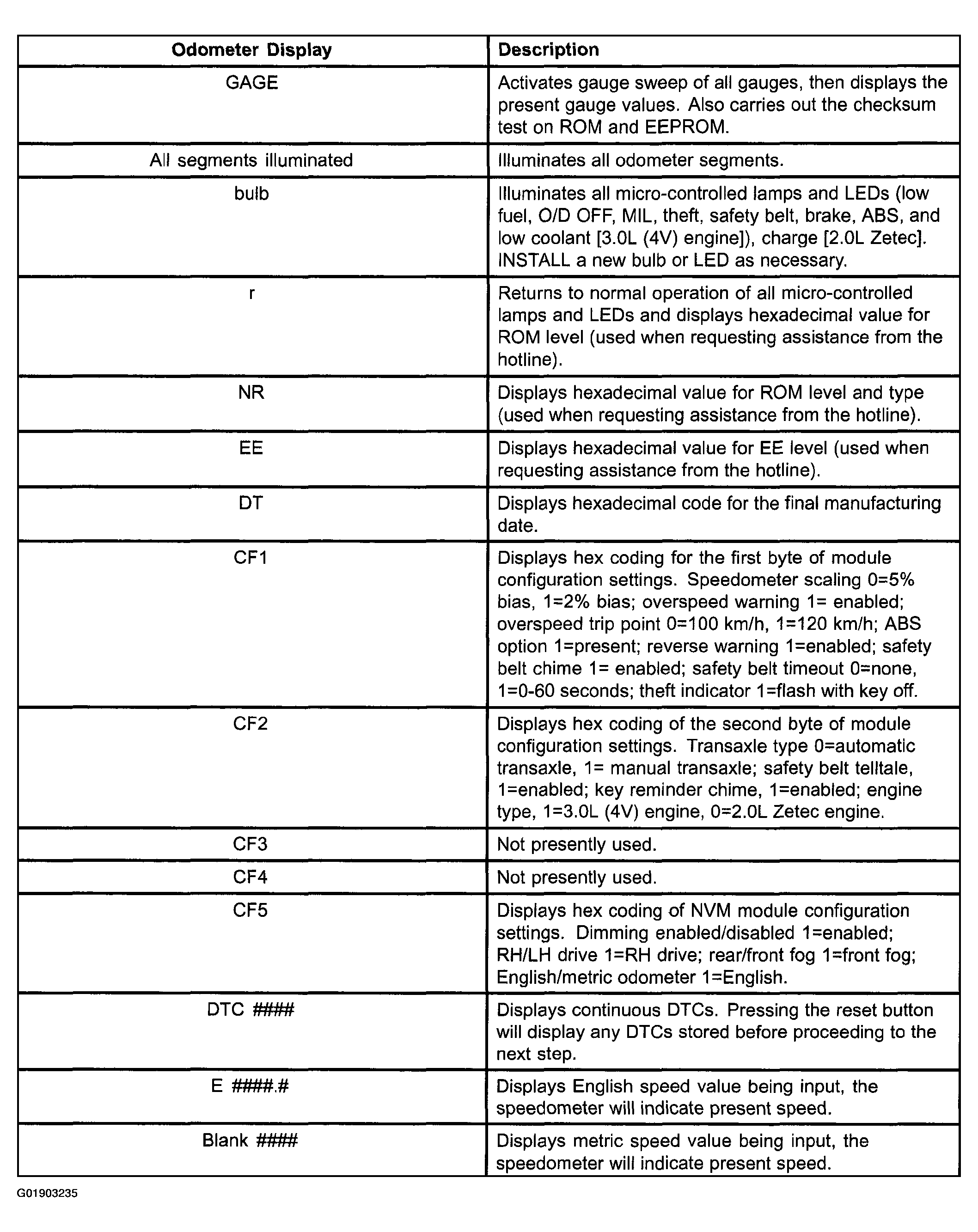

Fig 1: Instrument Cluster Self-Diagnostic Mode 2 (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

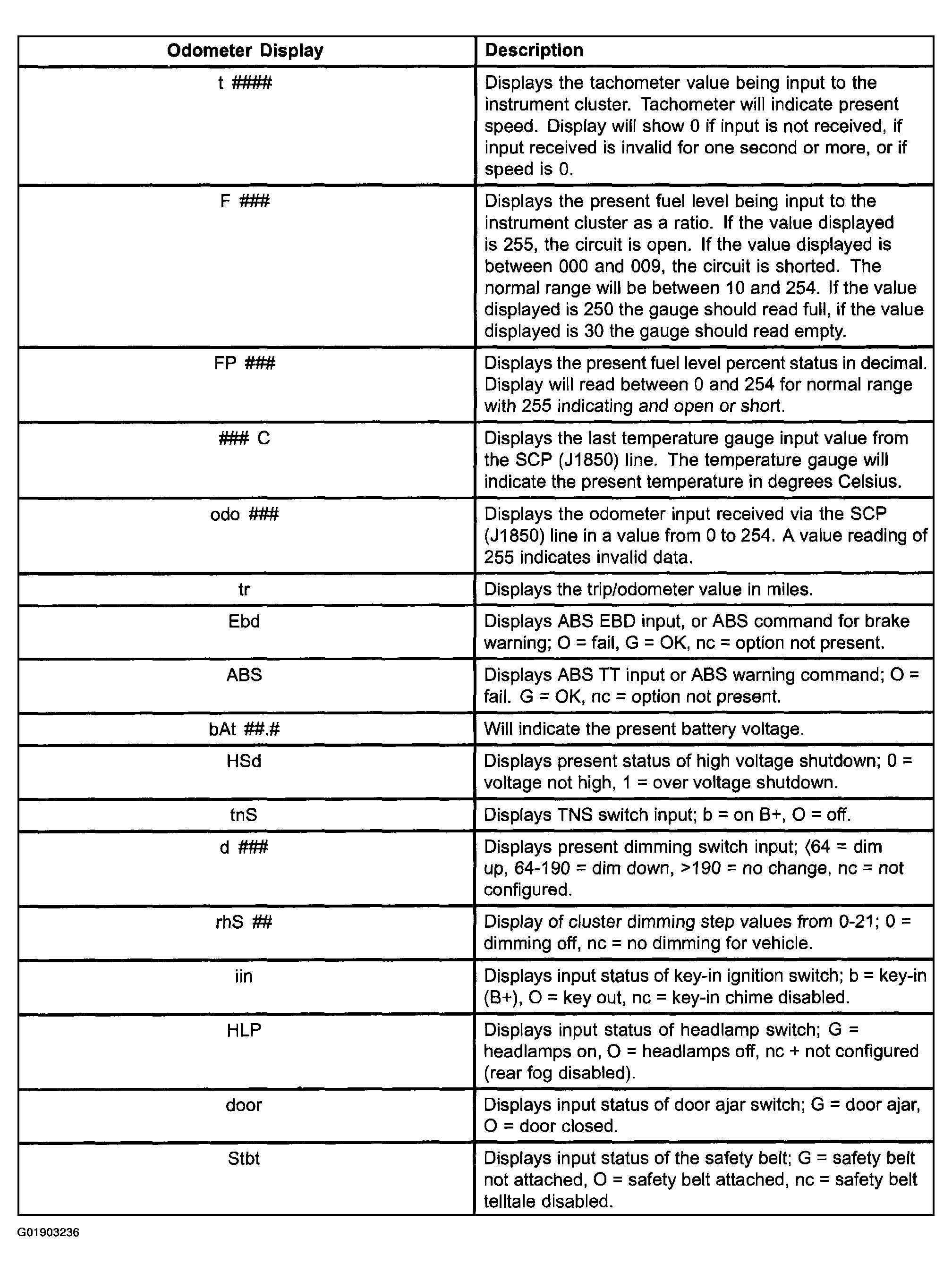

Fig 2: Instrument Cluster Self-Diagnostic Mode 2 (2 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 3: Instrument Cluster Self-Diagnostic Mode 2 (3 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 4: Instrument Cluster Self-Diagnostic Mode 2 (4 Of 4)
