Instrument Cluster Diagnostic Trouble Code (DTC) Index

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

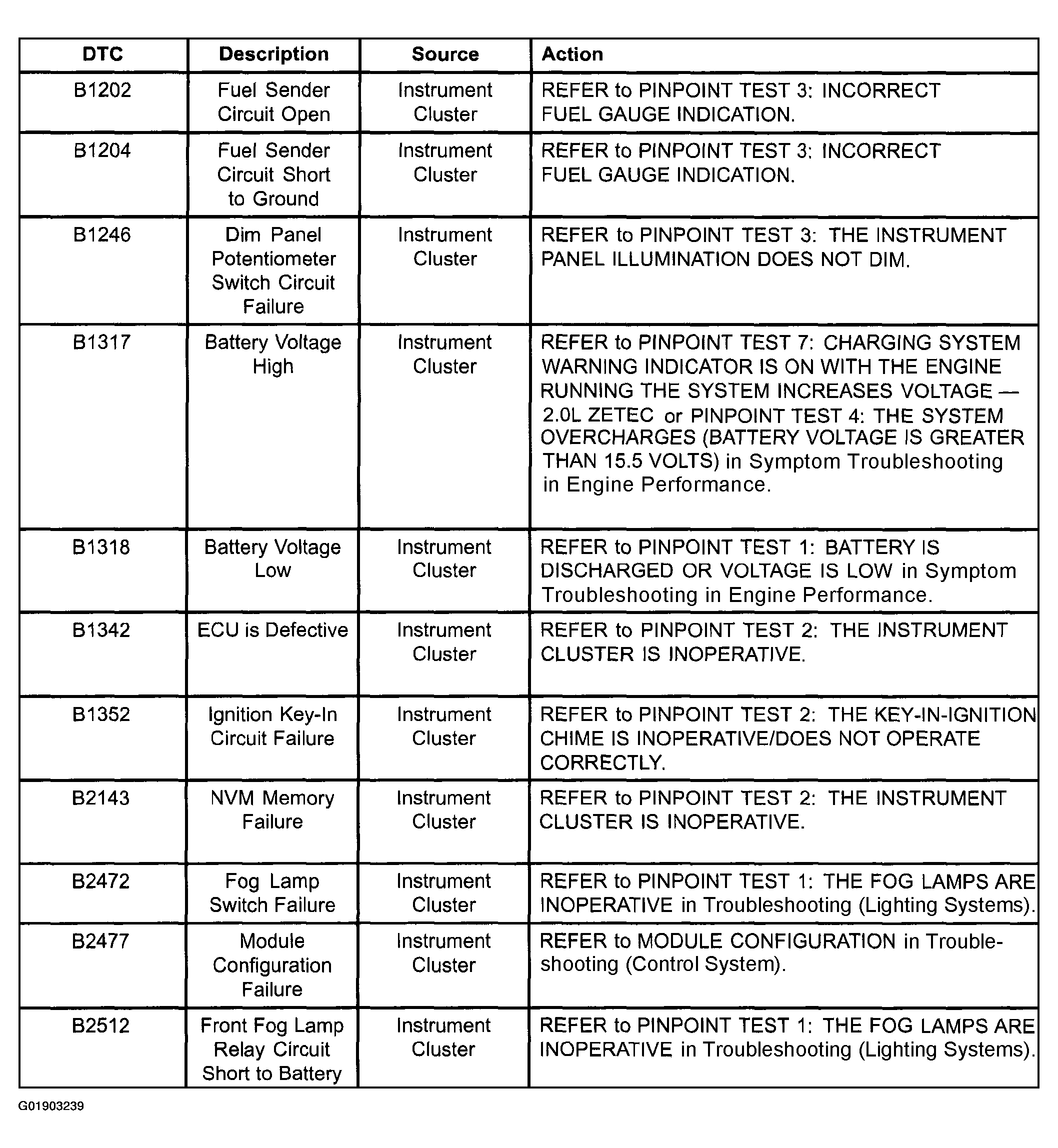

Fig 1: Instrument Cluster Diagnostic Trouble Code (DTC) Index (B1202, B1204, B1246, B1317, B1318, B1342, B1352, B2143, B2472, B2477, B2512)
G01903239Courtesy of MAZDA MOTORS CORP.

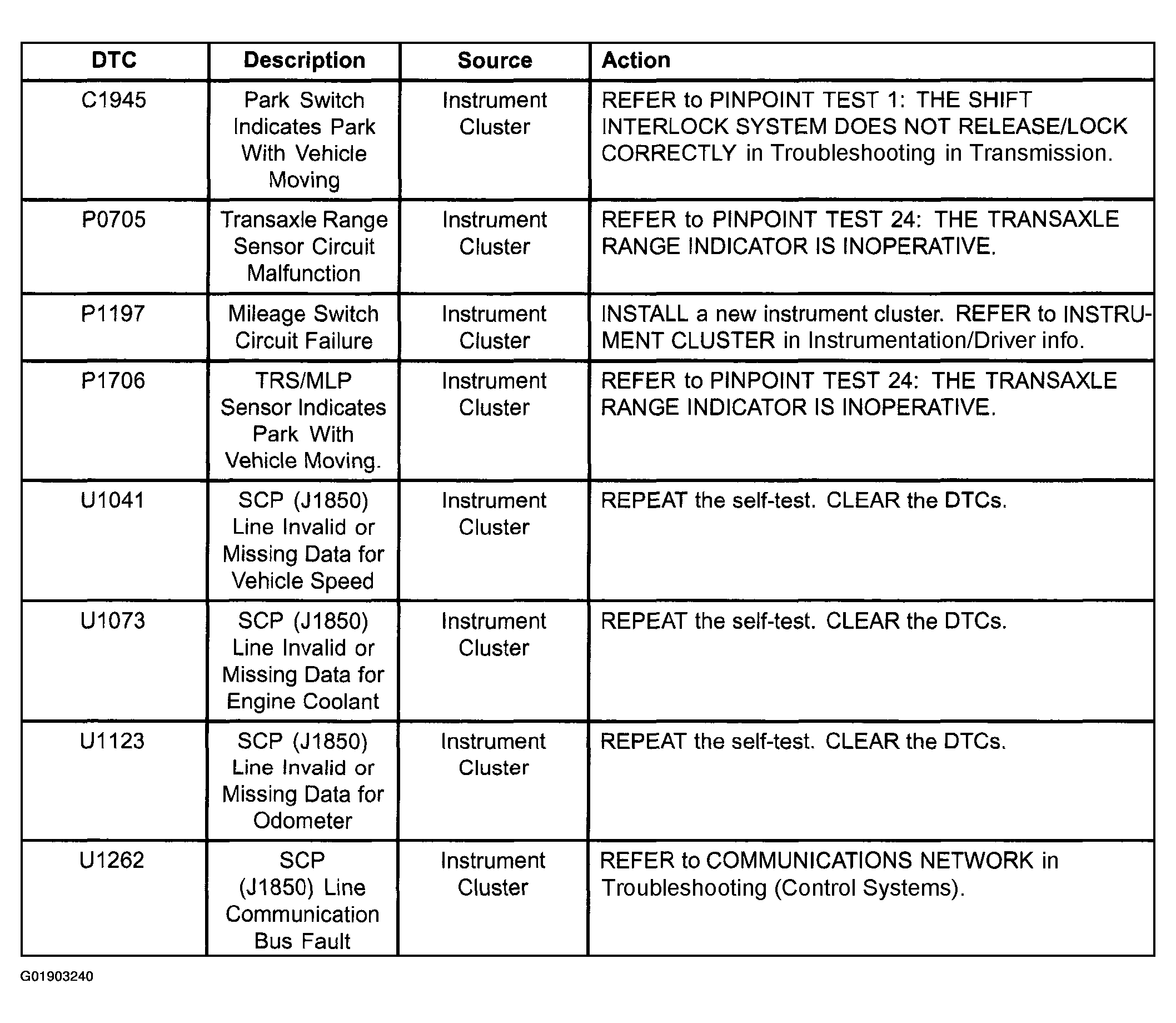

Fig 2: Instrument Cluster Diagnostic Trouble Code (DTC) Index (C1945, P0705, P1197, P1706, U1041, U1073, U1123, U1262)
G01903240Courtesy of MAZDA MOTORS CORP.
