Pinpoint Test 6: The Windshield Washer Pump Is Inoperative

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

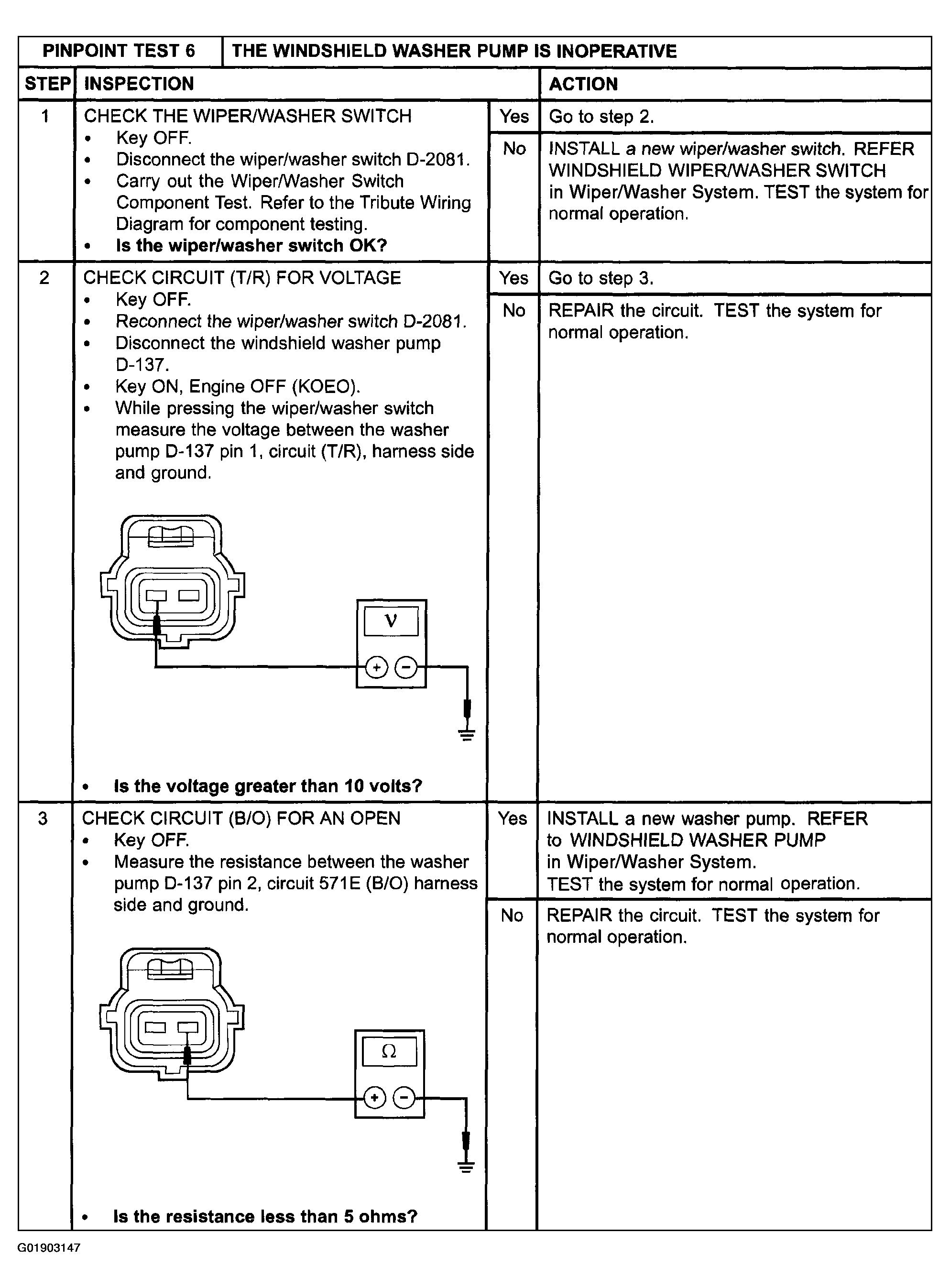

Fig 1: Pinpoint Test 6: Windshield Washer Pump Is Inoperative
G01903147Courtesy of MAZDA MOTORS CORP.
