Pinpoint Test 5: One Turn Signal/Hazard Lamp Is Never On: Notes

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

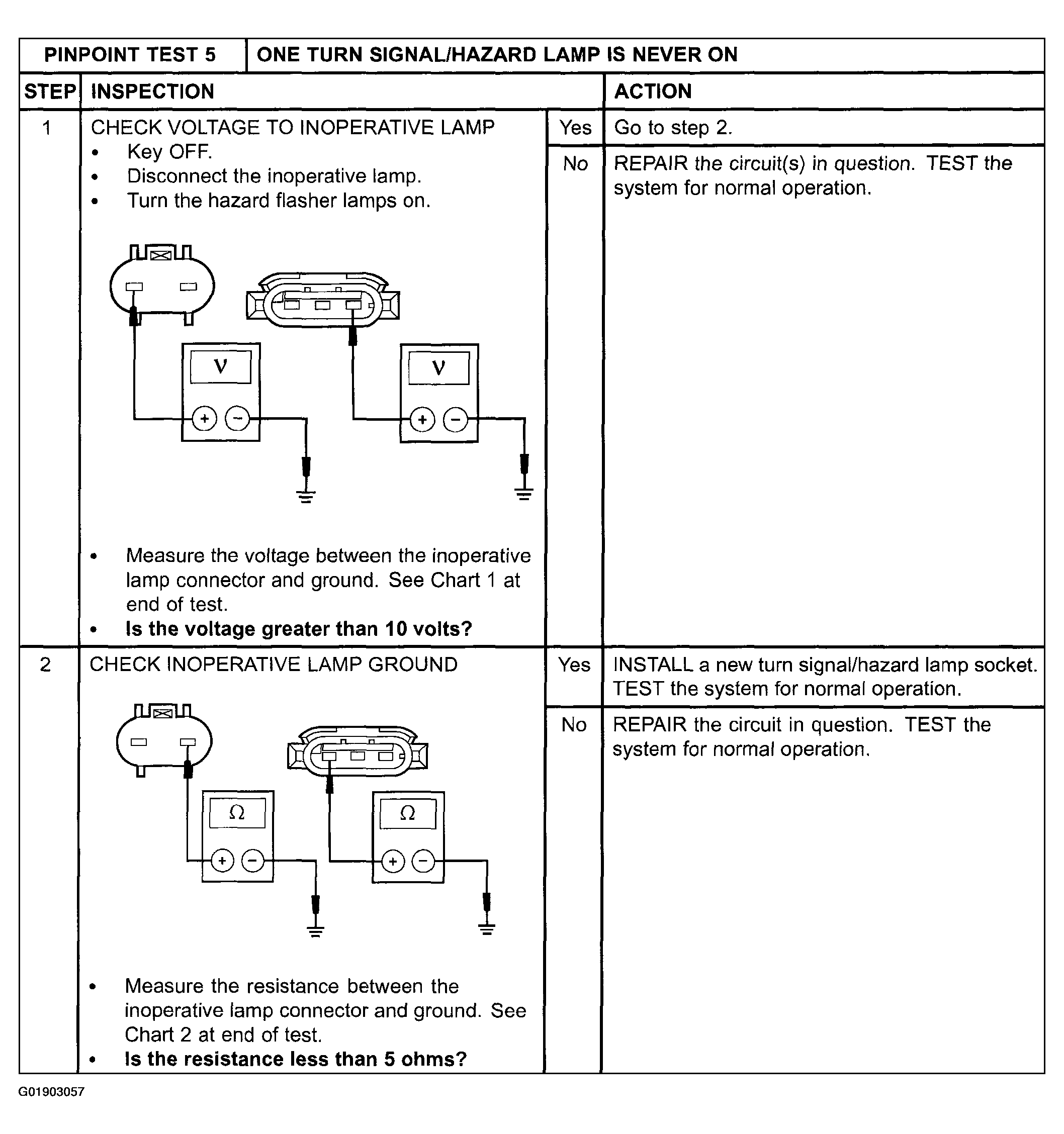

Fig 1: Pinpoint Test 5: One Turn Signal/Hazard Lamp Is Never On
G01903057Courtesy of MAZDA MOTORS CORP.
