Pinpoint Test 2: One Or More STOPLAMPS Are Inoperative: Notes

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

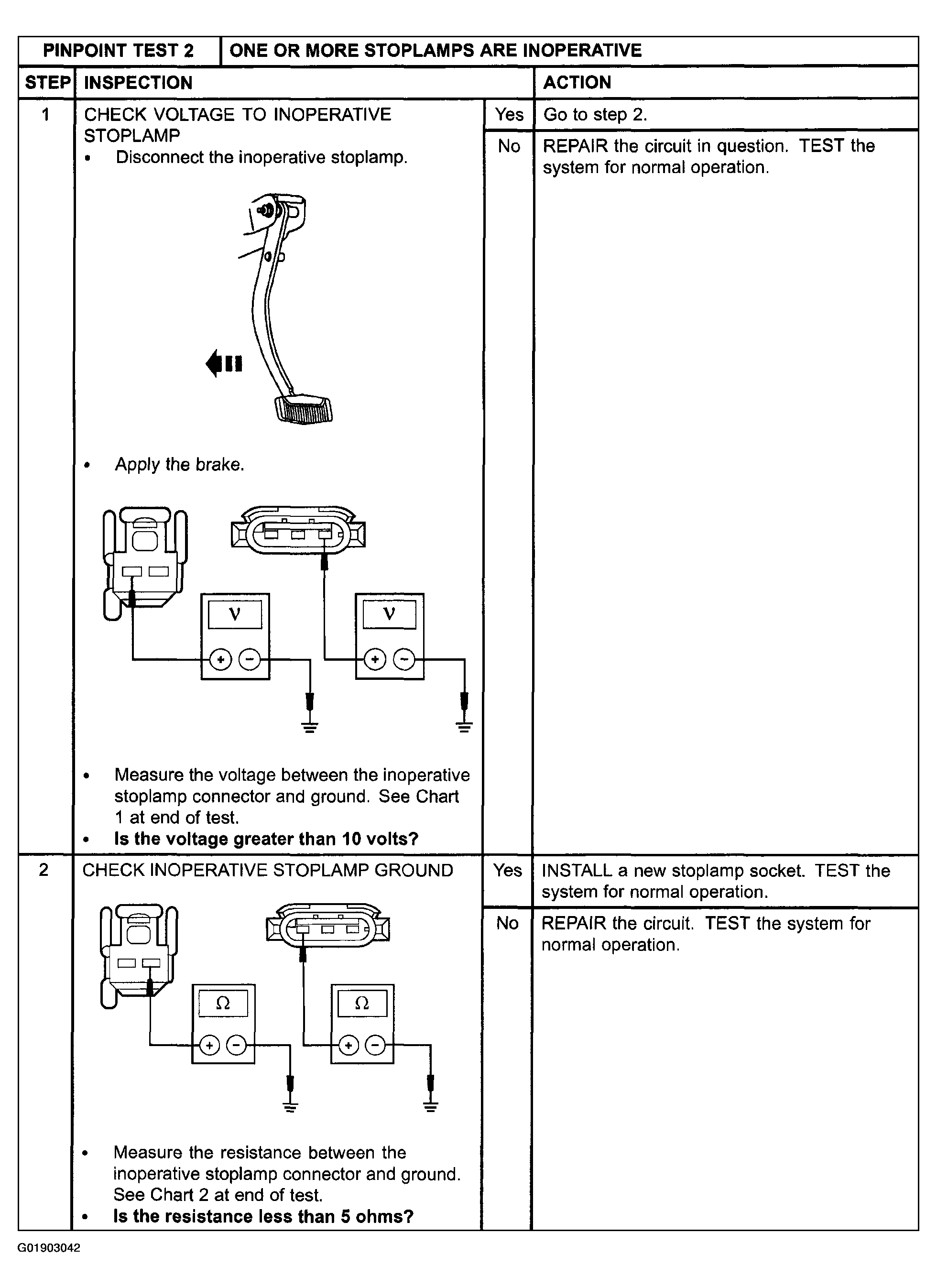

Fig 1: Pinpoint Test 2: One Or More Stoplamps Are Inoperative
G01903042Courtesy of MAZDA MOTORS CORP.
