Pinpoint Test 5: The Demand Lighting Is Inoperative
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

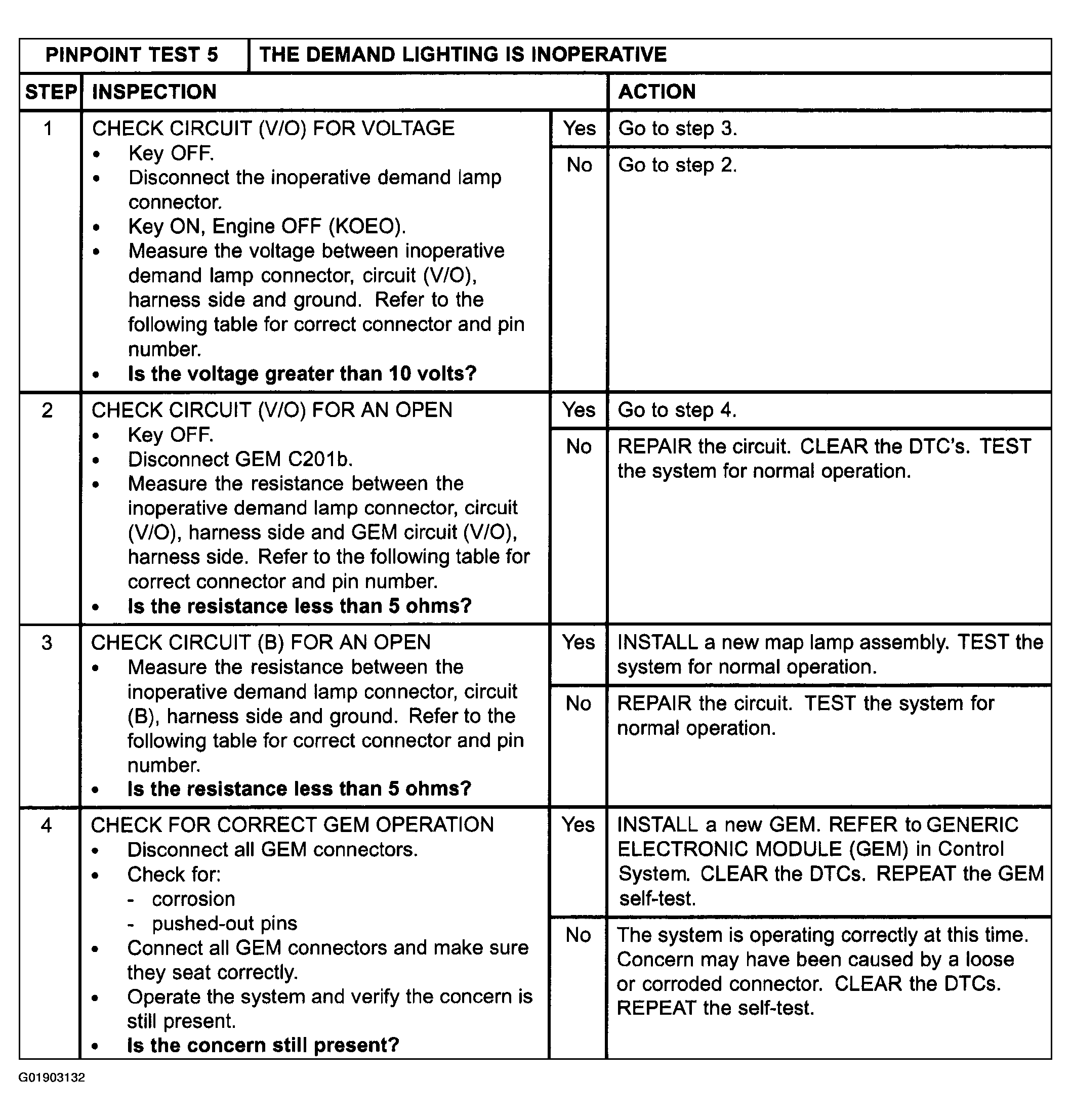

Fig 1: Pinpoint Test 5: Demand Lighting Is Inoperative (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Pinpoint Test 5: Demand Lighting Is Inoperative (2 Of 2)
