Pinpoint Test 3: The Interior Lamps Do Not Turn On With One Door Open: Notes
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

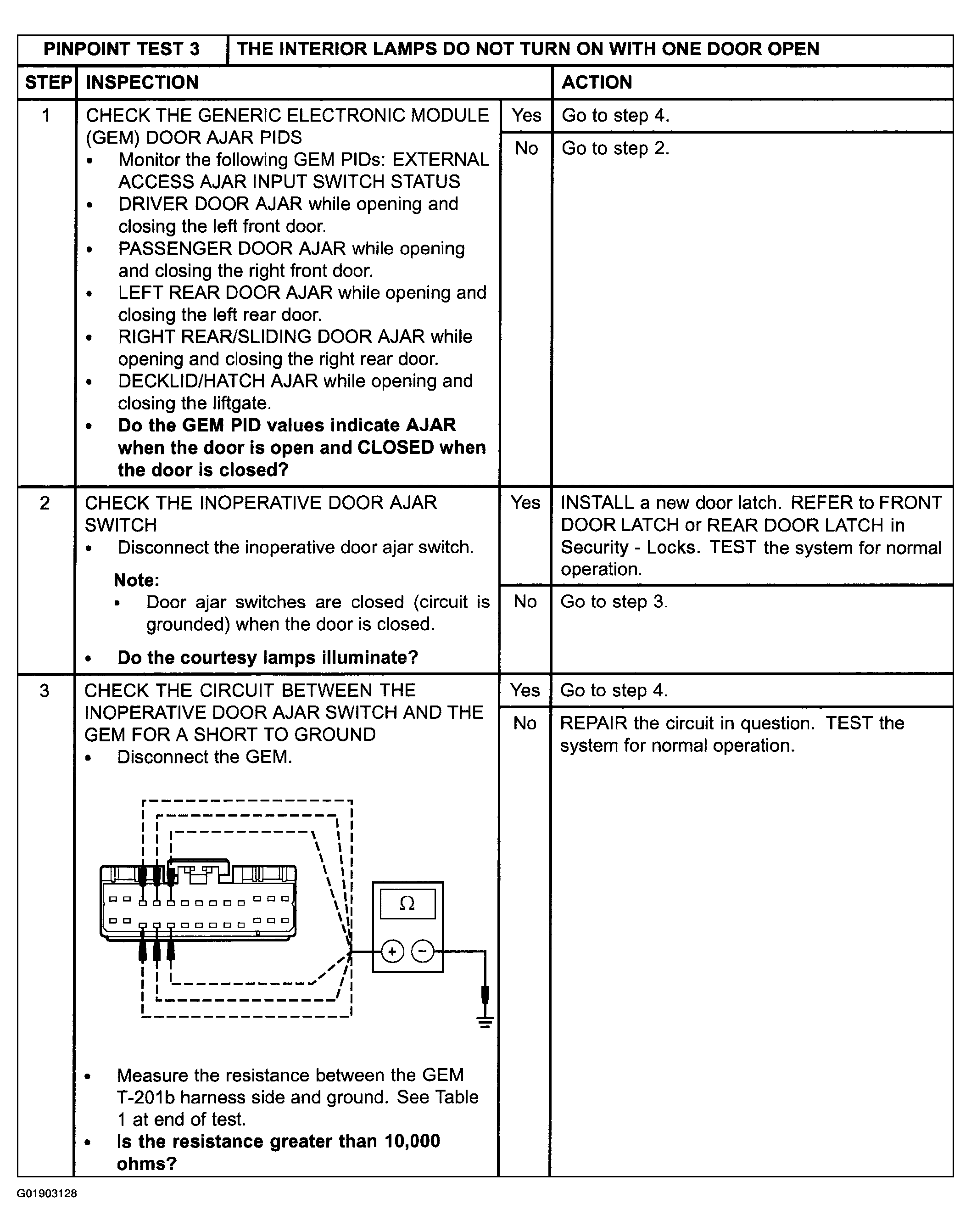

Fig 1: Pinpoint Test 3: Interior Lamps Do Not Turn On With One Door Open (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

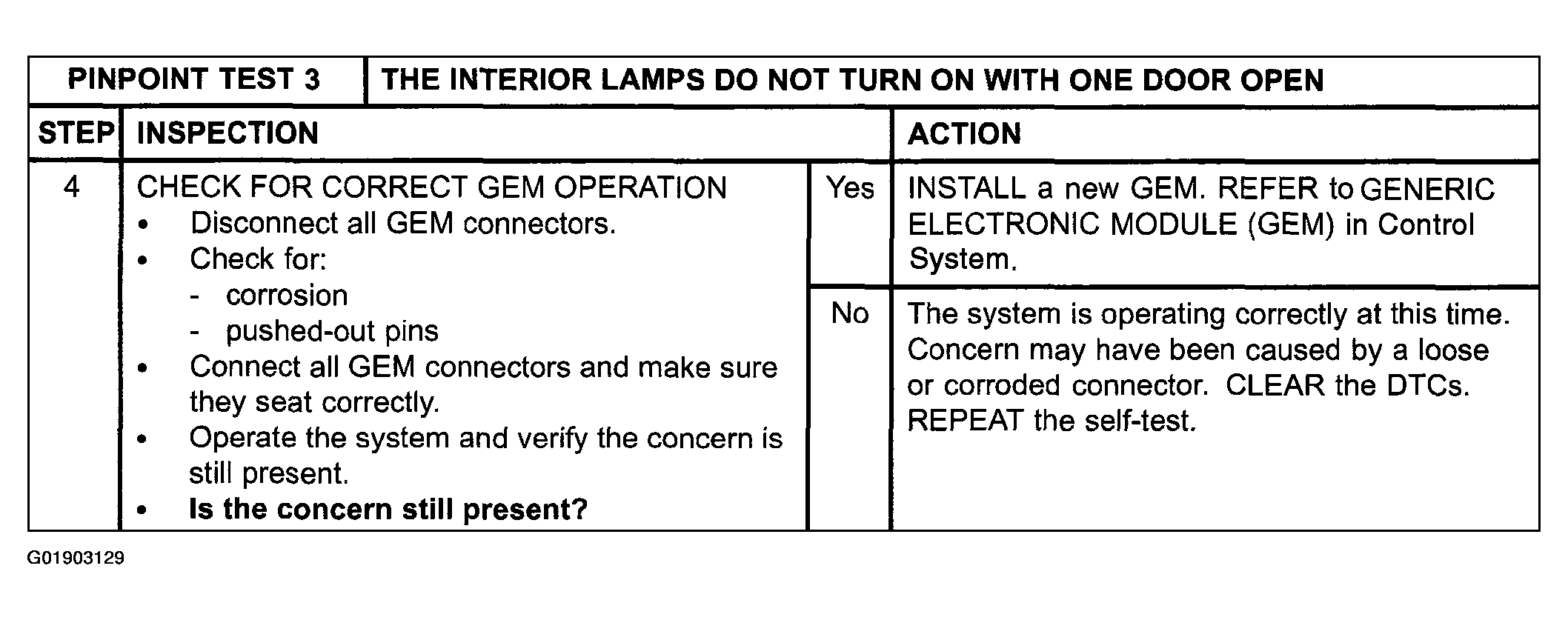

Fig 2: Pinpoint Test 3: Interior Lamps Do Not Turn On With One Door Open (Step 4)
