Pinpoint Test 1: The Interior Lamps Are Inoperative
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

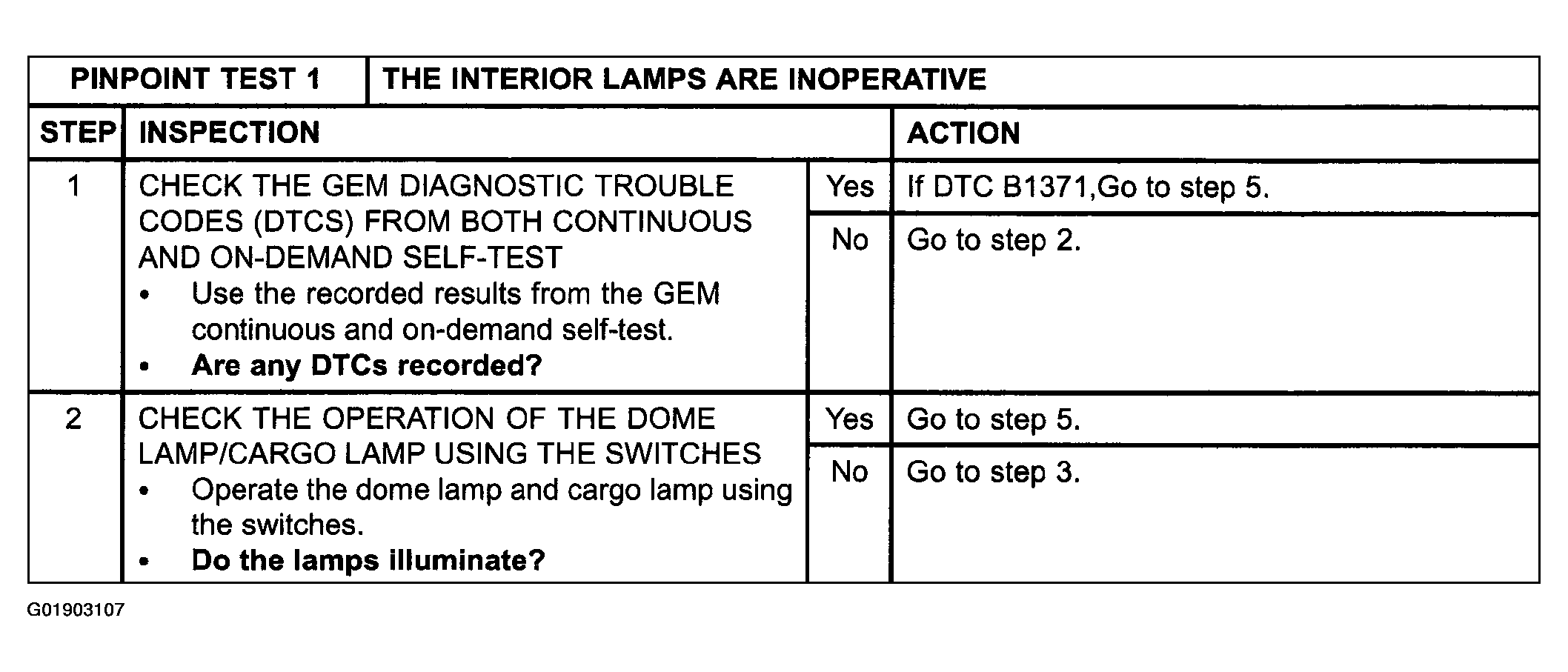

Fig 1: Pinpoint Test 1: Interior Lamps Are Inoperative (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

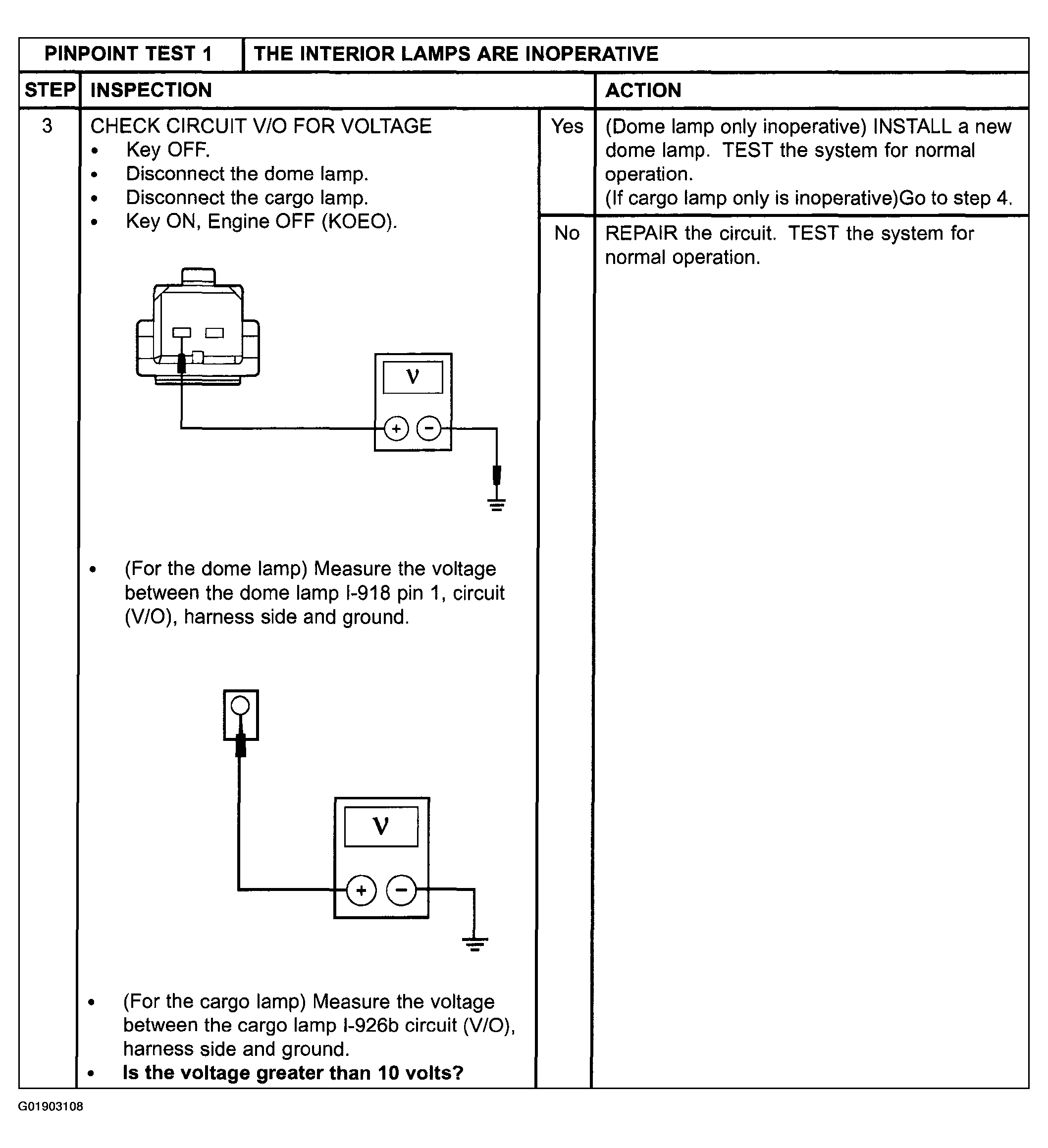

Fig 2: Pinpoint Test 1: Interior Lamps Are Inoperative (Step 3)
Courtesy of MAZDA MOTORS CORP.

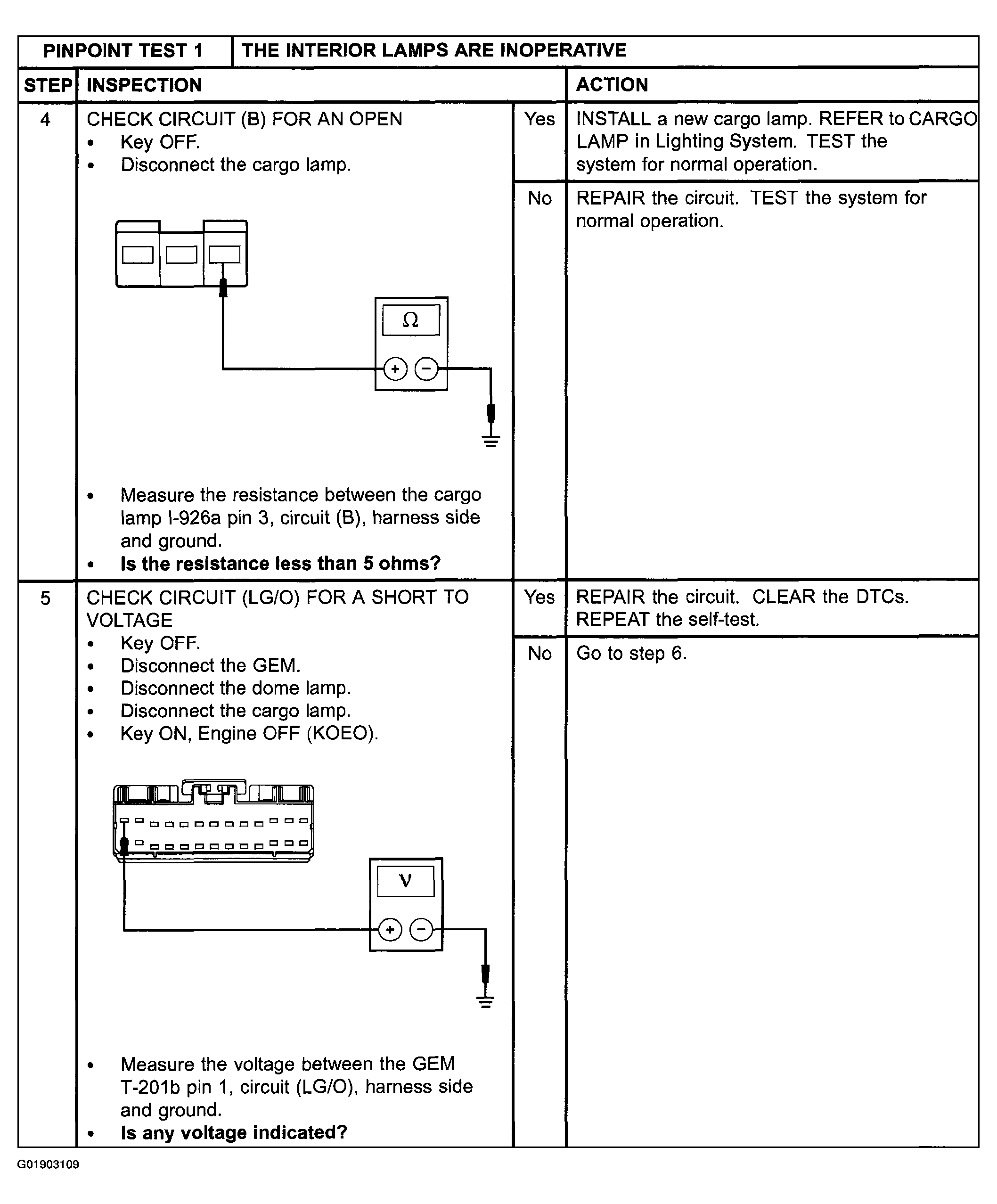

Fig 3: Pinpoint Test 1: Interior Lamps Are Inoperative (Steps 4-5)
Courtesy of MAZDA MOTORS CORP.

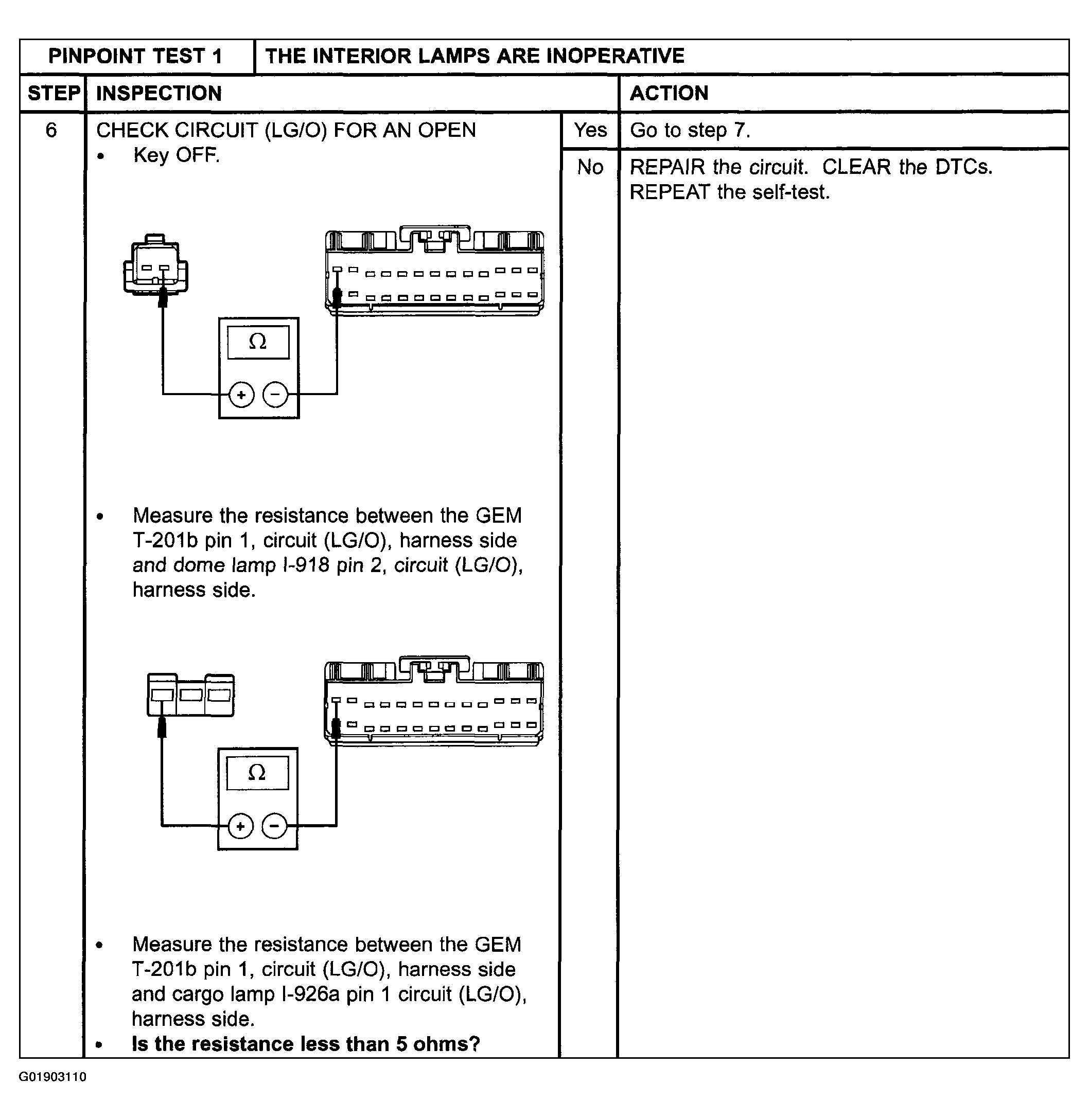

Fig 4: Pinpoint Test 1: Interior Lamps Are Inoperative (Step 6)
Courtesy of MAZDA MOTORS CORP.

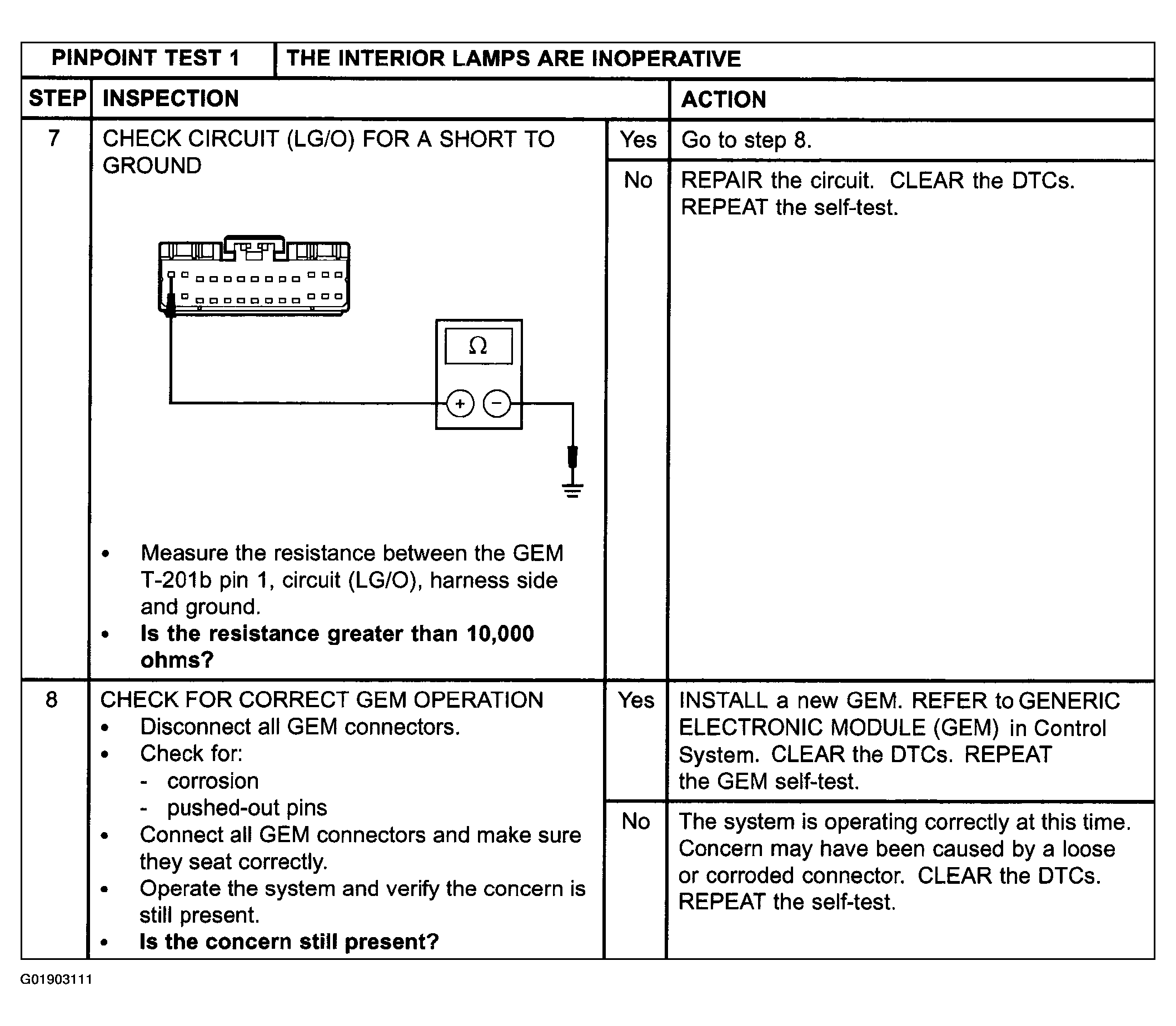

Fig 5: Pinpoint Test 1: Interior Lamps Are Inoperative (Steps 7-8)
