Pinpoint Test 7: The Flash-To-Pass Feature Is Inoperative

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

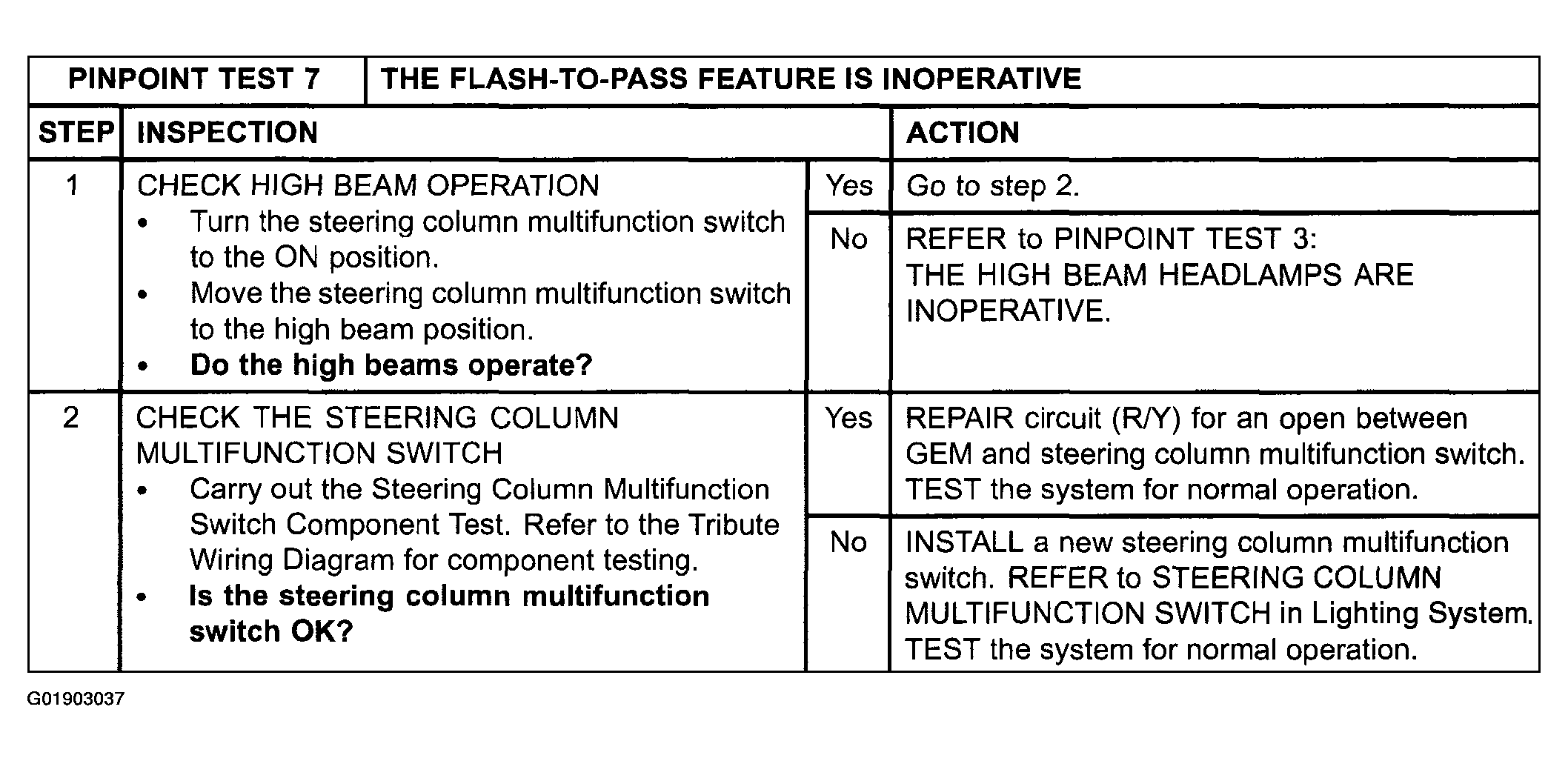

Fig 1: Pinpoint Test 7: Flash-To-Pass Feature Is Inoperative
G01903037Courtesy of MAZDA MOTORS CORP.
