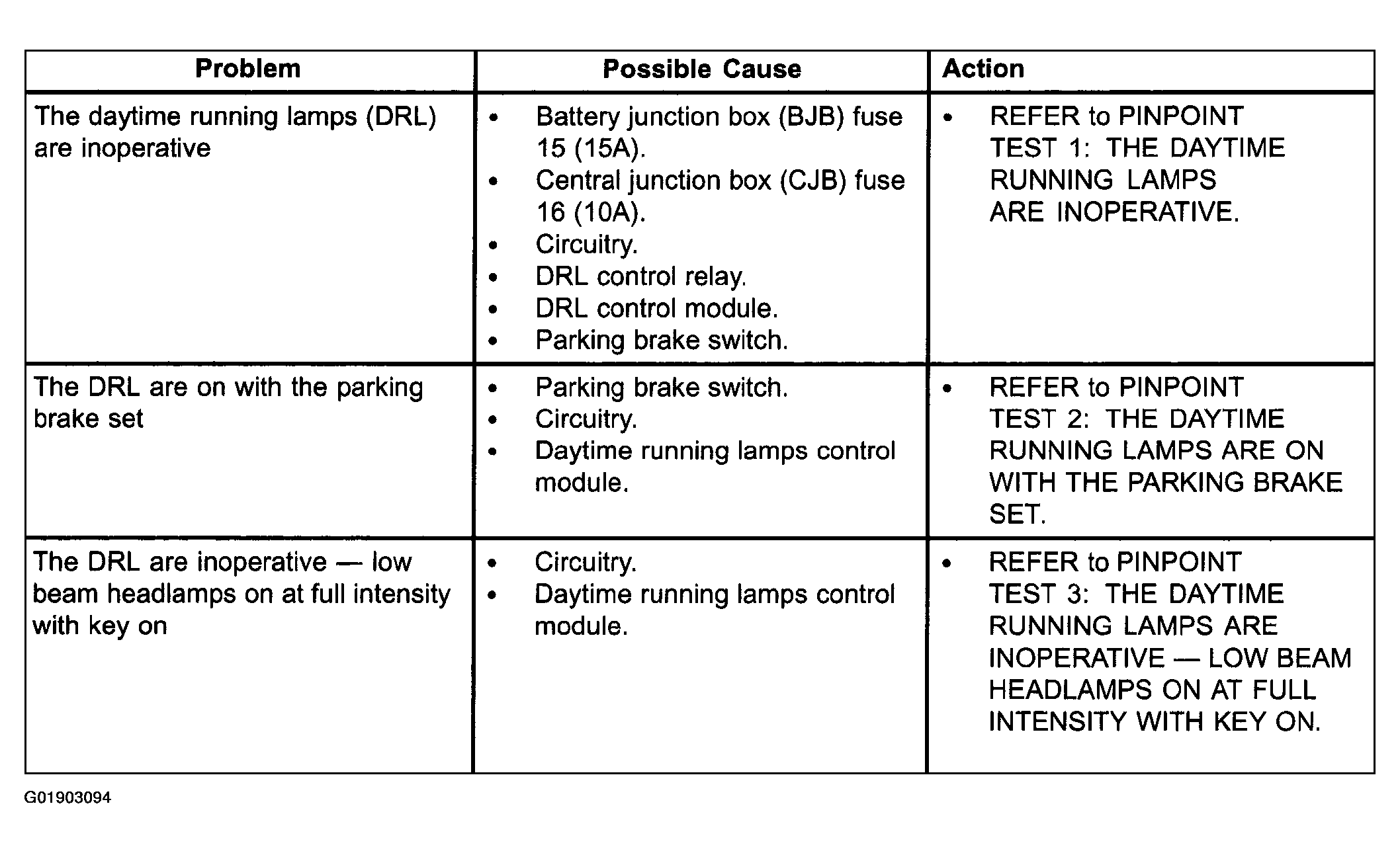

Symptom Troubleshooting Chart - Daytime Running Lamps (DRL): Notes
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
PINPOINT TEST
| PINPOINT TEST | DESCRIPTION |
|---|---|
| PINPOINT TEST 1 | THE DAYTIME RUNNING LAMPS ARE INOPERATIVE |
| PINPOINT TEST 2 | THE DAYTIME RUNNING LAMPS ARE ON WITH THE PARKING BRAKE SET |
| PINPOINT TEST 3 | THE DAYTIME RUNNING LAMPS ARE INOPERATIVE - LOW BEAM HEADLAMPS ON AT FULL INTENSITY WITH KEY ON |
