Section 302 (Symptom Troubleshooting [Windows/Mirrors/Roof/Seats))
>>
Symptom Troubleshooting Chart - Roof Opening Panel
>>
Pinpoint Test 3: The Roof Opening Panel Rattles
Pinpoint Test 3: The Roof Opening Panel Rattles
WARNING:
This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

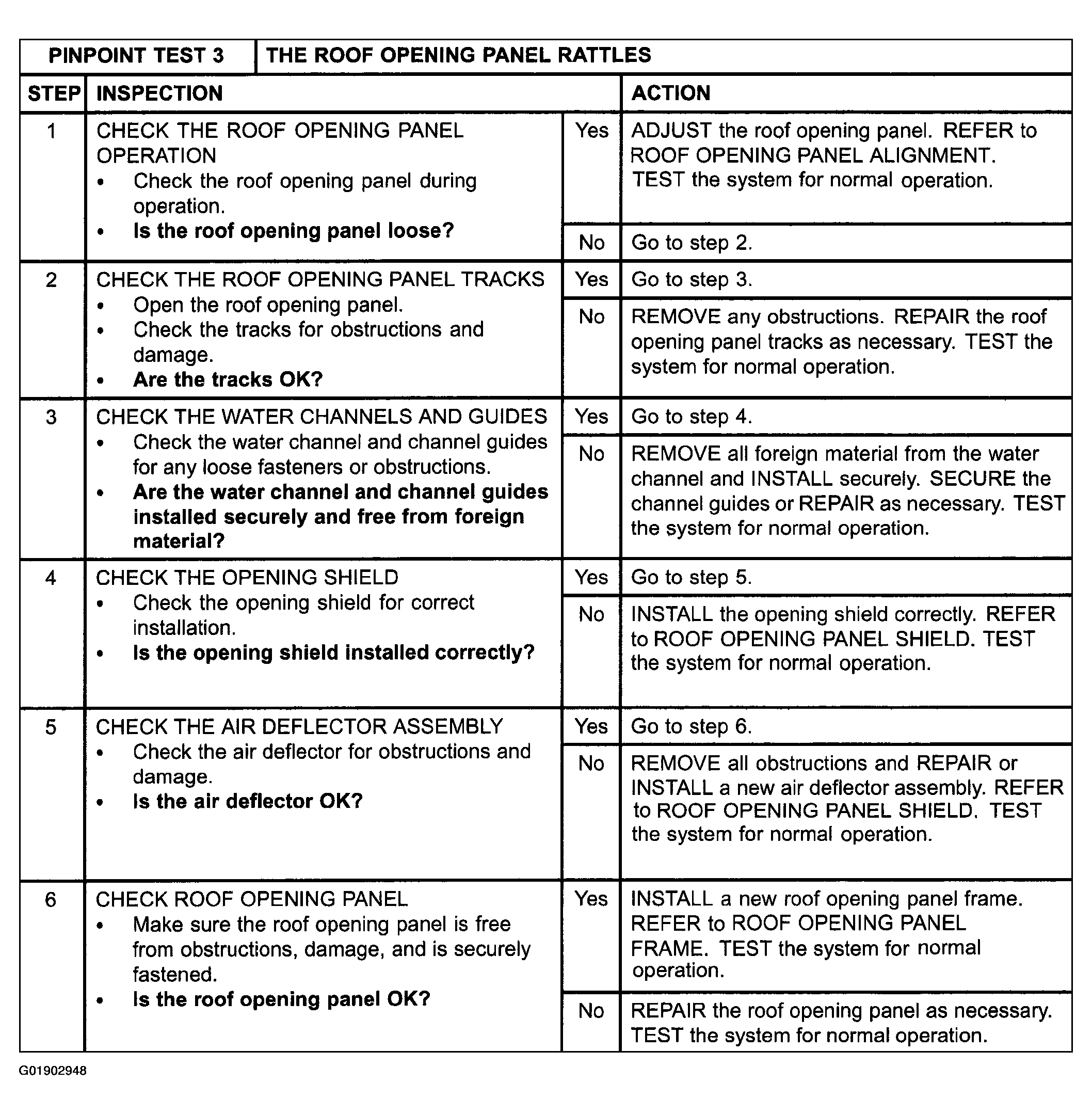

Fig 1: Pinpoint Test 3: Roof Opening Panel Rattles
Courtesy of MAZDA MOTORS CORP.
