Pinpoint Test 2: The Roof Opening Panel Leaks

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

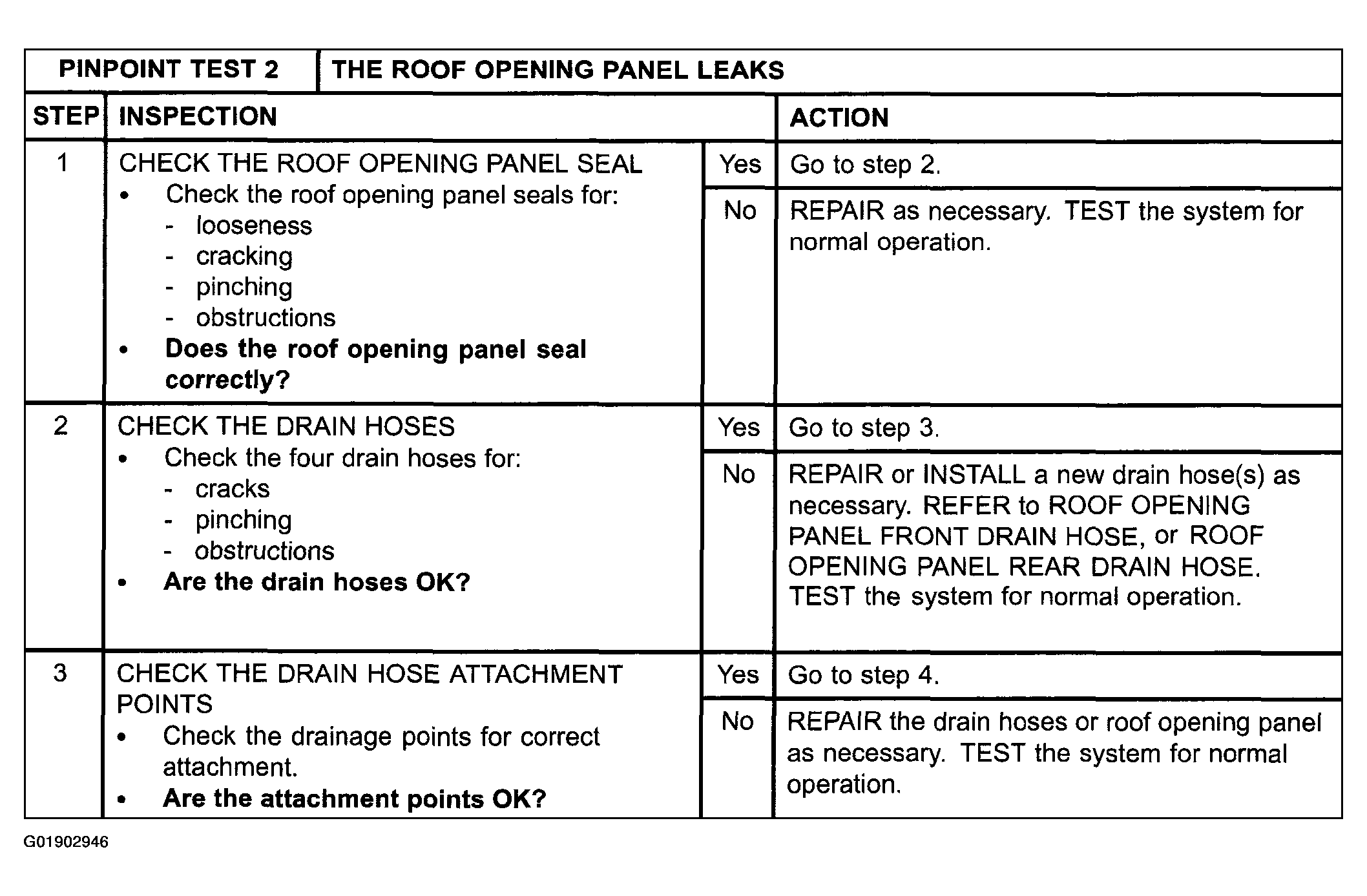

Fig 1: Pinpoint Test 2: Roof Opening Panel Leaks (Steps 1-3)
G01902946Courtesy of MAZDA MOTORS CORP.

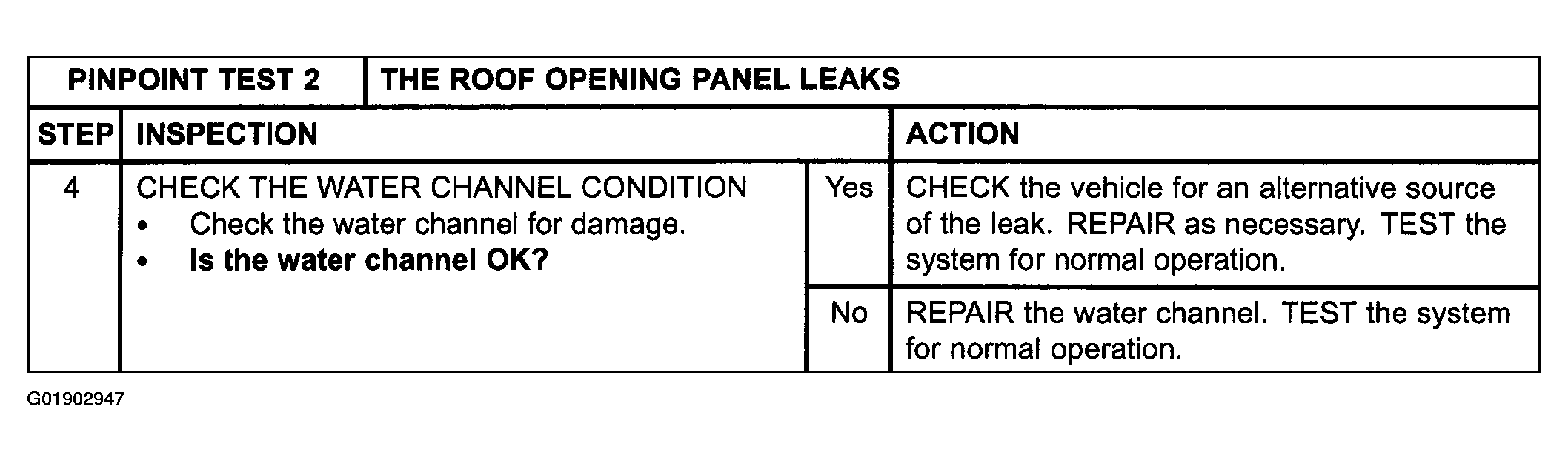

Fig 2: Pinpoint Test 2: Roof Opening Panel Leaks (Step 4)
G01902947Courtesy of MAZDA MOTORS CORP.
