Pinpoint Test 4: A Single Power Window Is Inoperative - Right Rear
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

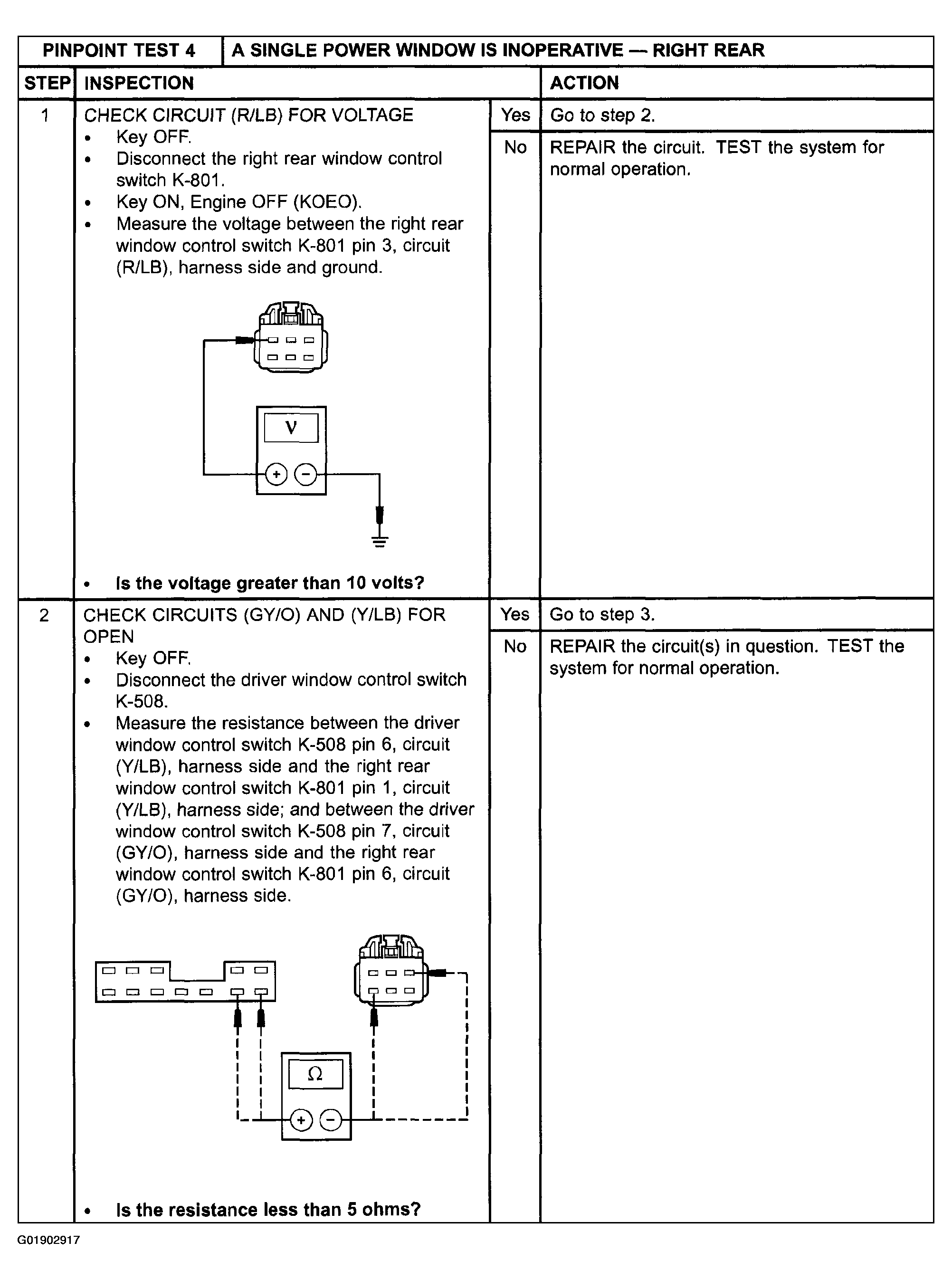

Fig 1: Pinpoint Test 4: A Single Power Window Is Inoperative - Right Rear (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

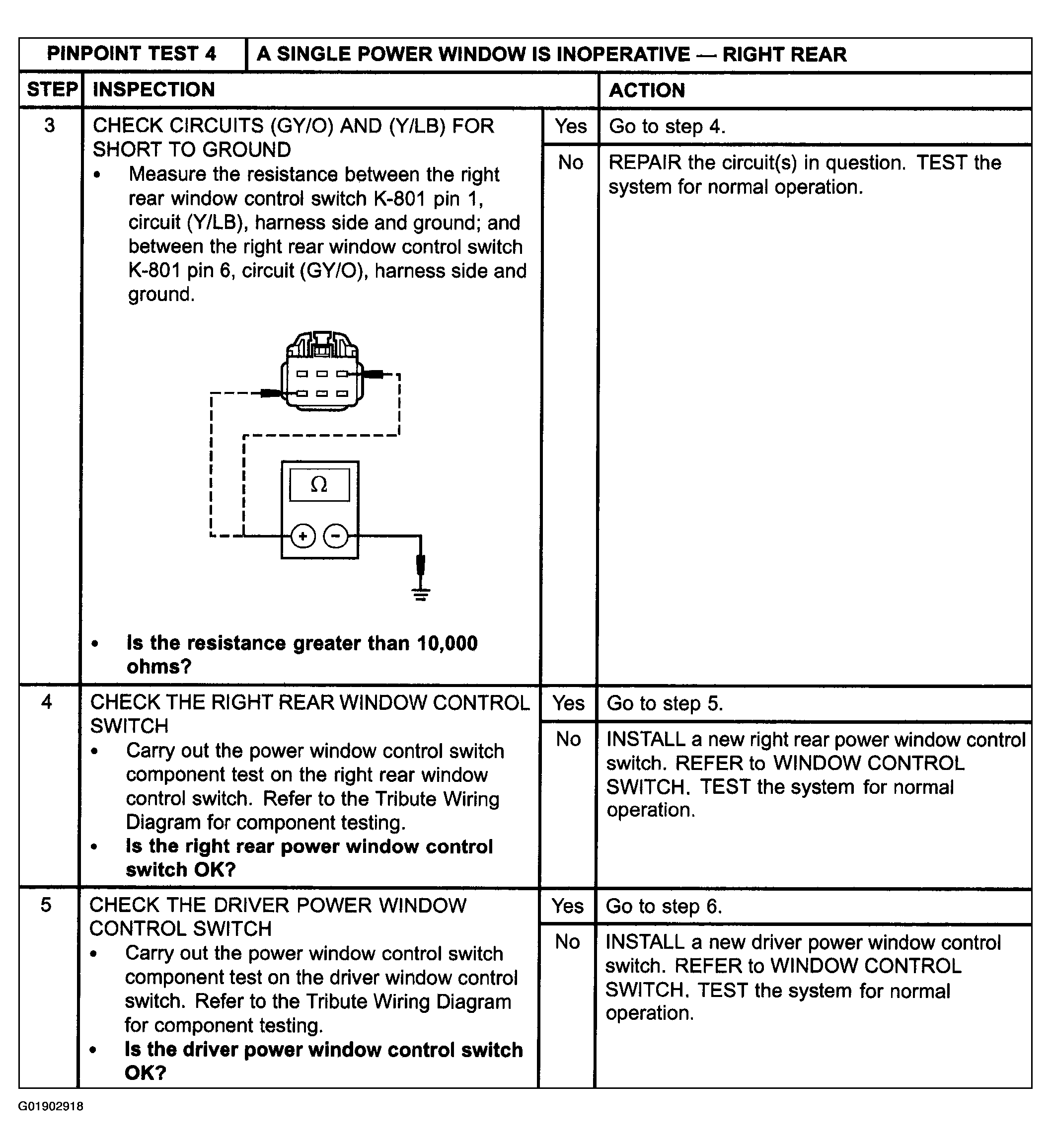

Fig 2: Pinpoint Test 4: A Single Power Window Is Inoperative - Right Rear (Steps 3-5)
Courtesy of MAZDA MOTORS CORP.

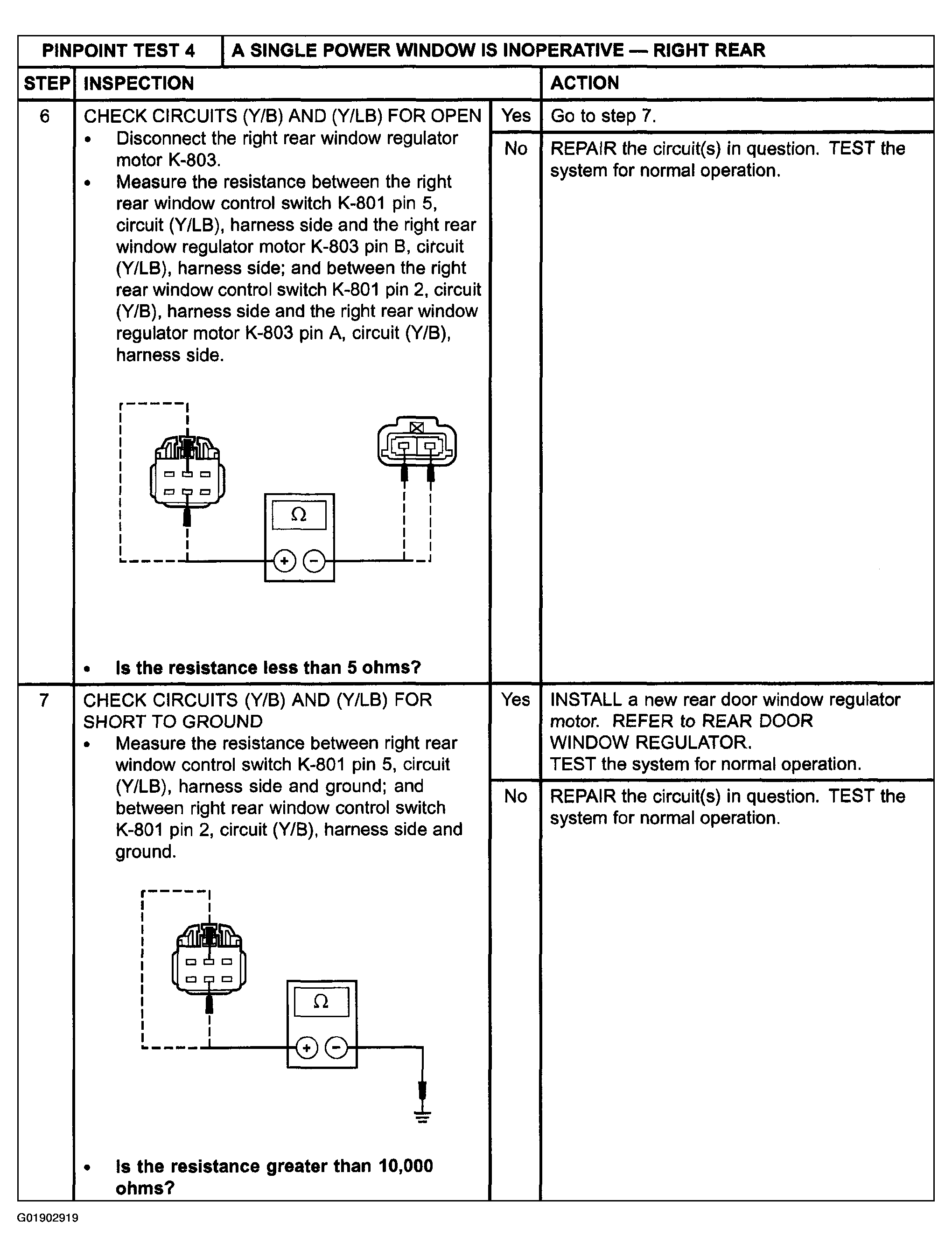

Fig 3: Pinpoint Test 4: A Single Power Window Is Inoperative - Right Rear (Steps 6-7)
