Pinpoint Test 2: The Power Seat Does Not Move Horizontally/Vertically: P-360

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

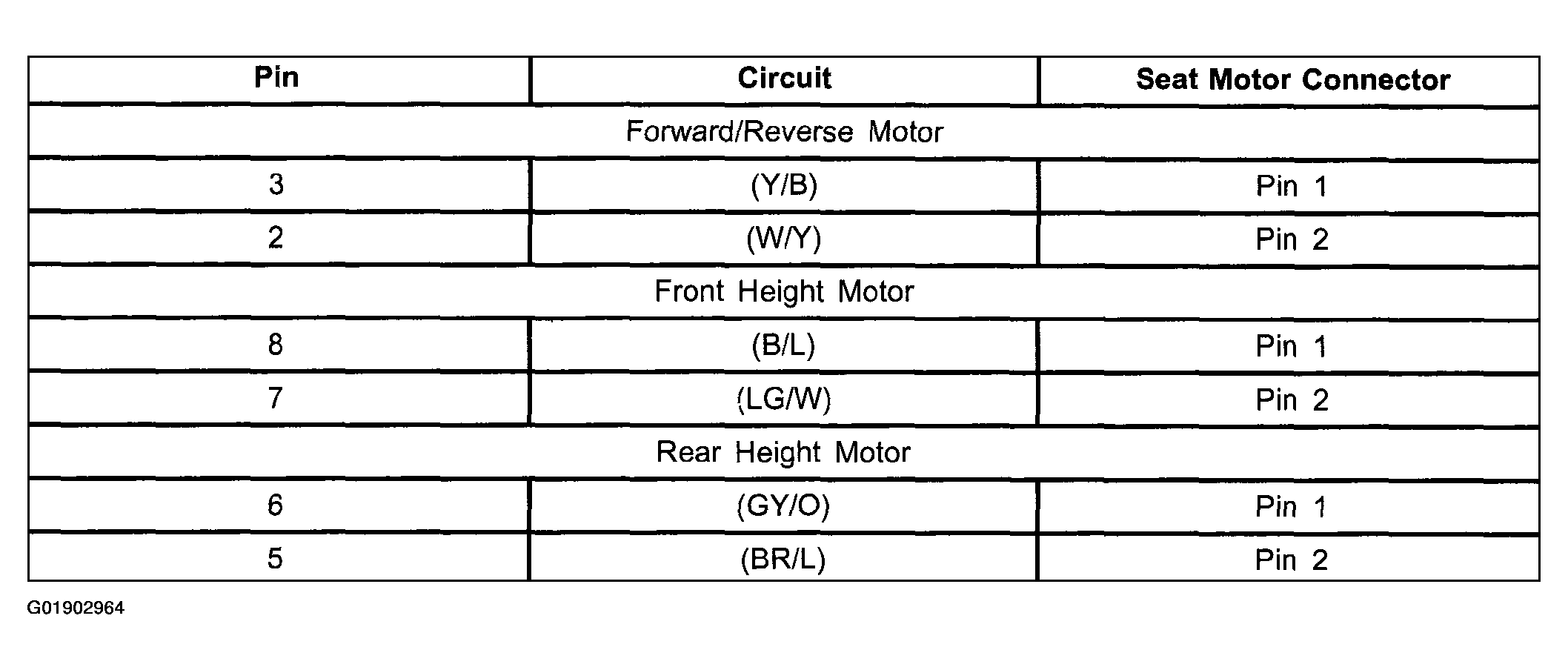

Fig 1: Seat Connector P-360 Specifications

Courtesy of MAZDA MOTORS CORP.

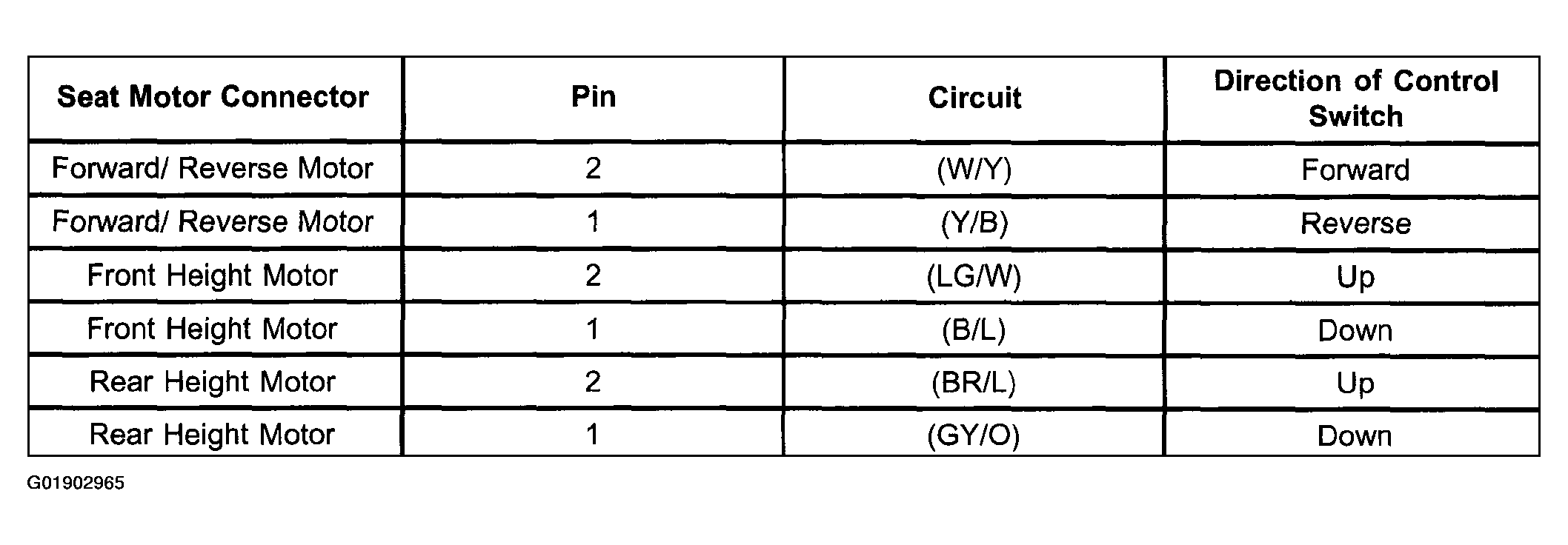

Fig 2: Seat Motor Connector Specification

Courtesy of MAZDA MOTORS CORP.
