WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

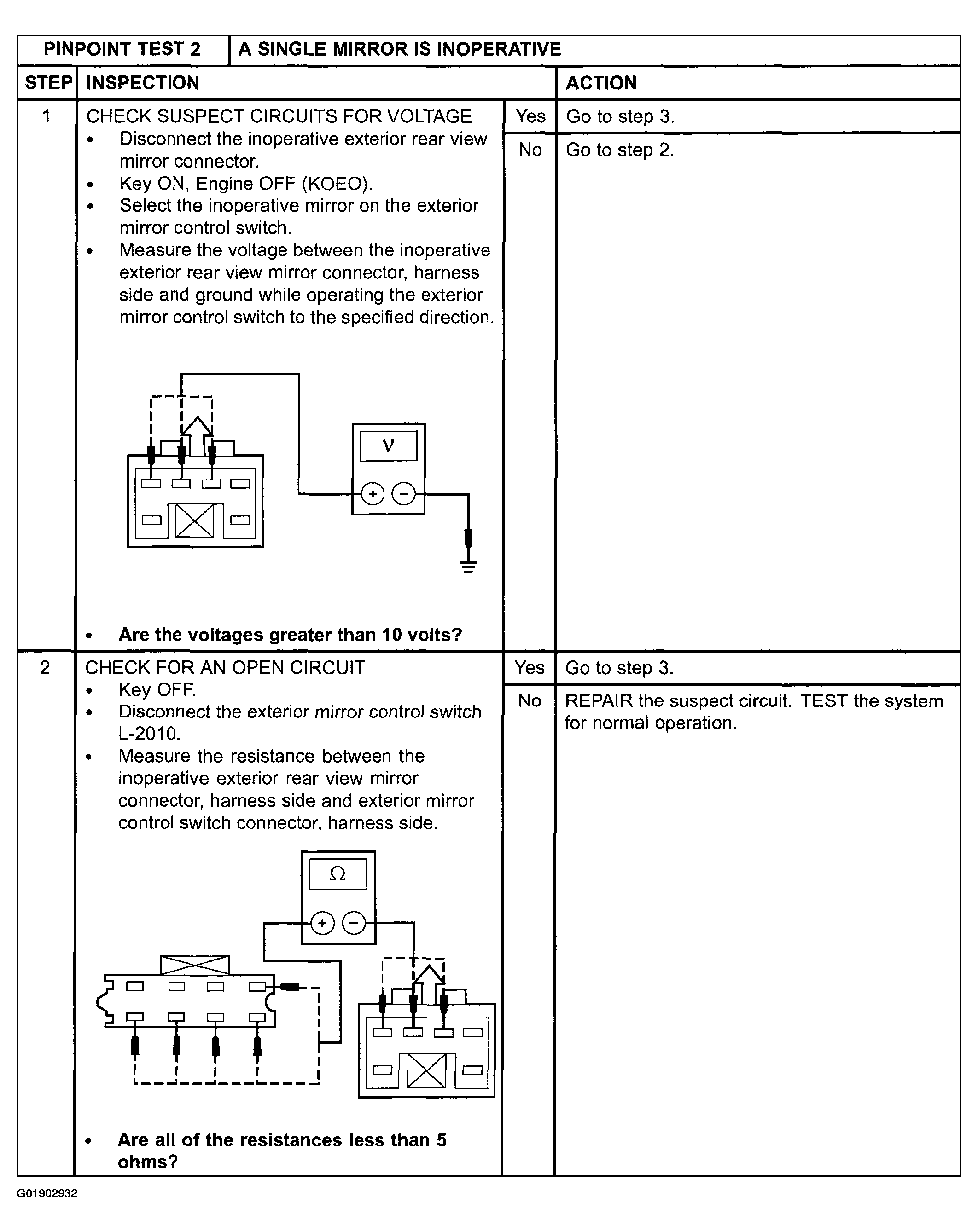

Fig 1: Pinpoint Test 2: Single Mirror Is Inoperative (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

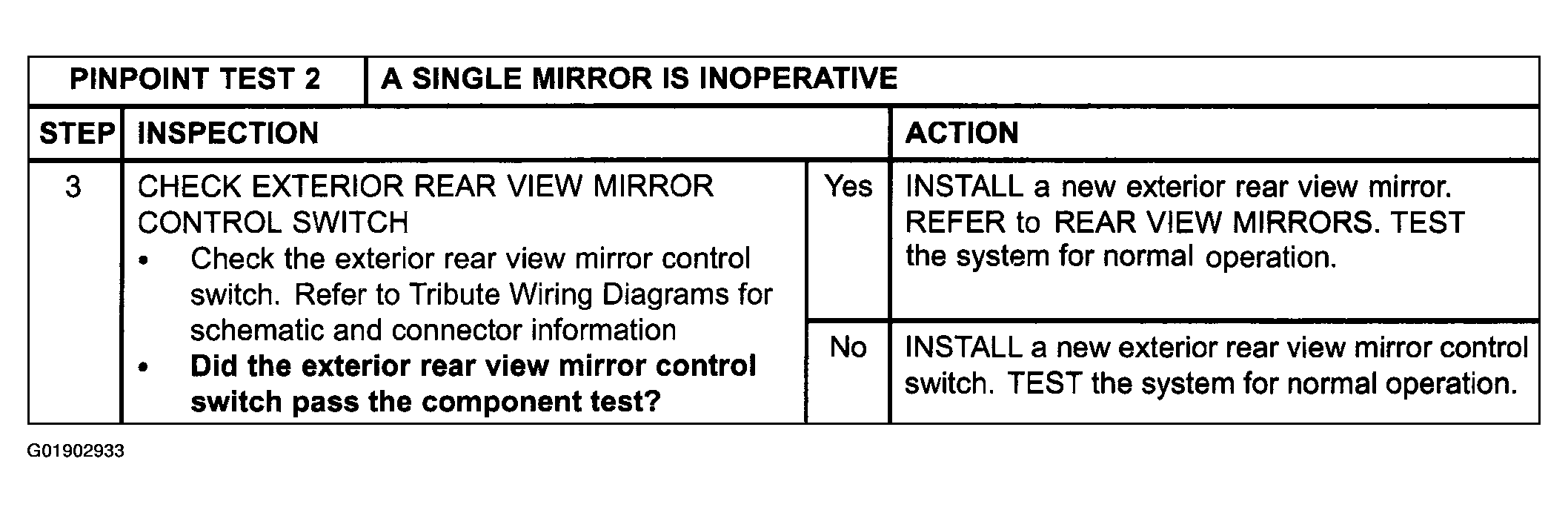

Fig 2: Pinpoint Test 2: Single Mirror Is Inoperative (Step 3)
Courtesy of MAZDA MOTORS CORP.

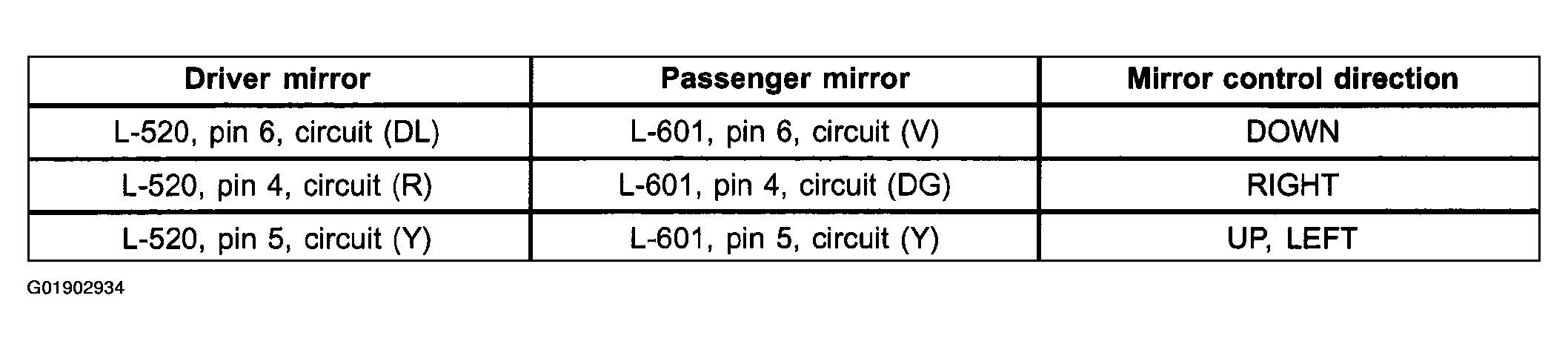

Fig 3: Driver Mirror And Passenger Mirror Specifications
Courtesy of MAZDA MOTORS CORP.

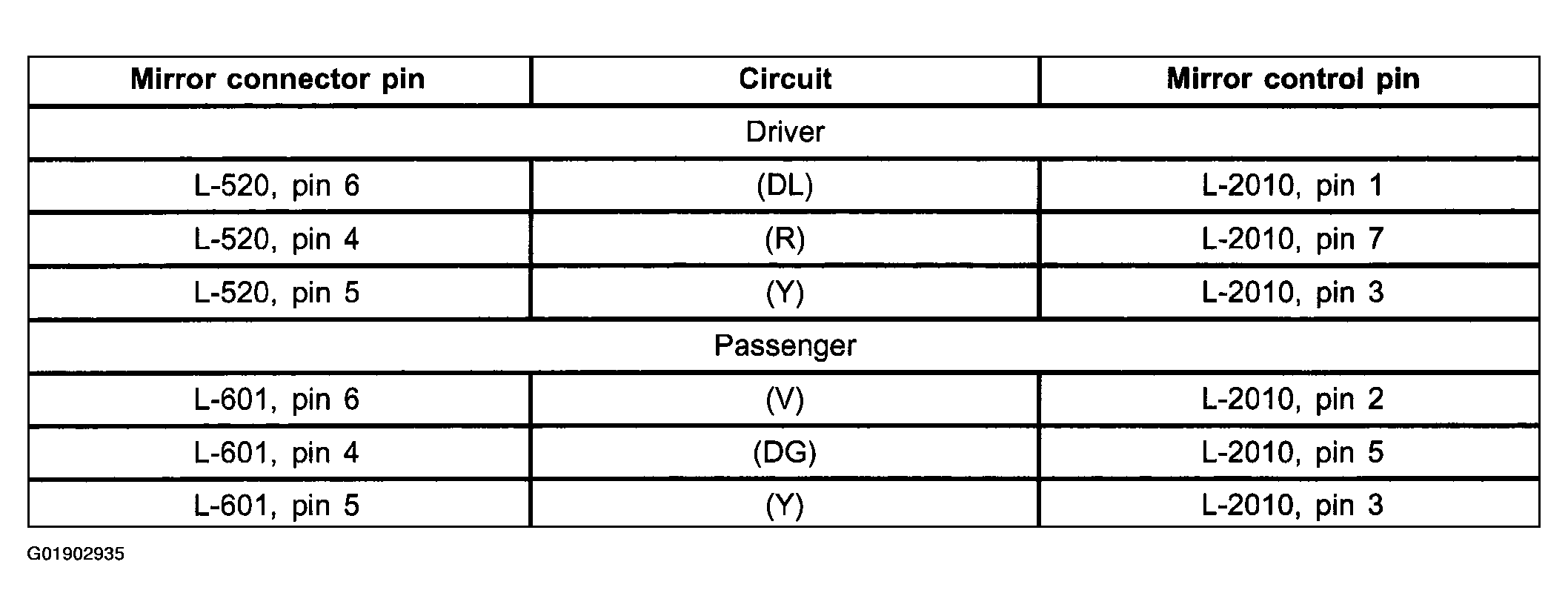

Fig 4: Driver Mirror And Passenger Mirror Circuit Specifications
