Inspection and Verification
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
- Verify the customer concern by operating the roof opening panel.
- Visually inspect for obvious signs of mechanical and electrical damage.

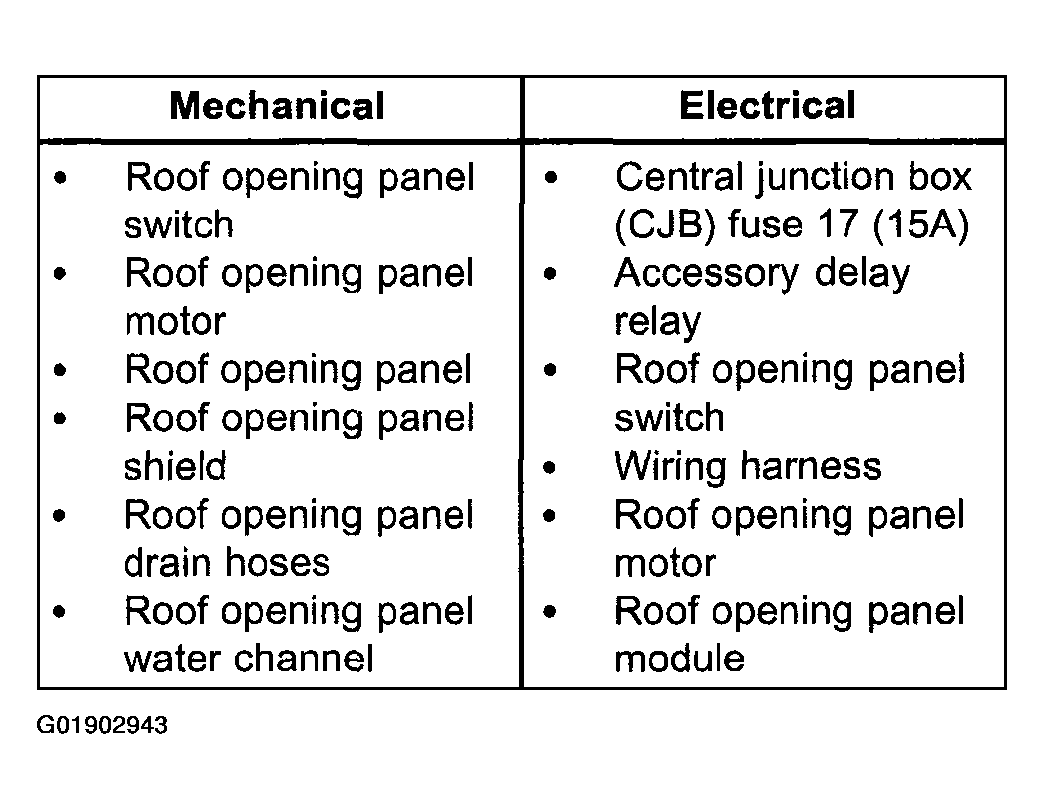

Visual Inspection Chart
- If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
- If the concern is not visually evident, determine the symptom and proceed to SYMPTOM TROUBLESHOOTING CHART - ROOF OPENING PANEL .
