Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel. For additional information, refer to INSTRUMENT PANEL .

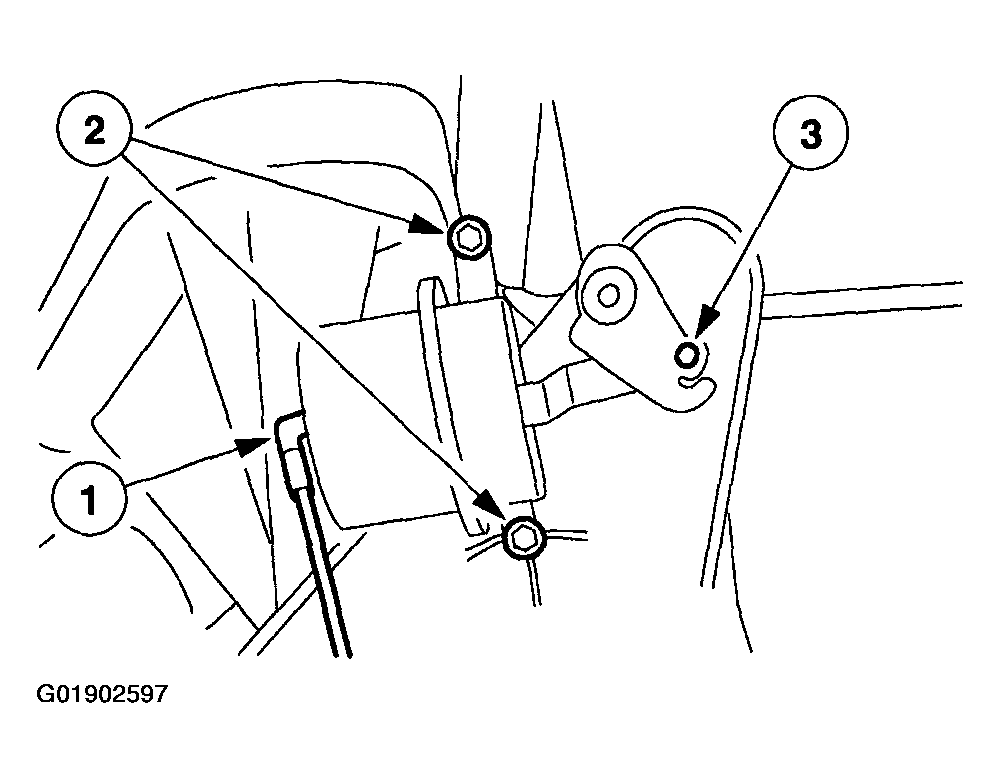

    Fig 1: Removing Vacuum Control Motor (Outside Air Inlet)
    G01902597Courtesy of MAZDA MOTORS CORP.
  2. Remove the vacuum control motor.
    1. Disconnect the vacuum line.
    2. Remove the two screws.
    3. Disconnect the vacuum control motor from the door lever.
  3. To install, reverse the removal procedure.
