Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel center finish panel. For additional information refer to INSTRUMENT CLUSTER FINISH PANEL .

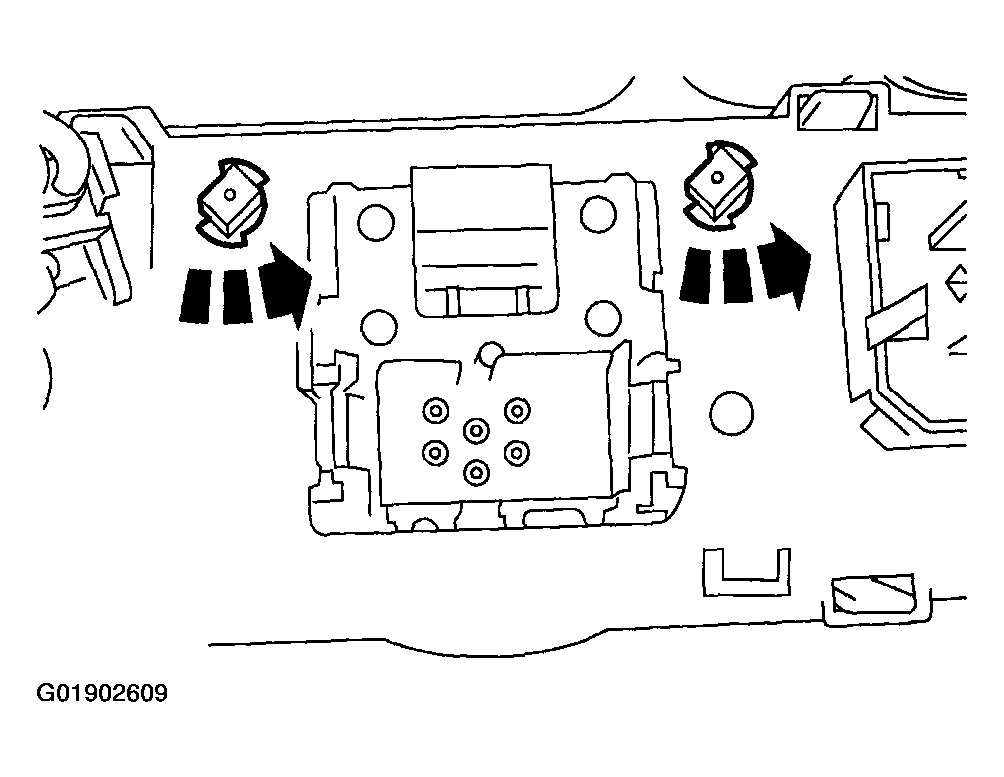

    Fig 1: Removing Illumination Bulb
    G01902609Courtesy of MAZDA MOTORS CORP.
  2. Remove the illumination bulb(s) by turning a quarter turn counterclockwise and lifting straight up.
  3. To install, reverse the removal procedure.
