Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the RH A-pillar lower trim.

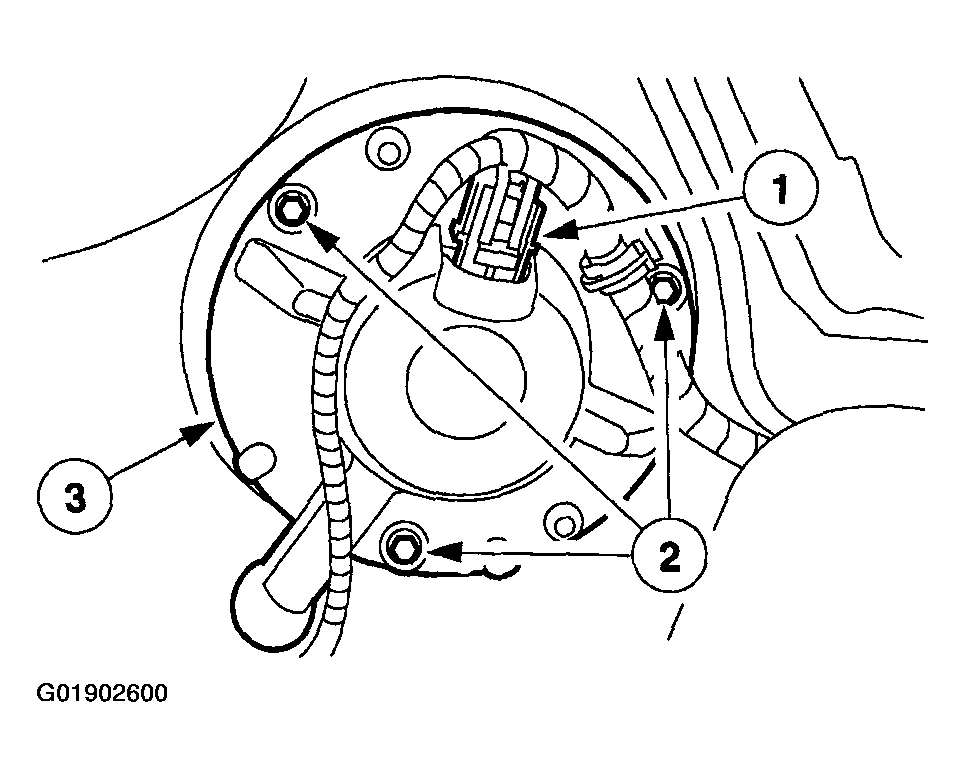

Fig 1: Removing Blower Motor
Courtesy of MAZDA MOTORS CORP.
Remove the blower motor.
1. Disconnect the electrical connector.
2. Remove the washer screws.
3. Remove the blower motor and cover, lower the assembly from the housing.
To install, reverse the removal procedure.
