Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT CLUSTER FINISH PANEL .
    Fig 1: Removing Blower Motor Switch Knob
    G01902602Courtesy of MAZDA MOTORS CORP.
  2. Remove the blower motor switch knob.

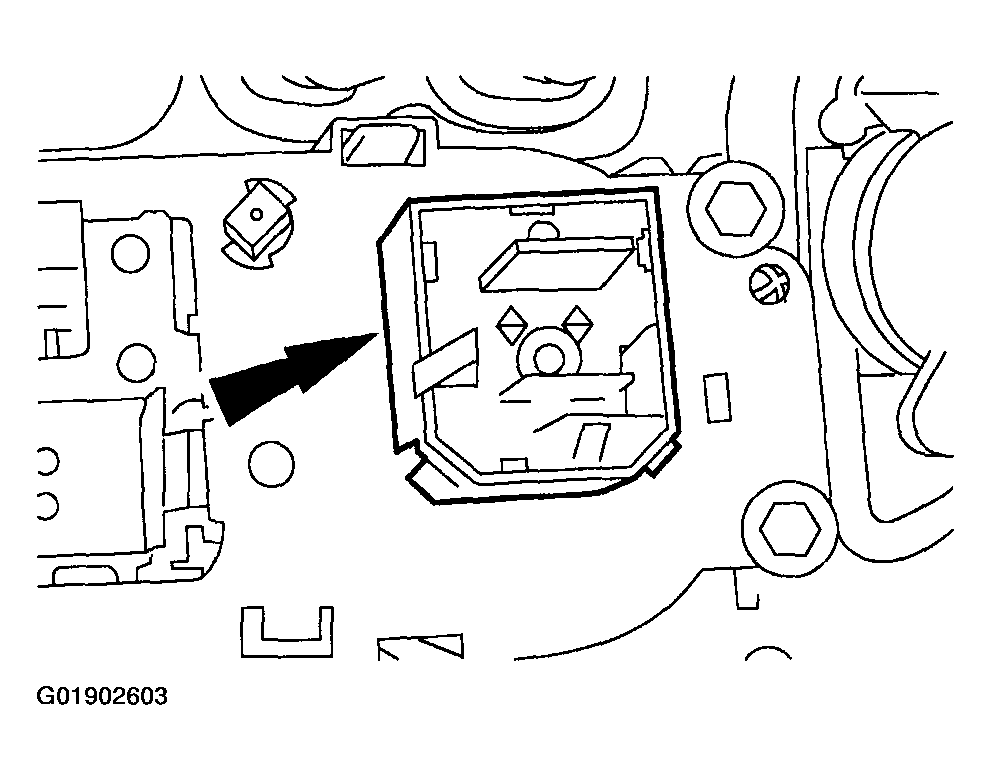

    Fig 2: Removing Blower Motor Switch
    G01902603Courtesy of MAZDA MOTORS CORP.
  3. Remove the blower motor switch.
    1. Depress the locking tab.
  4. To install, reverse the removal procedures.
