Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant. For additional information, refer to DISCHARGING AND RECOVERY .
Remove the A/C cycling switch. For additional information, refer to AIR CONDITIONING (A/C) CYCLING SWITCH .

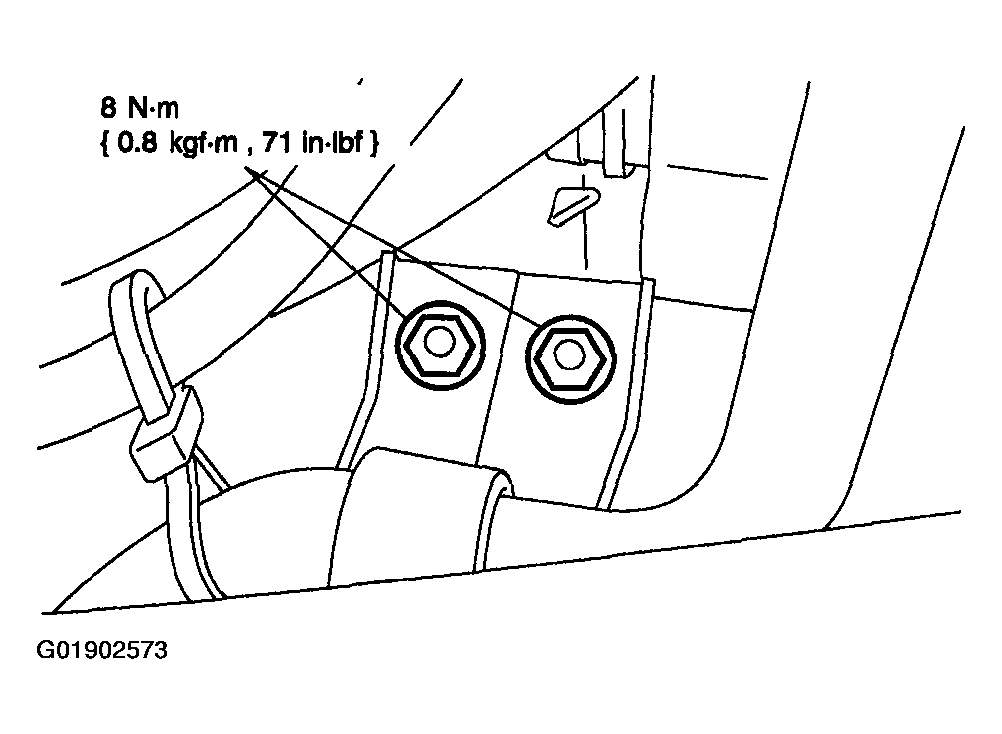

Fig 1: Removing Nuts From A/C Manifold & Tube Mounting Bracket Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the nuts from the A/C manifold and tube mounting bracket.

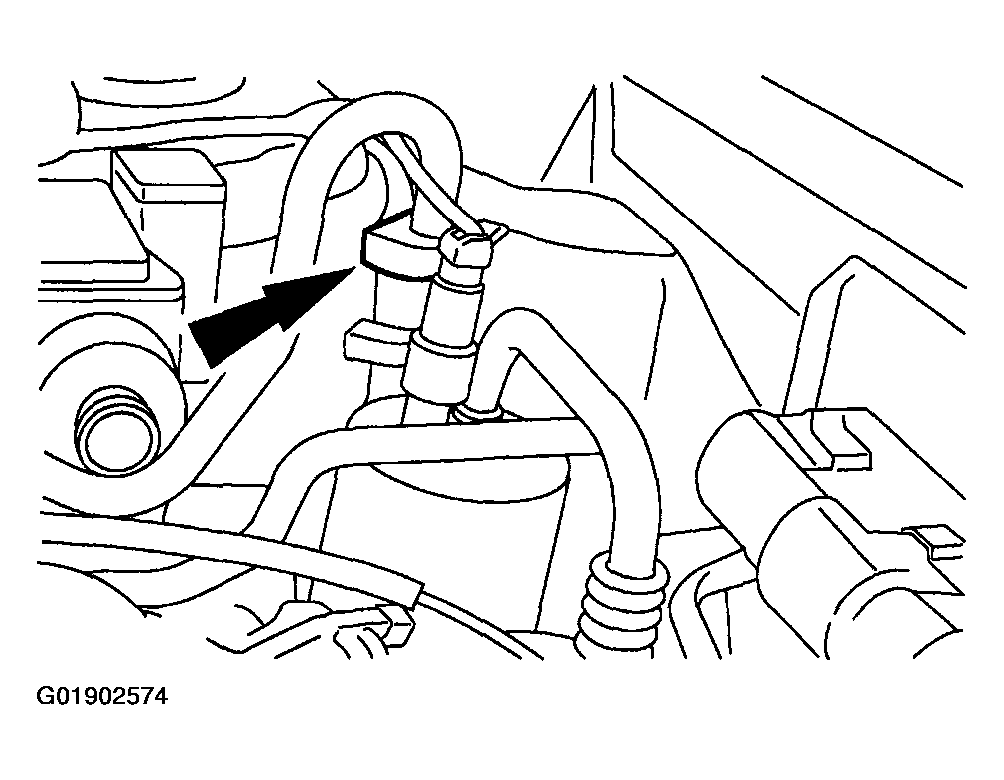

Fig 2: Disconnecting A/C Manifold & Tube From Suction Accumulator
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Plug all ports to prevent contamination from dirt or moisture.
Disconnect the A/C manifold and tube from the suction accumulator. For additional information, refer to SPRING LOCK COUPLING .

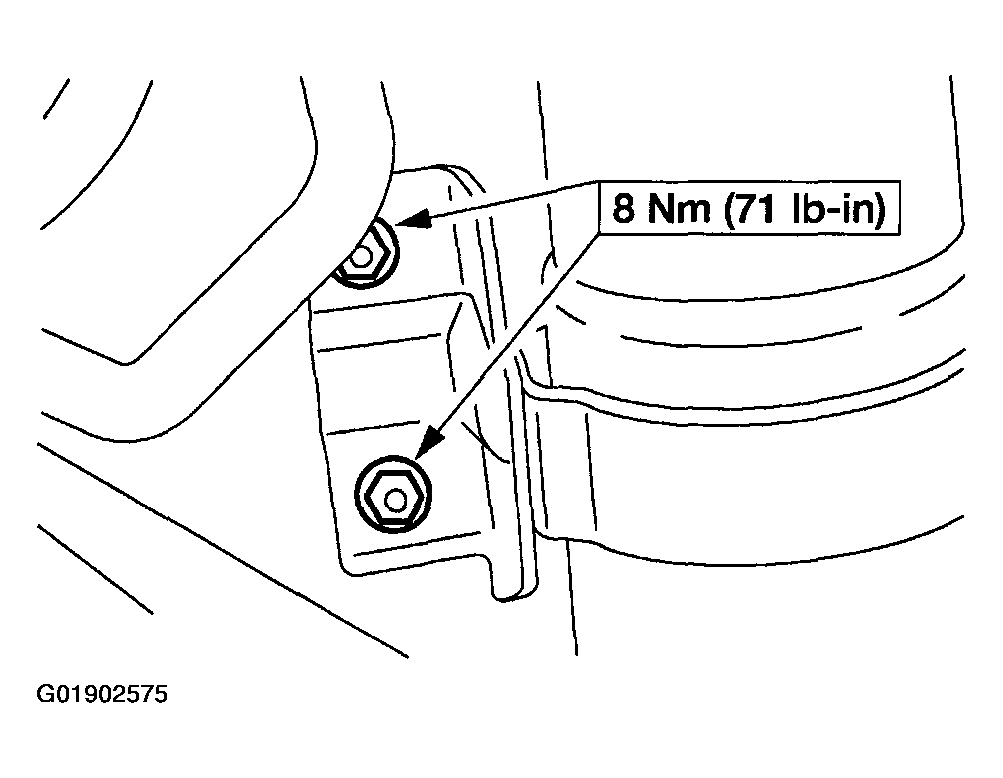

Fig 3: Removing Two Suction Accumulator Mounting Bracket Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the two suction accumulator mounting bracket nuts.

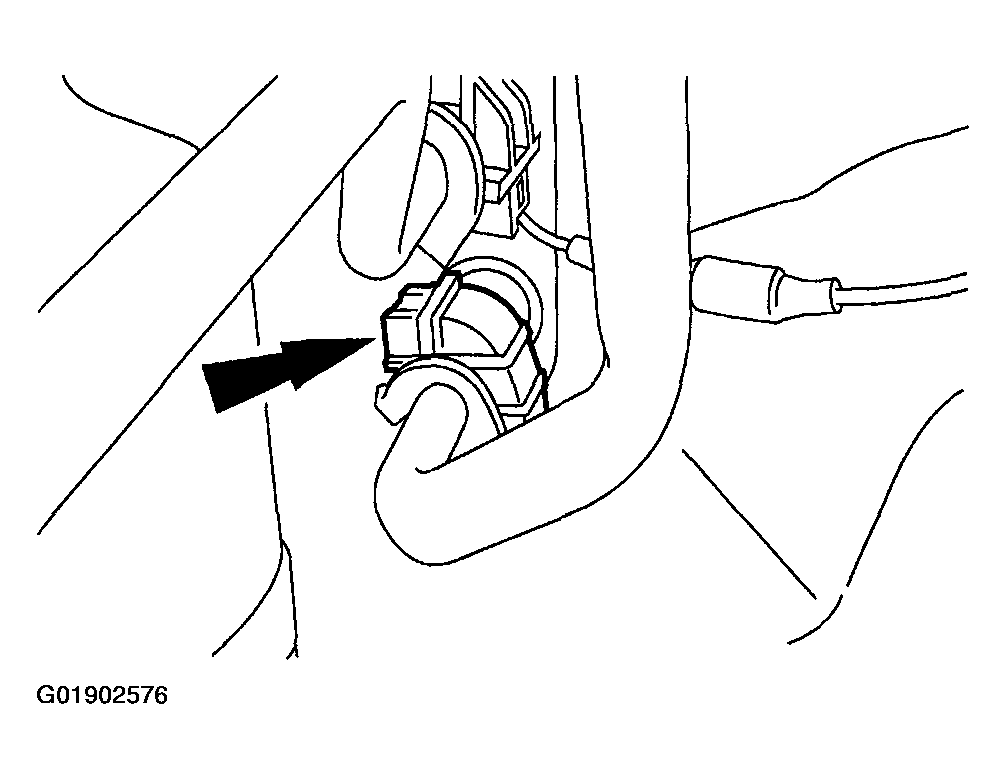

Fig 4: Disconnecting Suction Line From A/C Evaporator Core
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Plug all ports to prevent contamination from dirt or moisture.
Disconnect the suction line from the A/C evaporator core. For additional information, refer to SPRING LOCK COUPLING .
Remove the suction accumulator.
To install, reverse the removal procedure.
1. Lubricate the new suction accumulator with the correct amount of PAG Compressor Oil. For additional information, refer to REFRIGERANT OIL ADDING .
