Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver and front passenger seats. For additional information, refer to DRIVER SEAT and PASSENGER SEAT .
  2. Remove the utility compartment.
    1. Remove the four plastic fasteners.
    2. Remove the utility compartment.
    3. Disconnect the electrical connection.
    Fig 1: Removing LH & RH Front Door Scuff Plates
    G01902505Courtesy of MAZDA MOTORS CORP.
  3. Remove LH and RH front door scuff plates.

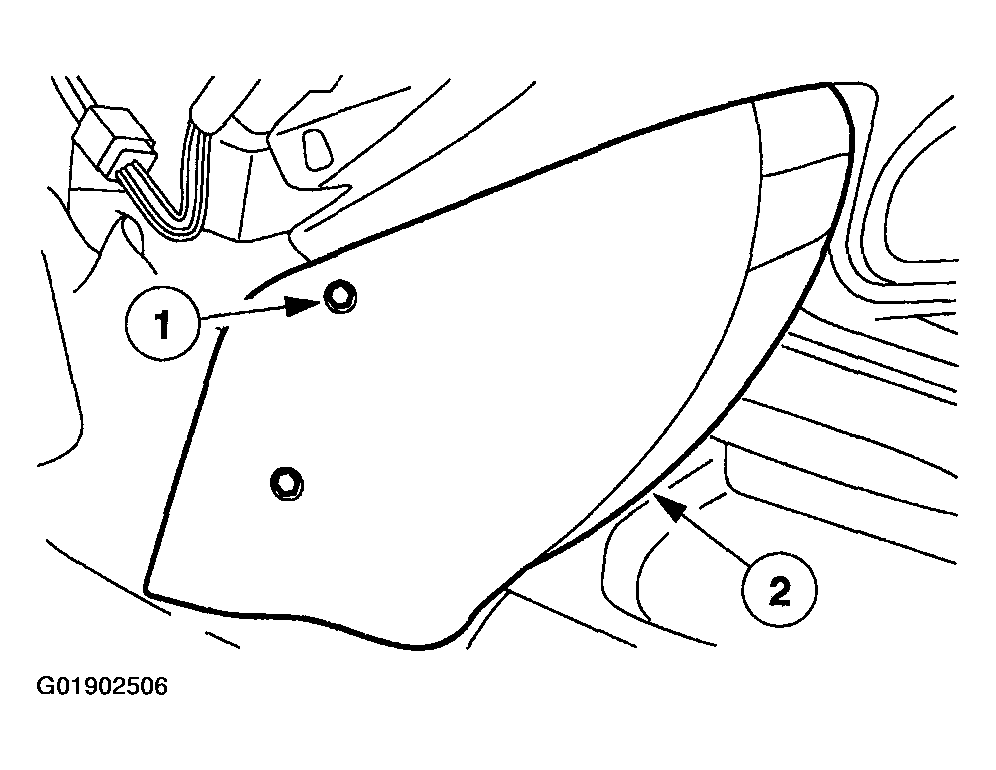

    Fig 2: Removing LH & RH Lower A-Pillar Panels
    G01902506Courtesy of MAZDA MOTORS CORP.
  4. Remove LH and RH lower A-pillar panels.

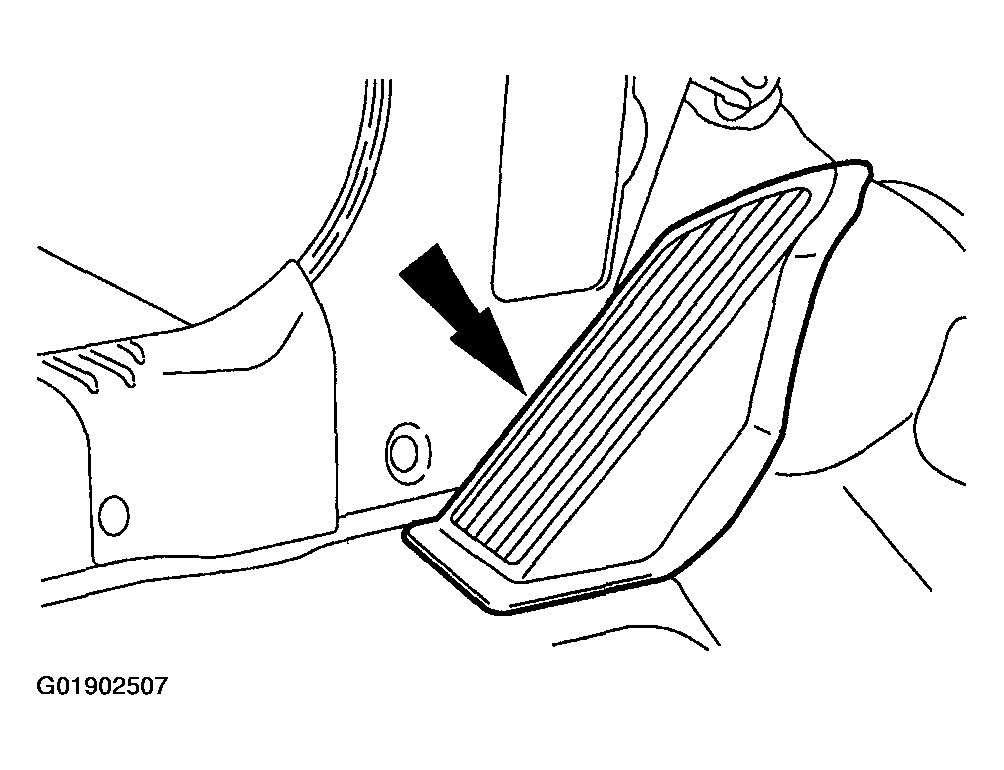

    Fig 3: Removing LH Foot Rest
    G01902507Courtesy of MAZDA MOTORS CORP.
  5. Remove the LH foot rest.
  6. Pull back the carpet to gain access to the rear floor vent.

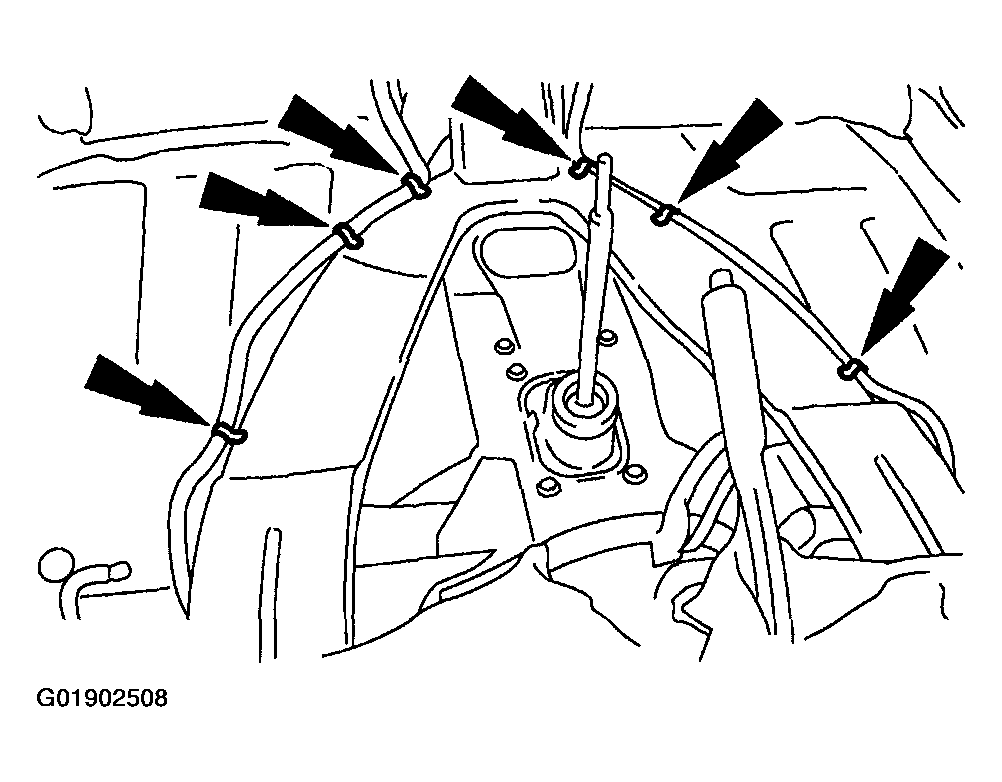

    Fig 4: Removing Wire Harness Pin-Type Retainer
    G01902508Courtesy of MAZDA MOTORS CORP.
  7. Remove the wire harness pin-type retainer.
  8. Remove the floor duct pin-type retainers and remove the duct.
  9. To install, reverse the removal procedure.
