Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the defroster duct. For additional information, refer to DEFROSTER DUCT .

Fig 1: Removing Instrument Panel
Courtesy of MAZDA MOTORS CORP.
Remove the screws from the front side of the instrument panel.

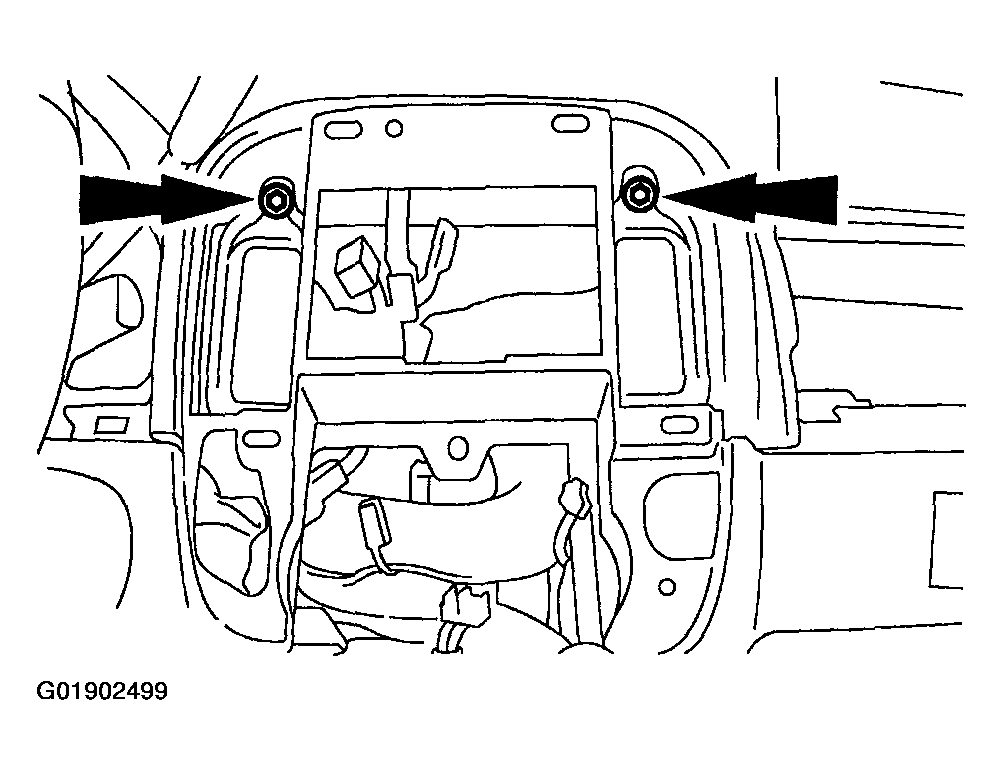

Fig 2: Removing Left Vent Duct
Courtesy of MAZDA MOTORS CORP.
Remove the screw for the left vent duct.

Fig 3: Removing Right Vent Duct
Courtesy of MAZDA MOTORS CORP.
Remove the screw for the right vent duct.

Fig 4: Removing center vent duct
Courtesy of MAZDA MOTORS CORP.
Remove the screws for the center vent duct and remove the vent duct.
To install, reverse the removal procedure.
