Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

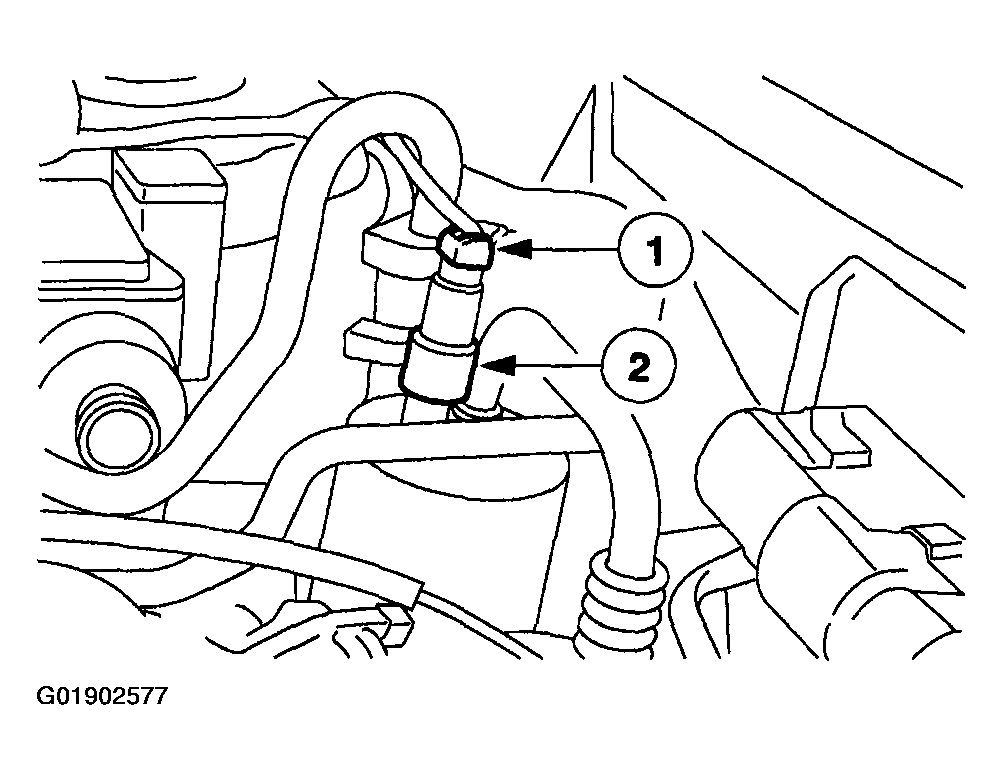

Fig 1: Removing A/C Cycling Switch
G01902577Courtesy of MAZDA MOTORS CORP.
  1. Remove the A/C cycling switch.
    1. Disconnect the A/C cycling switch electrical connector.
    2. Remove the A/C cycling switch.
  2. To install, reverse the removal procedure.
    1. Lubricate the O-ring seals with PAG Compressor Oil.
