Removal & Installation (B2500)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2001 Mazda Tribute, 2001 Mazda Protege, 2001 Mazda Millenia, 2001 Mazda MX-5 Miata, and 2001 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

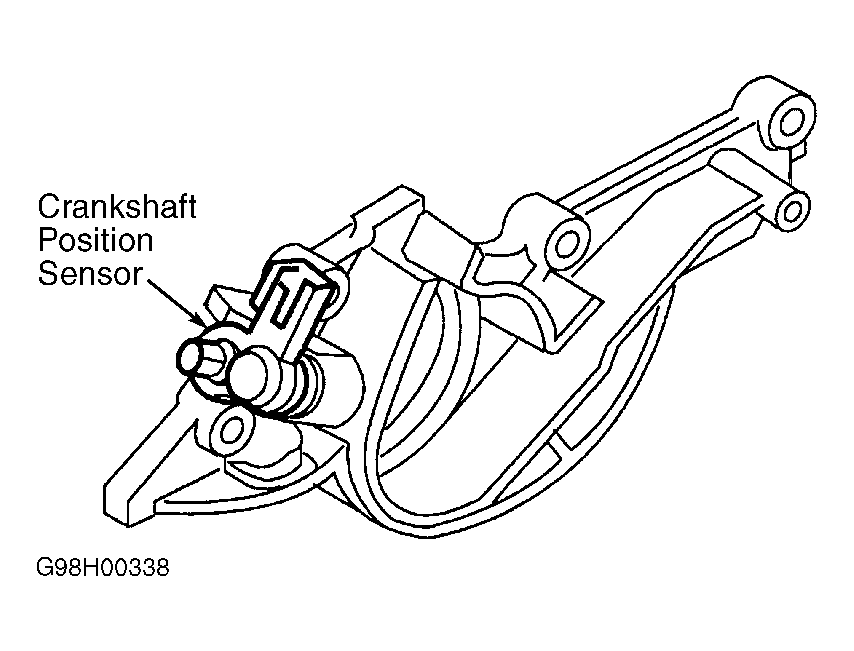

Disconnect negative battery cable. Drain cooling system. Remove lower radiator hose from water pump. Remove water pump inlet tube and "O" ring. Disconnect CKP sensor connector. Remove CKP sensor. See Fig 1. To install, reverse removal procedure.
