Crankshaft Position Sensor: Installation
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2001 Mazda Tribute, 2001 Mazda Protege, 2001 Mazda Millenia, 2001 Mazda MX-5 Miata, and 2001 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

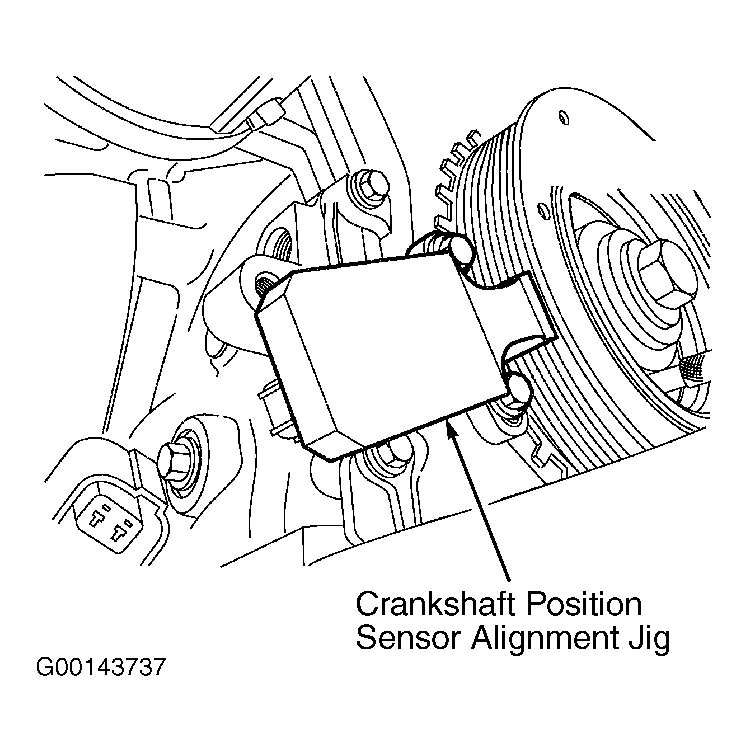

Install Crankshaft Position (CKP) sensor, but do not tighten mounting bolts. Adjust CKP sensor with Crankshaft Position Sensor Alignment Jig and tighten bolts to specification. See Fig 1. See TORQUE SPECIFICATIONS . Connect CKP sensor harness connector. Remove Timing Pin. Remove Crankshaft Timing Peg and reinstall plug (bolt).
