Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

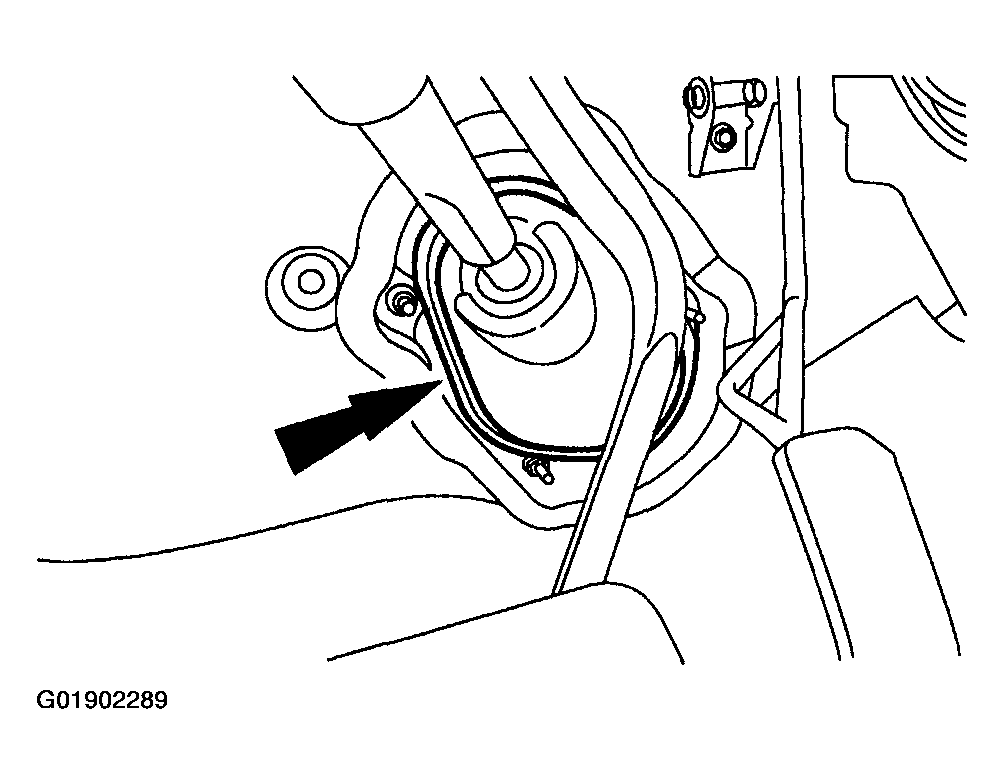

Fig 1: Positioning Steering Gear Boot Cover

Courtesy of MAZDA MOTORS CORP.

Position the steering gear boot cover aside.

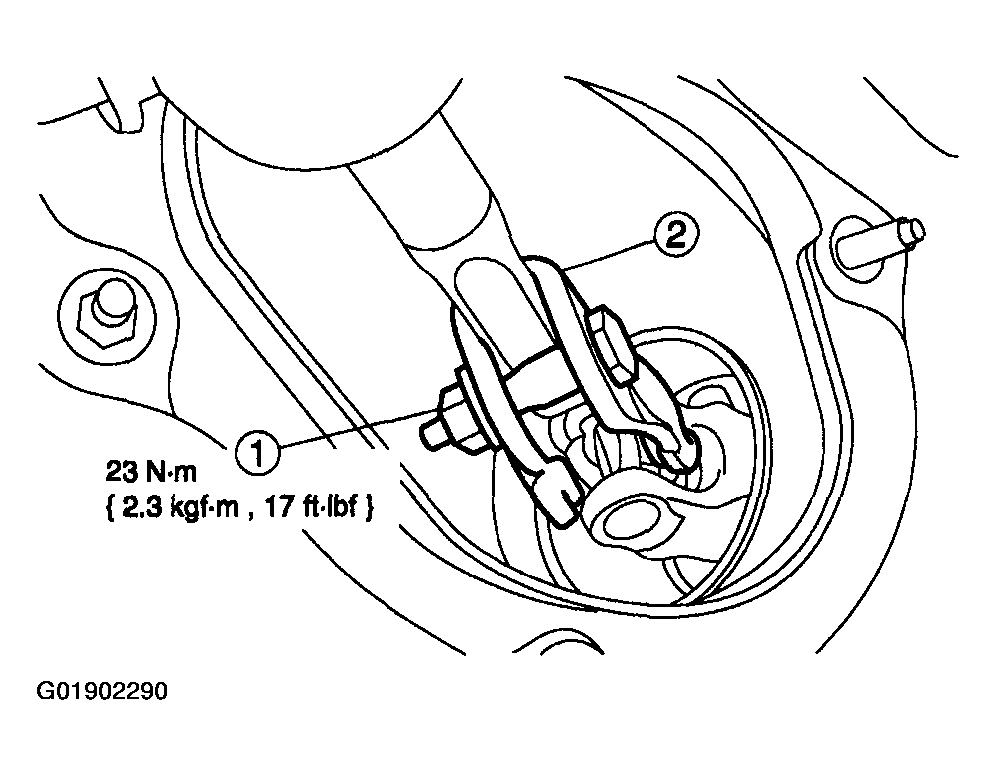

Fig 2: Disconnecting Steering Column Shaft From Flexible Coupling
Courtesy of MAZDA MOTORS CORP.
NOTE:
- The nut cannot be reused. Install a new nut.
Disconnect the steering column shaft from the flexible coupling.
1. Remove and discard the nut.
2. Disconnect the steering column shaft from the flexible coupling.

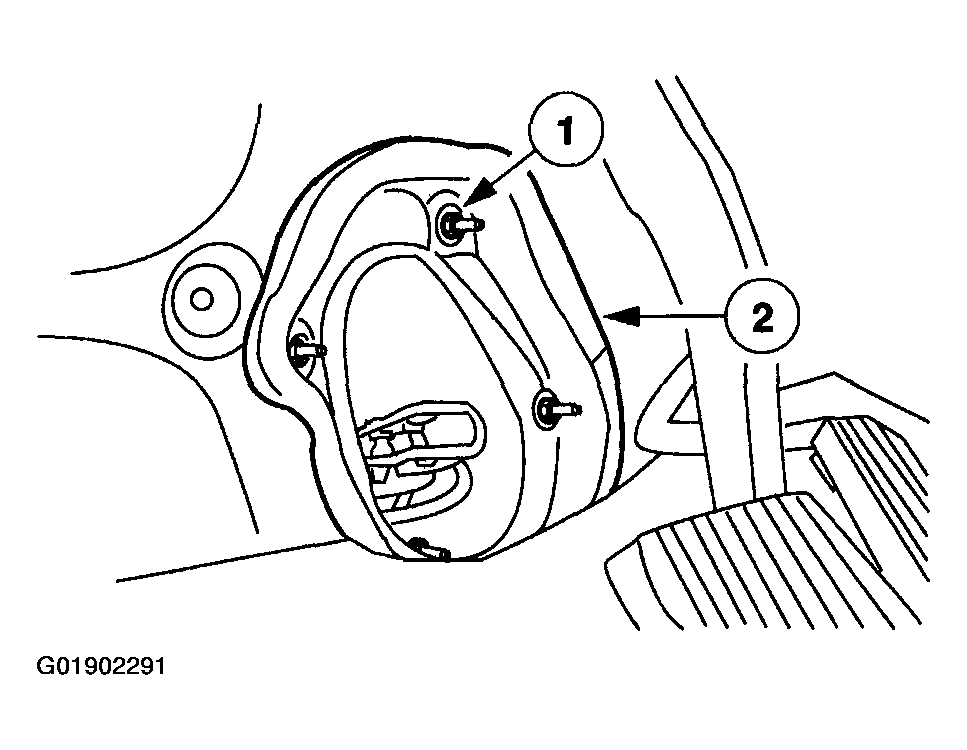

  Fig 3: Removing Steering Gear Boot
  Courtesy of MAZDA MOTORS CORP.
Remove the steering gear boot.
1. Remove the nuts.
2. Remove the steering gear boot.
To install, reverse the removal procedure.
