Power Steering Pump To Steering Gear Pressure Line - 3.0L DURATEC (4V): Removal

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
NOTE:
- Drain the excess power steering fluid into a suitable drain pan.
NOTE:
- Do not drop the O-ring seals.

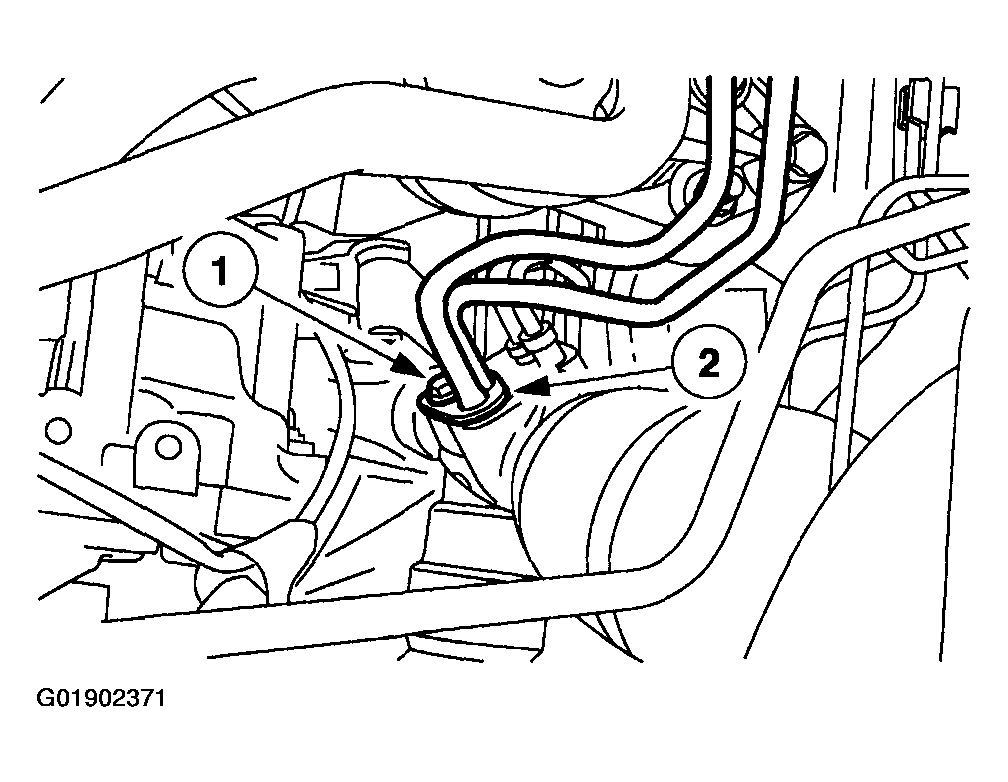

Fig 1: Disconnecting Power Steering Pressure & Return Lines
Courtesy of MAZDA MOTORS CORP.
Disconnect the power steering pressure and return lines.
1. Remove the bolt.
2. Disconnect the power steering pressure and return lines.
Lower the vehicle.

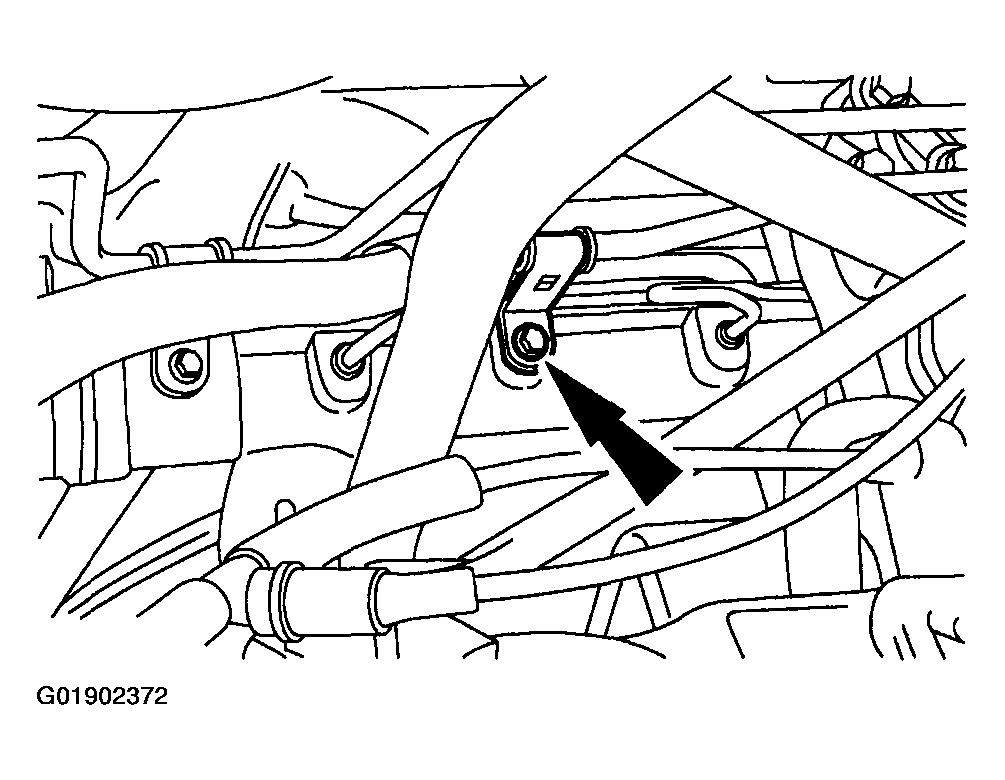

Fig 2: Removing Power Steering Pressure Line Bracket Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the power steering pressure line bracket bolt to the steering gear.

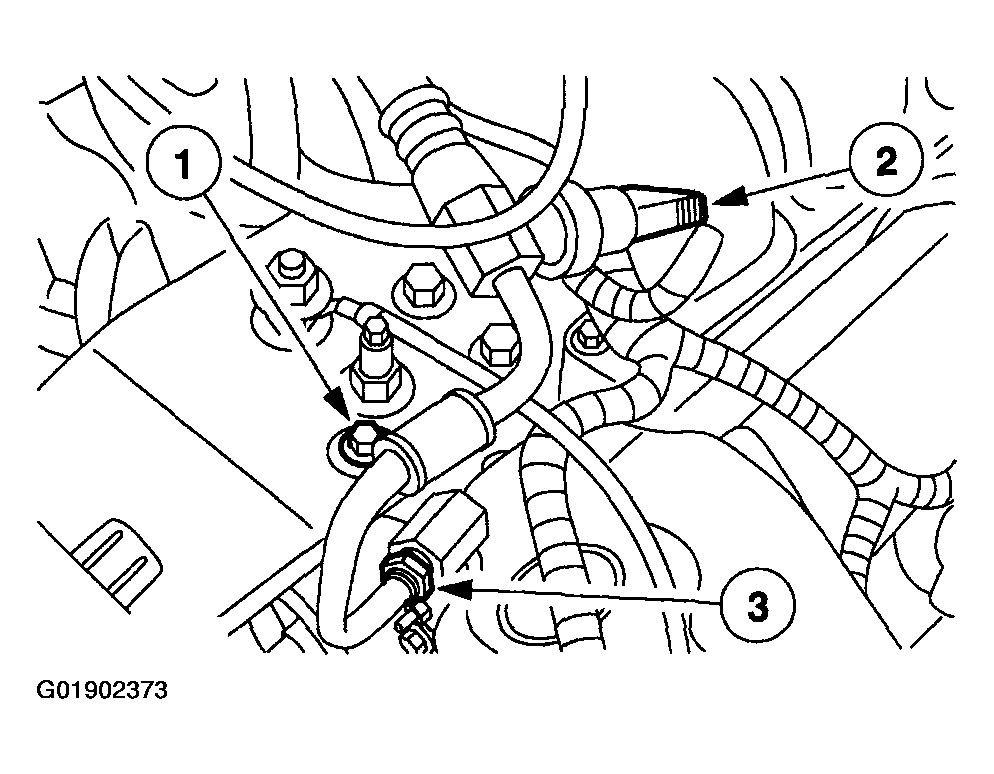

Fig 3: Removing Power Steering Pressure Hose
Courtesy of MAZDA MOTORS CORP.
Remove the power steering pressure hose.
1. Remove the power steering pressure line bracket bolt.
2. Disconnect the electrical connector.
3. Loosen the fitting and remove the power steering pressure line.
