Power Steering Pump To Steering Gear Pressure Line - 2.0L ZETEC: Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Installing Seal On Power Steering Pressure Line Fitting Using Tool

Courtesy of MAZDA MOTORS CORP.

Using the special tool, install a new seal on the power steering pressure line fitting.
1. Remove and discard the original seal.
2. Stretch the seal over the special tool and slide it onto the tube nut.

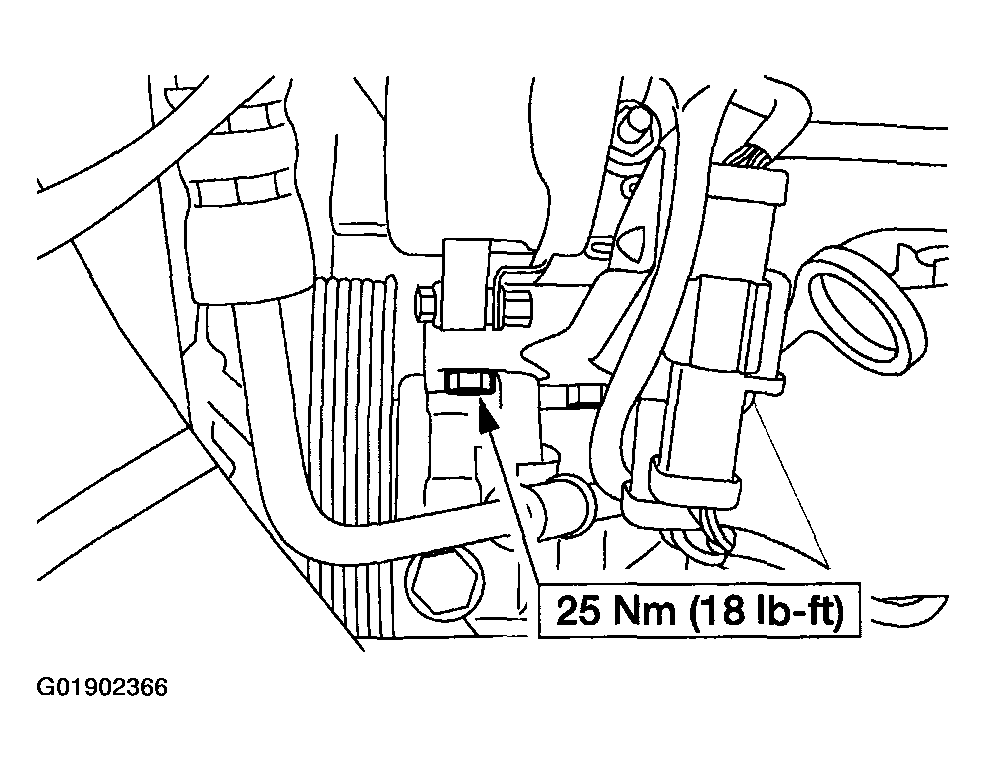

  Fig 2: Installing Power Steering Pressure Line Bracket To Engine Bolt
  Courtesy of MAZDA MOTORS CORP.
Install the power steering pressure line bracket to engine bolt.

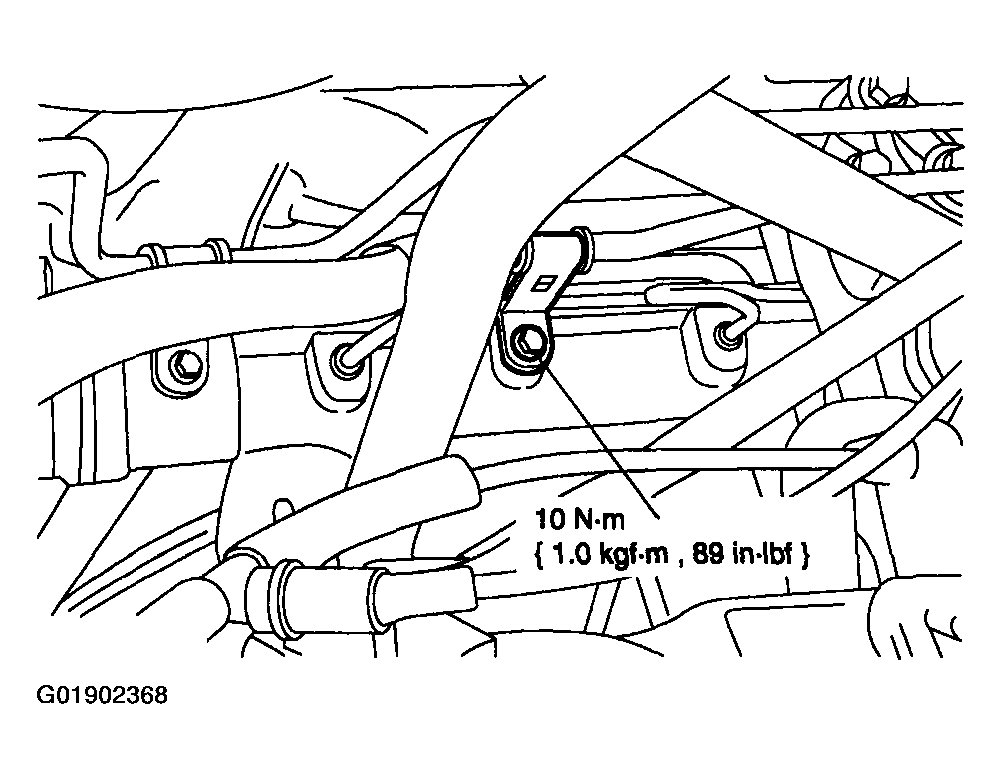

Fig 3: Installing Power Steering Pressure Line Bracket Bolt To Engine Lifting Hook
Courtesy of MAZDA MOTORS CORP.
Install the power steering pressure line bracket bolt to the engine lifting hook.

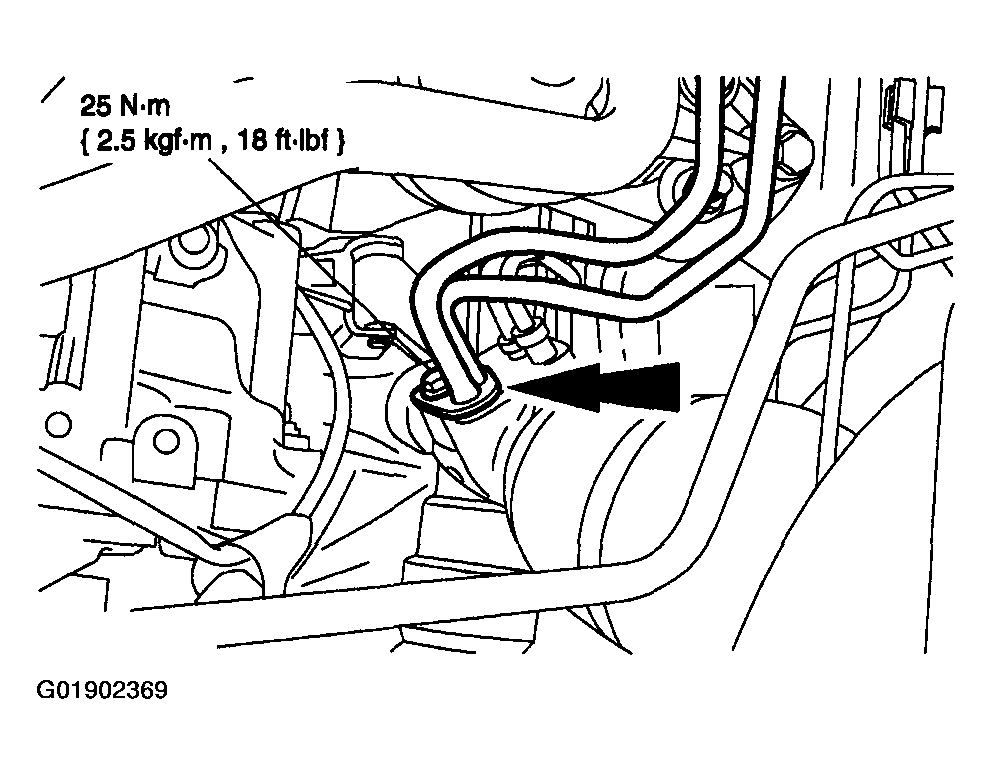

Fig 4: Installing Power Steering Pressure Line Bracket Bolt To Steering Gear
Courtesy of MAZDA MOTORS CORP.
Install the power steering pressure line bracket bolt to the steering gear.

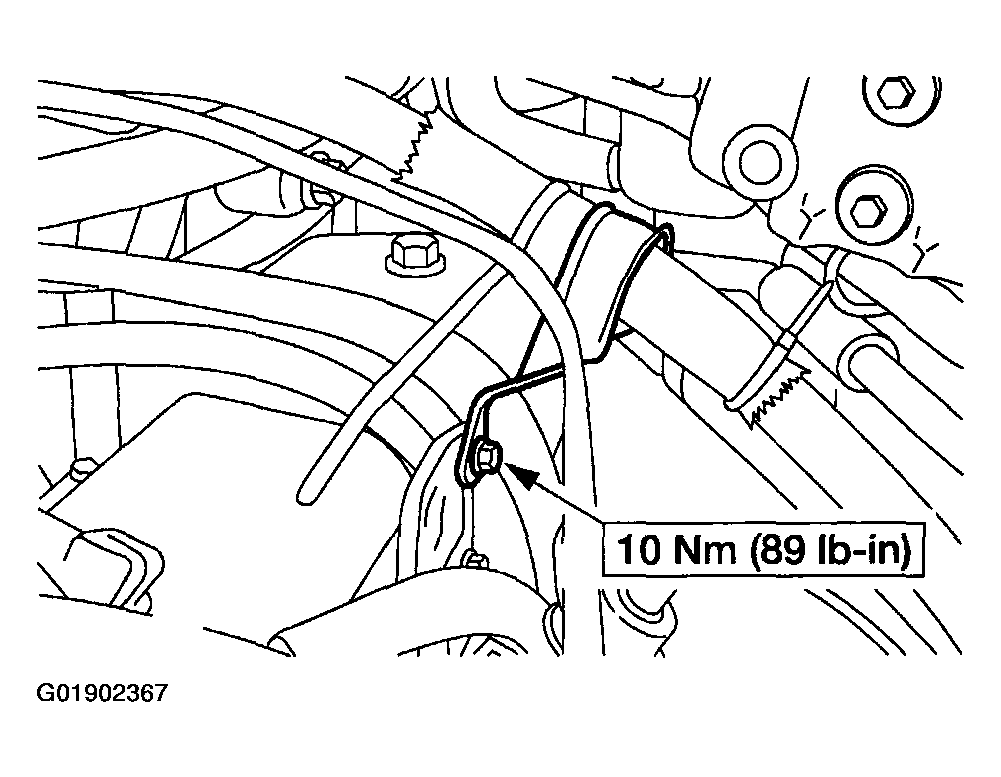

Fig 5: Connecting Power Steering Pressure & Return Lines To Steering Gear
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Make sure the O-ring seals are on the power steering pressure and return lines.
Connect the power steering pressure and return lines to the steering gear and install the bolt.
Raise the vehicle.

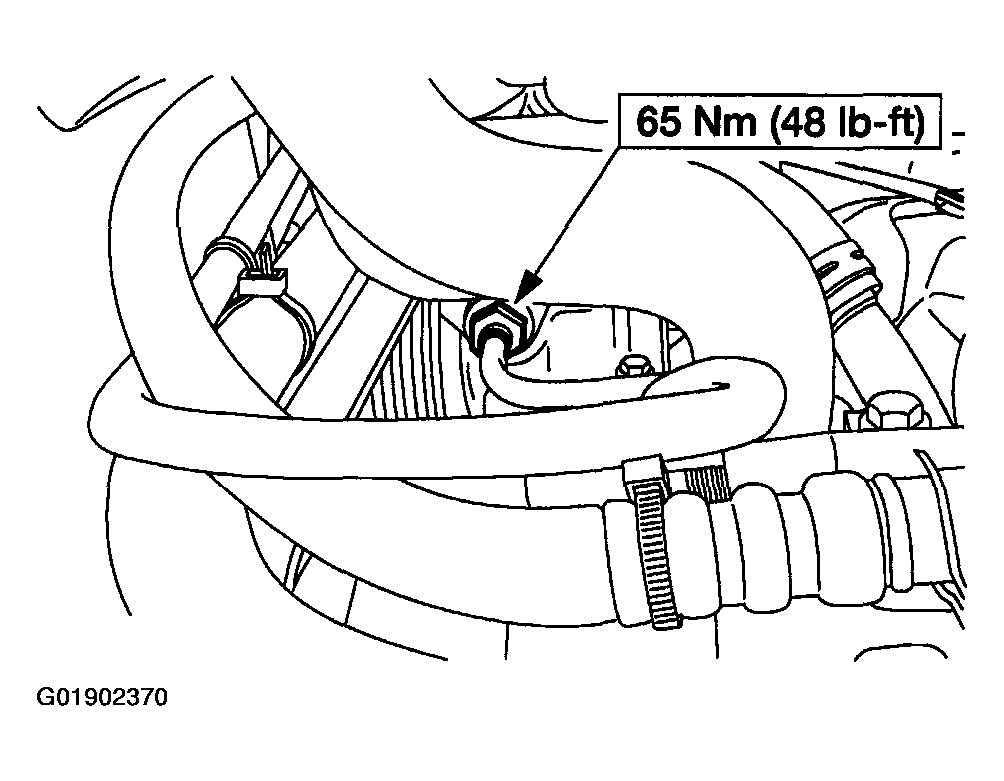

Fig 6: Connecting Power Steering Pressure Line To Power Steering Pump
Courtesy of MAZDA MOTORS CORP.
Connect the power steering pressure line to the power steering pump.
Lower the vehicle.
Fill, bleed and leak check the power steering system. Refer to FILL .
