Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

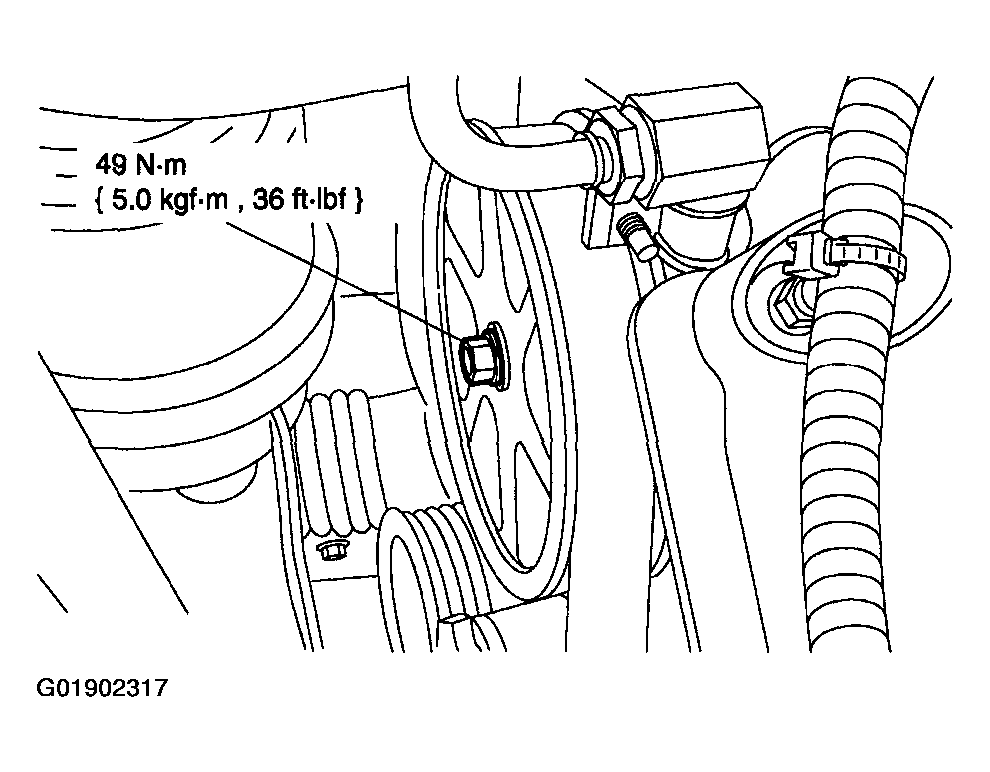

Fig 1: Loosening Power Steering Pump Pulley Bolt
G01902317Courtesy of MAZDA MOTORS CORP.
  1. Loosen the power steering pump pulley bolt.
  2. Remove the drive belt.

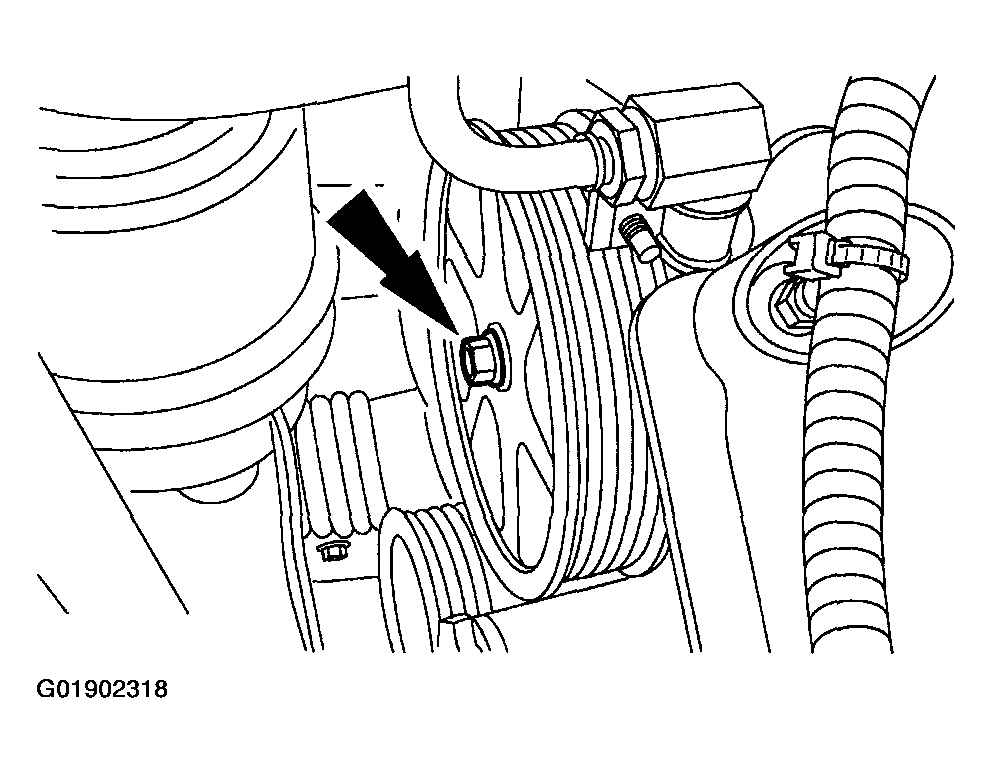

    Fig 2: Removing Bolt & Power Steering Pump Pulley
    G01902318Courtesy of MAZDA MOTORS CORP.
  3. Remove the bolt and the power steering pump pulley.
  4. To install, reverse the removal procedure.
